Lam Research VME-7671-421000 Original Industrial Spare 3VCCPU

Product Overview

Lam Research VME-7671-421000 Original Industrial Spare 3VCCPU: System Stability & Maintenance Value

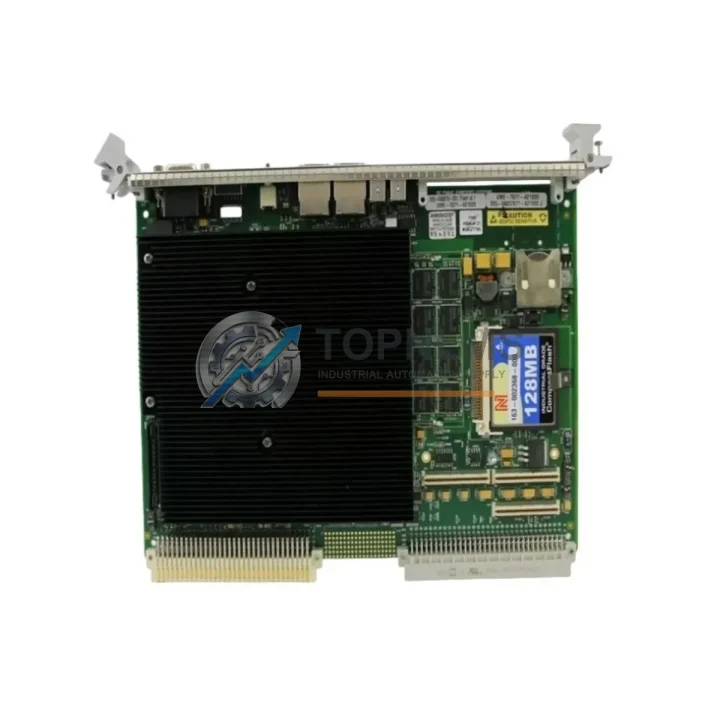

The Lam Research VME-7671-421000 is an original VME Bus CPU board from the 3VCCPU AHCT series, engineered for high-reliability semiconductor fabrication and industrial automation environments. Cross-referenced as 605-048878-001, with alternate part numbers 210000520, 210000422, and 9800032722, this board integrates the RH-11D-3001-E100AL-SP(N) encoder interface and is designed to sustain continuous, uninterrupted operation in VME-based control architectures. Sourcing a verified original spare before failure occurs is the single most effective strategy for protecting uptime in semiconductor and advanced industrial facilities.

Critical Technical Specs

Preventive Maintenance Strategy

In semiconductor fabrication and advanced industrial automation, the VME-7671-421000 CPU board sits at the heart of the machine’s control architecture. When planning a scheduled maintenance window or responding to an unplanned shutdown, experienced maintenance engineers know that replacing the CPU board in isolation rarely resolves all latent risks. A thorough inspection of the surrounding VME chassis ecosystem is essential to restoring full system confidence.

Begin with the VME backplane itself — inspect connector pins for oxidation, mechanical stress, and intermittent contact, as a degraded backplane can cause erratic CPU behavior that mimics board failure. Next, audit the VME power supply module supplying the +5V, ±12V rails; voltage ripple or marginal regulation is a leading cause of premature CPU board failure and should be measured under load before reinstalling any replacement board.

The RH-11D-3001-E100AL-SP(N) encoder integrated with this board communicates position and velocity data to the motion control loop. During replacement, verify encoder cable integrity and connector seating — a damaged encoder cable or worn encoder signal conditioner can immediately stress the new board’s input circuits. If the system uses a dedicated VME I/O module for digital or analog field I/O, inspect it for blown protection fuses and verify that field wiring terminal blocks are torqued to specification.

Communication continuity is equally critical. If the control system relies on a VME communication module (such as a SERCOS, PROFIBUS, or Ethernet fieldbus card) to coordinate with upstream process controllers or SCADA, confirm that the module firmware version is compatible with the replacement CPU board’s OS image. A mismatch here can cause silent data corruption that only manifests under production load.

For facilities running Lam Research etch or CVD platforms, the process chamber I/O interface board and RF match network controller card are frequently overlooked during CPU-level maintenance. Both components share the VME bus bandwidth and can exhibit degraded performance if the CPU board’s bus arbitration timing has drifted. Replacing the CPU board is an ideal opportunity to benchmark these subsystems.

Finally, review the UPS or DC power conditioning unit feeding the VME chassis. Aging capacitors in the power conditioning stage are a silent threat to CPU board longevity. Pairing a new VME-7671-421000 with a freshly serviced or replaced power conditioner maximizes the return on your spare parts investment and extends the effective service life of the entire control cabinet.

Maintaining a minimum stock of one verified spare VME-7671-421000 board — alongside critical companion components such as the VME power supply, encoder cable assembly, and I/O interface board — is the industry-standard approach to reducing mean time to repair (MTTR) in high-value semiconductor equipment. Facilities that pre-position spares at the cabinet level consistently achieve faster recovery from unplanned outages and lower total cost of ownership over the equipment lifecycle.

Strategic Replacement Solutions

The VME-7671-421000 is a direct, drop-in replacement for aging or failed 3VCCPU AHCT boards within the same Lam Research VME platform family. Because it retains the original hardware architecture and encoder interface, no re-engineering of the control cabinet wiring or software reconfiguration is required — the replacement board accepts the existing OS image and application software, dramatically reducing the skill level and time required for field installation.

For facilities managing end-of-life Lam Research equipment where OEM support has been discontinued, sourcing original spare boards from verified industrial distributors is the most cost-effective path to system longevity. Refurbished or counterfeit alternatives introduce unquantifiable risk into a process environment where a single unplanned outage can cost tens of thousands of dollars per hour. The VME-7671-421000 supplied by TOPNLMS is sourced from original manufacturing channels, individually tested under functional load conditions, and shipped with full traceability documentation.

Facilities transitioning from legacy VME-based control to modern PLC or PC-based architectures can use the VME-7671-421000 as a bridge solution — maintaining production continuity on existing equipment while the migration project is planned and budgeted. This approach eliminates the false choice between accepting unacceptable downtime risk and accelerating a capital-intensive platform upgrade before the business case is fully justified.

Support FAQ

Q1: Is the VME-7671-421000 a genuine original part or a remanufactured substitute?
All VME-7671-421000 boards supplied by TOPNLMS are original Lam Research manufactured components sourced through verified industrial supply channels. Each unit undergoes functional testing prior to shipment and is accompanied by a 12-month quality warranty covering manufacturing defects and functional failure under normal operating conditions.

Q2: How do I verify compatibility with my existing Lam Research VME control system?
Compatibility is confirmed by matching the primary part number (VME-7671-421000) and cross-reference numbers (605-048878-001, 210000520, 210000422, 9800032722) against your equipment’s bill of materials or the part number label on the installed board. If you require additional compatibility verification, contact our technical team at [email protected] with your equipment model and serial number.

Q3: What is the recommended inventory strategy for this board?
For facilities operating a single Lam Research VME-based platform, maintaining one spare VME-7671-421000 on-site is the minimum recommended posture. Facilities with multiple machines or critical process lines should consider a two-board buffer to cover simultaneous failures or extended lead times during peak demand periods. Spare boards should be stored in ESD-safe packaging in a climate-controlled environment and inspected annually.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Each board is powered up and subjected to functional I/O verification, bus communication testing, and encoder interface validation before packaging. The 12-month warranty covers failure due to manufacturing defects or functional degradation under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.
