LAM RESEARCH 853-131420-026 Original Industrial Spare Plasma Etch Compatible

Product Overview

LAM RESEARCH 853-131420-026 Original Industrial Spare Plasma Etch Compatible

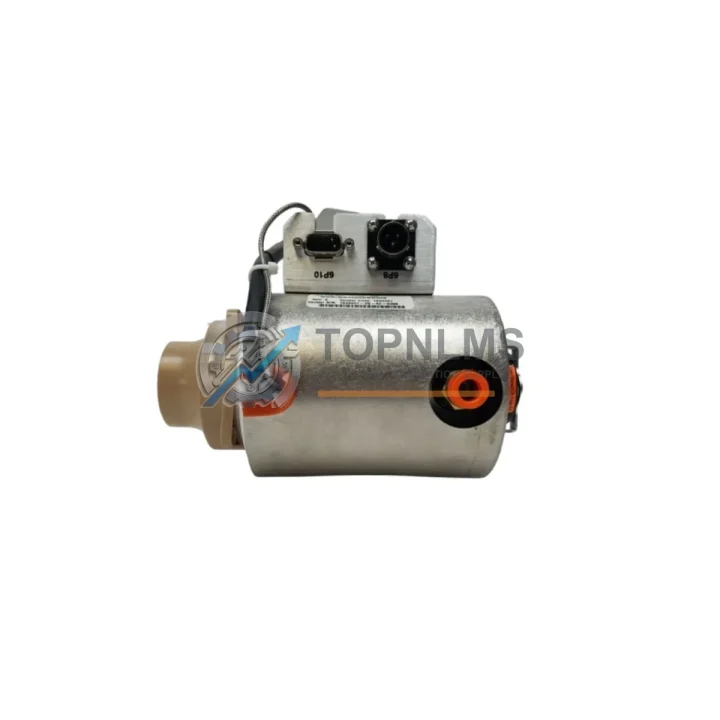

The LAM RESEARCH 853-131420-026 — also cross-referenced as 0190-49999 and S33-1830A-R — is a genuine original filter sensor assembly engineered for LAM Research Plasma Etch platforms. In semiconductor fabrication and advanced industrial process environments, unplanned downtime caused by a failed sensor assembly can cascade into hours of lost production and costly wafer scrap. Sourcing a verified original spare part with full traceability is not a luxury — it is a maintenance imperative.

At TOPNLMS, this assembly is held in managed inventory, pre-inspected before dispatch, and shipped with a 12-month quality warranty. Whether you are executing a scheduled preventive maintenance cycle, responding to an unplanned fault, or building a strategic buffer stock for a critical etch tool, the 853-131420-026 is available for immediate quotation and rapid fulfillment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A filter sensor assembly like the 853-131420-026 sits at the intersection of gas delivery integrity and process control feedback. When planning a preventive maintenance window on a LAM Research Plasma Etch tool, experienced process engineers know that replacing this assembly in isolation rarely reflects best practice. The surrounding subsystems must be evaluated concurrently to avoid repeat interventions.

During the same maintenance window, it is advisable to inspect and, where wear indicators are present, replace the LAM Research 853-131420-025 upstream filter body assembly, which works in tandem with the sensor unit to maintain gas-path cleanliness. The 0190-49999 series pressure transducer modules — often co-located in the same gas panel — should be leak-tested and recalibrated. If the etch tool uses a LAM Research 716-131420 series manifold block, its O-ring seals and valve actuators warrant inspection at the same interval.

On the electrical and control side, the sensor assembly interfaces with the tool’s I/O subsystem. Technicians should verify the integrity of the associated LAM Research 810-series I/O interface boards and confirm that signal cables connecting the sensor to the process controller show no signs of insulation degradation or connector corrosion. The LAM Research 853-series RF match network components, if present in the same chamber module, should also be logged for condition assessment during this cycle.

For facilities running multiple etch chambers, a structured spare parts buffer is strongly recommended. Holding one unit of the 853-131420-026 per two active chambers, alongside buffer stock of the LAM Research 716-131420 valve assembly, 0190-series MFC (mass flow controller) units, and relevant S33-series sensor modules, provides meaningful protection against extended unplanned outages. The cost of a single day of unscheduled downtime on a plasma etch tool typically exceeds the cost of a full preventive spare kit by an order of magnitude.

Additionally, facilities should maintain a documented replacement log for LAM Research 853-series filter and sensor assemblies across all chambers. Tracking mean time between replacements enables data-driven maintenance scheduling and supports procurement planning for the next fiscal cycle.

Strategic Replacement Solutions

The 853-131420-026 is a direct OEM replacement for aging or failed filter sensor assemblies on LAM Research Plasma Etch platforms. As semiconductor fabs extend the operational life of installed etch tools beyond their original design horizon — a common strategy in mature-node and specialty process facilities — the availability of original spare parts becomes a critical supply chain concern.

TOPNLMS specializes in sourcing and supplying original and OEM-equivalent components for legacy and current-generation LAM Research equipment. The 853-131420-026 is fully compatible with the original mounting interface, electrical connector pinout, and process control software parameters of the Plasma Etch platform, requiring no firmware modification or mechanical adaptation for installation.

For facilities transitioning from older LAM Research Exelan or 4520XL etch platforms to current Versys or Kiyo-generation tools, our technical team can advise on cross-compatibility and identify equivalent assemblies where direct part number substitution is not available. This reduces the risk of procuring incompatible components and shortens the time from purchase order to successful installation.

All units dispatched by TOPNLMS are subject to pre-shipment functional testing. Documentation including test records and, where available, original manufacturer certificates of conformance, is provided upon request. Shipments are packed in ESD-safe materials appropriate for sensitive semiconductor process components.

Support FAQ

Q1: What does the 12-month warranty cover for the LAM RESEARCH 853-131420-026?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and any discrepancy between the shipped unit and its stated specification. It runs from the date of shipment. In the event of a warranty claim, TOPNLMS will arrange replacement or refund after technical review. The warranty does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical mishandling on-site.

Q2: How is the unit tested before shipment?
Each 853-131420-026 unit undergoes a pre-shipment inspection protocol that includes visual examination for physical integrity, electrical continuity verification across all connector pins, and functional bench testing where applicable. Units that do not pass inspection are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is this assembly compatible with all LAM Research Plasma Etch platform variants?
The 853-131420-026 is designed for LAM Research Plasma Etch platforms and is cross-referenced with 0190-49999 and S33-1830A-R. Compatibility should be verified against your specific tool model and BOM revision before installation. TOPNLMS technical support can assist with compatibility verification if you provide your tool model number and current installed part number. Contact us at [email protected] before ordering if you have any uncertainty.

Q4: What is the recommended inventory strategy for this part?
For facilities operating one to three LAM Research Plasma Etch chambers, maintaining one unit of the 853-131420-026 as on-hand buffer stock is recommended. For larger multi-chamber fabs, a ratio of one spare per two active chambers is a practical baseline. Given the lead time sensitivity of semiconductor process equipment and the potential production impact of a sensor assembly failure, proactive inventory management for this component class is strongly advisable. TOPNLMS can support blanket order arrangements and scheduled replenishment for high-volume customers.
