LAM Research 810-800256-004 Replacement for 810 Series

Product Overview

LAM Research 810-800256-004: Seamless Replacement & Upgrade for 810 Series Control Systems

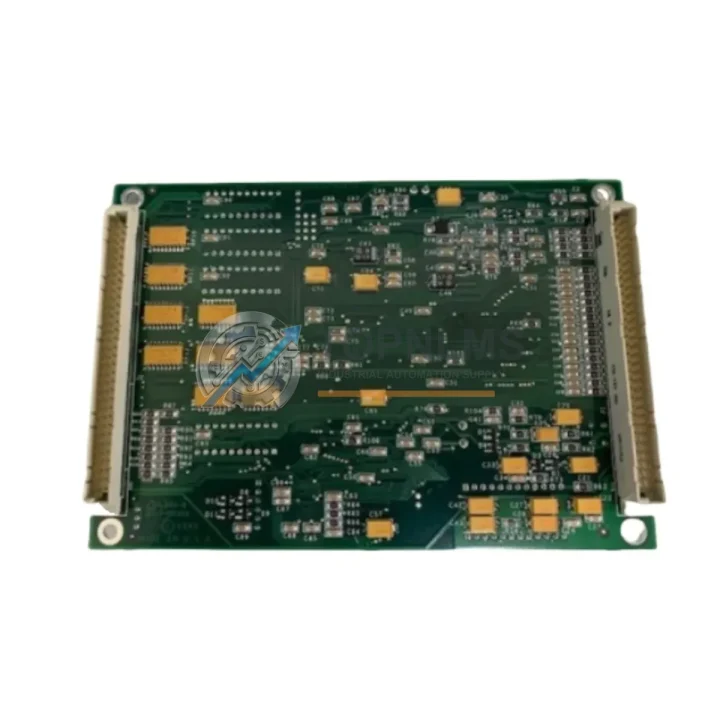

The LAM Research 810-800256-004 Control Module Card is a critical component within the LAM Research 810 Series semiconductor process control architecture. As original equipment reaches end-of-life or becomes increasingly difficult to source through OEM channels, facilities engineering teams and procurement specialists face mounting pressure to identify verified replacement and upgrade pathways that preserve system uptime, protect existing wiring infrastructure, and avoid costly re-qualification cycles.

TOPNLMS supplies the 810-800256-004 as a direct drop-in replacement module, fully tested prior to shipment and backed by a 12-month warranty. Whether your facility is executing a scheduled preventive maintenance swap, responding to an unplanned card failure, or executing a broader control system modernization initiative, this module is stocked and ready to ship from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 810-800256-004 replacement or system modernization project rarely involves a single card in isolation. In practice, field engineers working on LAM Research 810 Series platforms encounter a cluster of interdependent components that must be evaluated together to ensure a smooth transition with minimal downtime.

During the card extraction and re-seating process, the 810 Series backplane and card cage assembly should be inspected for connector wear and oxidation — a common finding on systems that have been in continuous operation for five or more years. If the backplane shows signs of degradation, a coordinated replacement of the backplane alongside the control module card eliminates the risk of intermittent contact faults after the new card is installed.

The LAM Research 810 Series power supply module is another component that frequently surfaces during control module replacement projects. Because the 810-800256-004 draws regulated DC power from the rack PSU, any marginal voltage regulation or ripple on the supply rail can cause the new card to exhibit erratic behavior that is easily misdiagnosed as a card defect. Verifying PSU output under load before and after the swap is standard practice.

On the I/O side, the 810 Series analog and digital I/O expansion cards that share the same card cage communicate with the control module over the proprietary LAM backplane bus. When replacing the 810-800256-004, it is advisable to audit the I/O card firmware revisions to confirm compatibility with the replacement module’s expected protocol handshake. In many retrofit scenarios, customers also take the opportunity to replace aging 810 Series digital output cards and analog input cards that are approaching their mean time between failures threshold.

Communication integrity between the 810 Series control module and the host process controller — often a LAM Research TCP/IP or RS-232/RS-485 gateway module — should be validated after the card swap using the system’s built-in diagnostic routines. If the facility is simultaneously upgrading the host controller, the gateway module may also require a firmware update to maintain handshake compatibility with the replacement 810-800256-004.

For facilities undertaking a broader migration from legacy LAM Research 810 Series architecture toward a more modern distributed control platform, the 810-800256-004 serves as an interim stabilization component. It allows the existing process recipes, interlock logic, and I/O mapping to remain intact while the engineering team plans the phased migration of 810 Series HMI panels, process controller nodes, and field instrument signal conditioners to the target platform. Signal isolators and terminal block adapters are commonly used during this transition phase to bridge legacy wiring to new I/O modules without re-pulling field cables.

TOPNLMS maintains stock of multiple 810 Series components to support complete system-level procurement in a single purchase order, reducing lead time complexity and simplifying incoming inspection workflows.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when installing the 810-800256-004?
A: Yes. The 810-800256-004 uses the same connector pinout and terminal block interface as the original module it replaces within the 810 Series card cage. Existing field wiring can be retained without modification. Verify wire labeling and confirm I/O channel assignments against your as-built drawings before power-on.

Q: Do I need to rewrite or re-download my process programs after the swap?
A: In most cases, no. The 810-800256-004 is designed to operate within the existing 810 Series software environment. Existing recipe files, sequence programs, and interlock logic remain valid. However, if the outgoing card had a different firmware revision, a firmware alignment step may be required — consult your system’s maintenance manual for the recommended procedure.

Q: What communication protocols does the 810-800256-004 support?
A: The module communicates over the proprietary LAM Research 810 Series backplane bus. External host communication is handled by the system’s gateway or communication module (e.g., RS-232, RS-485, or TCP/IP interface card), which is not affected by the control module card replacement.

Q: Will the replacement card fit in the same physical slot?
A: Yes. The 810-800256-004 shares the same card form factor and slot pitch as the original 810 Series control module cards. No mechanical modification to the card cage or enclosure is required. Confirm the slot address DIP switch or jumper setting matches your system’s I/O map before insertion.

Q: How do I verify the replacement card is functioning correctly after installation?
A: Power on the system and run the 810 Series built-in self-test (BIST) routine. Confirm all I/O channels report expected status in the HMI or host controller diagnostic screen. Validate process interlocks with a dry-run cycle before resuming production. TOPNLMS provides pre-shipment test reports upon request.

Q: What if my system uses multiple 810-800256-004 cards across different process chambers?
A: TOPNLMS can fulfill multi-unit orders from current stock. Contact us with your quantity requirement and preferred delivery schedule. Batch procurement reduces per-unit cost and ensures all replacement cards come from the same production lot, simplifying traceability documentation.

Warranty Assurance

Every LAM Research 810-800256-004 Control Module Card supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification, visual inspection for physical defects, and confirmation of part number and revision marking against the order specification.

If a warranty claim arises within the coverage period, TOPNLMS will provide a replacement unit or issue a credit at our discretion, subject to inspection of the returned item. Our technical support team is available to assist with installation questions, compatibility verification, and troubleshooting during the warranty period.

Orders are processed and dispatched from our Xiamen facility. Standard lead time for in-stock items is 1–3 business days. Expedited shipping options are available for urgent replacement requirements. All shipments include a packing list, test report (upon request), and commercial invoice for customs clearance.

TOPNLMS is committed to supporting semiconductor equipment maintenance teams with reliable, traceable, and warranted replacement components that minimize unplanned downtime and protect capital equipment investment.
