LAM Research 810-494010-001 Ruggedized I/O Interlock Module

Product Overview

LAM Research 810-494010-001 Ruggedized I/O Interlock Module: Industrial Resilience for Harsh Semiconductor Environments

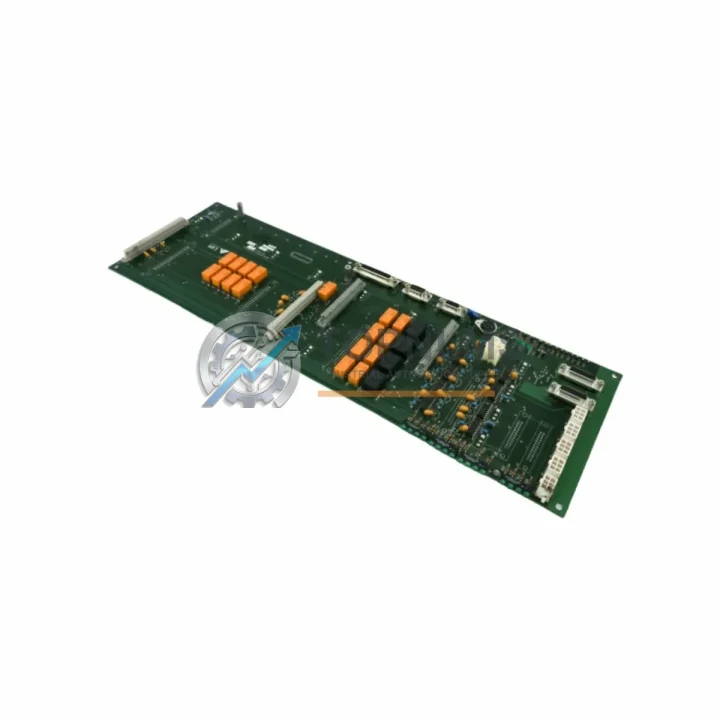

The LAM Research 810-494010-001 Gas Box I/O Interlock PCB Assembly (A6 / MQMA022P2B) is a precision-engineered safety and control interface module built for continuous, fault-tolerant operation in the most demanding semiconductor fabrication environments. Designed to LAM Research’s stringent internal quality standards, this ruggedized PCB assembly serves as the critical interlock logic backbone within gas delivery and process chamber systems — where signal integrity, thermal stability, and electromagnetic immunity are non-negotiable requirements for both process yield and personnel safety.

In high-throughput wafer fabrication facilities operating 24/7, every interlock node in the system is a potential single point of failure. The 810-494010-001 is engineered to maintain stable, deterministic logic-level communication between the gas box subsystem and the main process controller even under conditions of elevated ambient temperature, mechanical vibration from adjacent vacuum pumps and robotic handlers, and persistent electromagnetic interference generated by RF plasma generators, high-current power rails, and switching power supplies. Its ruggedized PCB construction — featuring conformal coating, reinforced solder joints, and shielded signal traces — ensures that interlock logic remains immune to transient noise events that could otherwise trigger false trips or, more critically, fail to trigger a required safety shutdown when reactive process gases such as HF, Cl₂, or NF₃ are present in the chamber environment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 810-494010-001 operates as one node in a tightly integrated safety and control architecture. Within a LAM Research process tool, this interlock PCB works in concert with the LAM Research 810-081558-001 RF Match Controller Board, which manages impedance matching for the plasma source, and the 810-017584-001 Process Control Interface PCB, which aggregates sensor inputs from the chamber environment. Together, these boards form the backbone of the tool’s real-time process monitoring and protection loop.

On the gas delivery side, the interlock logic managed by the 810-494010-001 directly interfaces with mass flow controller (MFC) driver boards such as the LAM Research 810-494009-001 Gas Box MFC Driver PCB, ensuring that any interlock fault condition immediately halts gas flow to prevent hazardous accumulation in the process chamber. The module also communicates upstream with the 810-494011-001 Gas Panel I/O PCB, which handles valve actuation signals and pressure transducer inputs from the gas panel manifold — creating a closed-loop safety chain that responds in milliseconds to any deviation from safe operating parameters.

For facilities running multi-chamber cluster tools, the interlock chain extends to the LAM Research 810-081559-001 Cluster Tool Interface Board, which coordinates chamber-to-chamber safety states and prevents cross-contamination events during wafer transfer sequences. Power integrity for all these PCB assemblies is maintained by the LAM Research 810-494005-001 DC Power Distribution Board, which provides regulated, noise-filtered supply rails to each logic card in the gas box enclosure — a critical function in environments where power quality directly affects interlock reliability.

Facilities managing preventive maintenance programs will also find value in stocking the 810-494008-001 I/O Expansion PCB and the 810-494012-001 Interlock Relay Driver Board alongside the 810-494010-001, as these three assemblies share a common replacement cycle in high-utilization etch tools. Maintaining a complete interlock PCB kit minimizes mean time to repair (MTTR) and supports continuous production without waiting for emergency procurement cycles that can extend unplanned downtime by days or weeks.

Application in Critical Infrastructure

In advanced semiconductor fabrication, the 810-494010-001 is deployed in LAM Research etch and deposition tools operating continuously in Class 1–100 cleanroom environments. Any interlock failure in this context can result in a process abort, wafer loss, or — in worst-case scenarios involving reactive gases — a safety incident requiring facility evacuation. The module’s robust interlock architecture is specifically designed to prevent both false trips (which reduce yield) and missed trips (which create safety hazards), making it a dual-function asset for both productivity and compliance.

In flat panel display (FPD) manufacturing, similar gas box interlock architectures are used in large-area PECVD and dry etch systems. Facilities transitioning from legacy LAM Research tools to newer platforms often retain 810-series PCB assemblies as validated spare parts, given their proven field reliability and the high cost of unplanned downtime on Gen 8+ substrates where a single lost production run can represent significant financial exposure.

In solar cell and compound semiconductor production, where MOCVD and MBE systems operate with highly toxic precursor gases, the interlock integrity provided by assemblies like the 810-494010-001 is both a regulatory requirement and an operational necessity. Procurement teams in these facilities prioritize sourcing from suppliers who can provide documented test records and warranty coverage — both of which TOPNLMS provides as standard practice for every unit shipped.

For research institutions and university fab labs operating LAM Research tools on reduced maintenance budgets, the availability of tested, warranted spare PCB assemblies from TOPNLMS provides a cost-effective alternative to OEM direct procurement, with equivalent functional performance and full traceability documentation to satisfy internal quality management requirements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the LAM Research 810-494010-001?
The 12-month warranty covers all functional failures attributable to component defects or workmanship issues under normal operating conditions. If the module fails to perform its designed interlock and I/O functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery and is supported by our post-sale technical team.

Q2: How is each unit tested before shipment?
Every 810-494010-001 unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, continuity testing of all I/O signal paths, power-on functional verification, and comparison against known-good reference parameters. Units that do not pass all test stages are quarantined and not offered for sale. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 810-494010-001 compatible with all LAM Research tool generations that reference this part number?
Yes. The 810-494010-001 is an OEM-specified assembly compatible with all LAM Research process tools that reference this part number in their bill of materials (BOM), including Kiyo, Flex, Versys, and 2300 series platforms. If you are uncertain whether this assembly is the correct replacement for your specific tool configuration, contact TOPNLMS with your tool model and serial number for confirmation before ordering.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS maintains ongoing inventory of high-demand LAM Research PCB assemblies and can support blanket purchase orders, scheduled releases, and consignment arrangements for facilities with predictable maintenance cycles. For long-term supply agreements or volume pricing, contact our team directly to discuss terms and lead time commitments.
