LAM RESEARCH 810-227611-003 Replacement for Versys Series

Product Overview

LAM RESEARCH 810-227611-003 Replacement for Versys Series: Seamless Transition & Legacy System Compatibility

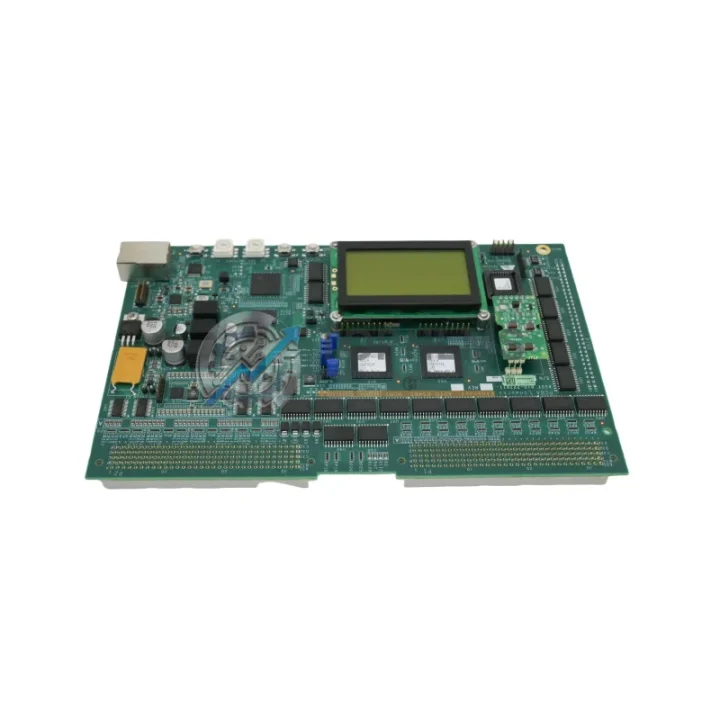

The LAM RESEARCH 810-227611-003 ADIO RS485 Board is a critical I/O communication module used in LAM RESEARCH Versys and Exelan series plasma etch and CVD systems. As semiconductor fabs face increasing pressure to extend equipment lifecycles while managing the obsolescence of legacy control hardware, sourcing a verified replacement for the 810-227611-003 has become a top priority for process engineers and procurement teams worldwide.

TOPNLMS supplies the 810-227611-003 as a direct drop-in replacement or upgrade solution for facilities transitioning away from end-of-life (EOL) control boards. Whether your facility is performing a scheduled preventive maintenance swap, recovering from an unplanned board failure, or executing a broader system modernization initiative, this module is stocked, tested, and ready to ship.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 810-227611-003 ADIO RS485 Board is rarely an isolated action. In most Versys and Exelan system retrofit scenarios, the board swap is part of a broader control architecture review. During the upgrade process, field engineers commonly address adjacent components to ensure the entire I/O and communication chain is restored to full operational integrity.

In Versys series systems, the ADIO RS485 Board interfaces directly with the system’s main controller backplane. If the backplane or chassis card cage shows signs of wear or corrosion at the edge connectors, it is advisable to inspect and potentially replace the LAM RESEARCH system backplane assembly concurrently. Similarly, the RS485 communication bus connects the ADIO board to the chamber process controller — any degradation in the RS485 signal cable harness or the serial communication interface module can cause intermittent I/O faults that mimic a board failure.

For facilities running Exelan series etch tools, the 810-227611-003 often works in conjunction with the LAM RESEARCH RF match network controller and the endpoint detection I/O module. A complete system health check during the board replacement window should include verification of the RF generator interface signals routed through the ADIO board. If the RF match controller board or the plasma endpoint detection module is also approaching EOL, sourcing replacements simultaneously reduces future unplanned downtime.

The RS485 protocol used by the 810-227611-003 is also shared by several other subsystem controllers in the Versys platform, including the gas delivery system MFC (mass flow controller) interface board and the pressure control valve I/O module. If your facility is experiencing intermittent RS485 bus errors, it is worth inspecting the termination resistors and the RS485 bus repeater module in addition to replacing the ADIO board itself.

For 2300 series platform users, the ADIO board replacement is frequently paired with an upgrade of the chamber I/O terminal block assembly and the associated signal isolation module. These components ensure clean signal separation between the high-voltage RF environment and the low-voltage digital I/O logic handled by the 810-227611-003. Replacing the signal isolator alongside the ADIO board eliminates a common source of ground loop interference that can cause false I/O triggers during plasma processing.

In control cabinet modernization projects, the 810-227611-003 replacement is often scheduled alongside the inspection of the system’s 24VDC power distribution module and the UPS (uninterruptible power supply) for the control electronics rack. Ensuring stable, clean power delivery to the ADIO board is essential for reliable RS485 communication, particularly in high-EMI fab environments.

Retrofit Guidance FAQ

Q: Does replacing the 810-227611-003 require any wiring changes?
A: No. The 810-227611-003 is a direct pin-compatible replacement for earlier ADIO board revisions. The OEM cable harness connects without modification. Ensure ESD precautions are followed during installation.

Q: Will the existing LAM RESEARCH software and recipes recognize the new board?
A: In the vast majority of cases, yes. The 810-227611-003 is firmware-compatible with the existing Versys and Exelan system software. No recipe modification or re-teaching is required. In rare cases involving major software version differences, a board initialization sequence may be needed — consult your LAM RESEARCH service documentation.

Q: Is the RS485 communication protocol fully backward compatible?
A: Yes. The RS485 serial interface on the 810-227611-003 operates at the same baud rate and protocol framing as earlier revisions. No changes to the RS485 bus termination or communication parameters are required.

Q: How much physical space does the board require in the chassis?
A: The 810-227611-003 occupies the same chassis slot as the original ADIO board. No additional space, bracket modification, or chassis alteration is required. The form factor is identical to all prior revisions.

Q: What commissioning steps are recommended after installation?
A: After seating the board and restoring system power, perform a full I/O diagnostic from the LAM RESEARCH system controller interface. Verify all analog input/output channels and digital I/O points are responding correctly before resuming process operations. Document the board serial number and installation date for maintenance records.

Q: Can this board be used as a spare/standby unit?
A: Yes. Many facilities purchase one or more 810-227611-003 units as cold-standby spares to minimize mean time to repair (MTTR) in the event of a future board failure. TOPNLMS can supply multiple units with consistent firmware revision levels upon request.

Warranty Assurance

Every 810-227611-003 ADIO RS485 Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification check to confirm board integrity, connector condition, and basic I/O signal response. Units that do not meet our outgoing quality standard are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched with priority shipping to minimize impact on your production schedule.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is available upon request. We ship globally from Xiamen, China, with DHL, FedEx, and UPS express options available for time-critical orders.

For volume orders or standing purchase agreements for the 810-227611-003 and related LAM RESEARCH spare parts, please contact our sales team directly to discuss pricing, lead times, and consignment stocking arrangements.
