Lam Research 810-068158-014 Original Industrial Spare Node Compatible

Product Overview

Lam Research 810-068158-014 Original Industrial Spare Node Compatible: Securing Semiconductor System Stability

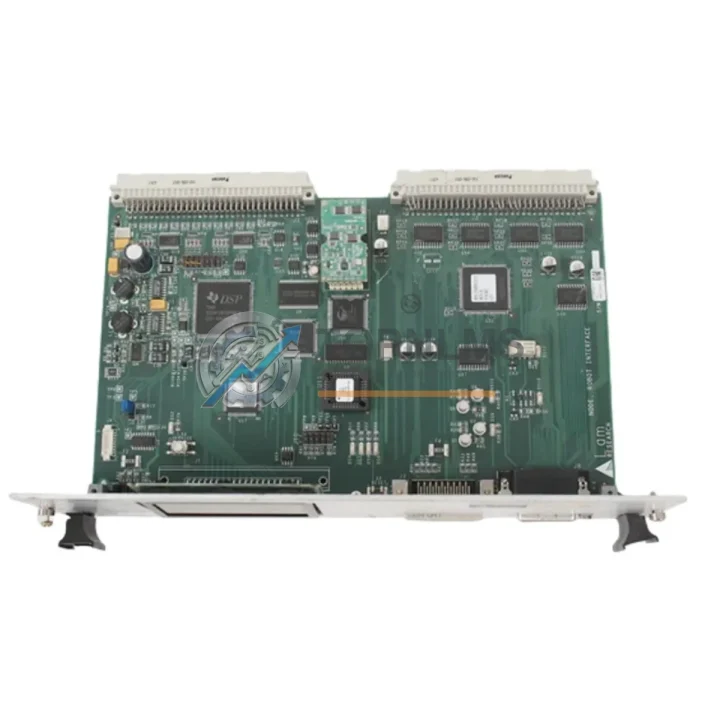

The Lam Research 810-068158-014 Node Robot Interface Board is a critical original spare component engineered for semiconductor wafer transfer control systems. In high-throughput fab environments, the reliability of every interface board directly determines wafer yield, process continuity, and overall equipment effectiveness (OEE). Sourcing a verified original replacement for the 810-068158-014 is not merely a maintenance decision — it is a strategic investment in system uptime and long-term operational stability.

This board serves as the communication and control bridge between the Node robot arm assembly and the host process controller within Lam Research etch and deposition platforms. When this interface board degrades or fails, wafer transfer sequences halt, triggering unplanned downtime that can cost tens of thousands of dollars per hour in a production fab. Keeping a qualified spare on the shelf is the single most effective mitigation against this risk.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance review of your Lam Research Node platform should never be limited to a single component. The 810-068158-014 Robot Interface Board operates within a tightly integrated motion and control architecture, and its performance is directly influenced by the health of surrounding assemblies. During any planned downtime or corrective maintenance event involving this board, experienced field engineers consistently recommend a concurrent inspection of the following related components.

The Node robot arm assembly and its associated end-effector blade should be inspected for wear, contamination, and positional calibration drift — a degraded interface board often masks underlying mechanical issues that will resurface after board replacement. Simultaneously, the robot controller backplane and chassis power supply module warrant voltage rail verification, as power instability is a leading cause of interface board failure in high-cycle environments.

The I/O communication cable harness connecting the robot interface board to the process module controller is a frequent wear point; inspect for pin corrosion, connector seating, and shielding integrity. The process module controller board itself should be checked for firmware version compatibility with the replacement 810-068158-014 to avoid initialization errors post-swap. In systems running multiple process modules, the cluster tool host controller and its communication interface card should also be verified for signal integrity.

For facilities practicing predictive maintenance, it is advisable to simultaneously review the wafer presence sensor assembly and optical alignment sensor module — both interact directly with the robot transfer sequence managed by this board. Finally, the vacuum system solenoid valve driver board and atmospheric transfer module (ATM) interface card, where applicable, complete the critical spare inventory picture for a Node platform maintenance cycle. Addressing these components together during a single maintenance window dramatically reduces the probability of a secondary unplanned outage within the following 90-day operational period.

Strategic Replacement Solutions

The Lam Research 810-068158-014 is a legacy-generation Node platform component. As OEM new production of this part number has been discontinued or placed on extended lead time, the availability of verified original spare units on the secondary market becomes the primary supply chain lever for fabs still operating Node-generation equipment.

Replacing a failed or degraded 810-068158-014 with a non-original or incompatible substitute carries significant risk: firmware handshake failures, robot positional errors, and wafer drop events are all documented consequences of interface board mismatches in this platform family. Using an original-specification replacement eliminates these risks and preserves the validated process recipe performance your team has established.

For facilities managing end-of-life equipment, maintaining a buffer stock of one to two units of the 810-068158-014 is a recognized best practice. The cost of a single wafer loss event or an unplanned 24-hour tool downtime far exceeds the carrying cost of a qualified spare on the shelf. Our pre-shipment testing protocol verifies board functionality against known-good reference parameters before dispatch, giving your maintenance team confidence that the replacement unit will perform correctly on first installation.

Each unit ships in ESD-safe anti-static packaging with a detailed inspection report. Worldwide logistics options include standard air freight and expedited courier services to support emergency maintenance scenarios. All units are covered by a 12-month quality warranty from the date of shipment.

Support FAQ

Q1: Is the 810-068158-014 compatible with all Node platform configurations?
The 810-068158-014 is designed for Lam Research Node series robot interface applications. Compatibility depends on your specific platform revision and controller firmware version. We recommend providing your tool serial number or platform revision code when ordering so our technical team can confirm fit before shipment.

Q2: What does the 12-month warranty cover?
The warranty covers functional defects identified under normal operating conditions for a period of 12 months from the shipment date. Units that fail due to manufacturing defects or component failure within this period are eligible for replacement or refund. Physical damage caused by improper installation or ESD mishandling is excluded.

Q3: How is the board tested before shipment?
Each 810-068158-014 unit undergoes a pre-shipment functional verification process that checks board power-on behavior, communication interface continuity, and key signal outputs against reference specifications. A test report is available upon request and can be included with the shipment documentation.

Q4: What is the recommended inventory strategy for this part?
For fabs operating one to three Node platform tools, maintaining a minimum of one spare 810-068158-014 on-site is recommended. For larger fleets or facilities with aggressive uptime SLAs, a two-unit buffer provides additional protection against concurrent failures or extended resupply lead times. Given the secondary-market availability dynamics of this part number, early procurement is advisable.
