LAM RESEARCH 715-032760-106 Replacement for Versys/Kiyo

Product Overview

LAM RESEARCH 715-032760-106 Replacement for Versys/Kiyo: Smooth Transition & Legacy System Compatibility

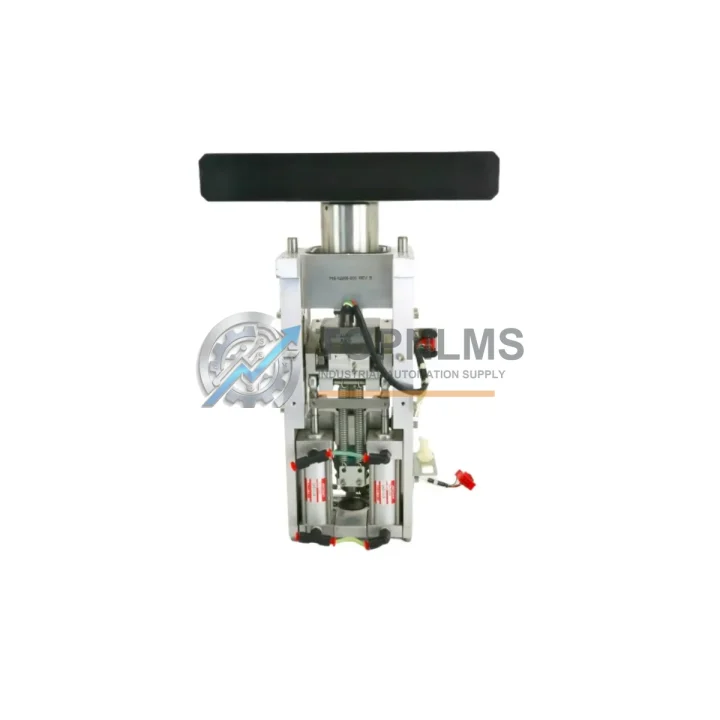

When a LAM RESEARCH Versys or Kiyo etch system experiences gate valve drive failure, unplanned downtime can cascade across an entire fab line. The 715-032760-106 Inner Gate Valve Drive Assembly is a direct-fit, drop-in replacement engineered to restore chamber isolation performance without requiring mechanical rework, re-qualification of the process recipe, or modification of the existing vacuum interlock wiring harness. Whether you are retiring an aging Versys 2300 platform or maintaining a Kiyo 45 series chamber in extended production, this assembly provides a validated upgrade path that minimizes mean time to repair (MTTR) and protects process continuity.

The 715-032760-106 interfaces directly with the standard LAM RESEARCH gate valve actuator bracket and retains the original bolt pattern, pneumatic port orientation, and sensor flag geometry. Technicians familiar with the legacy 715-032760-105 or earlier 715-032760-100 revisions will find the installation procedure essentially unchanged: disconnect the pneumatic supply lines, remove the four M5 fasteners securing the drive housing, slide out the worn assembly, and seat the replacement. No shimming or custom tooling is required. The internal drive mechanism has been updated with a reinforced cam follower and upgraded bearing race that addresses the wear pattern commonly observed after 200,000+ actuation cycles on high-throughput etch chambers.

Electrical integration is equally straightforward. The open/closed position sensors use the same 4-pin M8 connector standard found across the Versys and Kiyo platform families, meaning the existing cable harness from the LAM RESEARCH 853-049200-001 I/O interface board connects without modification. Chamber interlock logic programmed in the system’s PLC or motion controller does not require re-parameterization; the sensor output timing and signal polarity are preserved from the original specification. If your facility runs a distributed I/O architecture using a LAM RESEARCH 810-049100-001 remote I/O node, the node’s address mapping and diagnostic registers remain valid after the swap.

Pneumatic supply requirements are identical to the legacy assembly: 80–100 psi clean dry air or nitrogen, routed through the existing SMC VQ1000-series solenoid valve manifold typically mounted on the chamber utility panel. No regulator resizing or flow-rate recalibration is needed. The actuator stroke speed and end-of-travel cushioning are factory-set to match the original LAM RESEARCH specification, preserving the gate valve’s soft-close behavior that protects the elastomer seat and the chamber liner from impact damage.

For facilities executing a broader Versys-to-Kiyo migration or consolidating multiple chamber generations onto a unified spare-parts inventory, the 715-032760-106 is compatible across both platform families. This cross-compatibility simplifies procurement: a single line item covers gate valve drive replacement needs for both tool types, reducing the number of unique part numbers held in the fab’s critical-spare inventory. Paired with a LAM RESEARCH 716-108888-001 gate valve seat assembly and a 716-108889-001 elastomer seal kit, a complete gate valve overhaul can be completed during a scheduled PM window without waiting for multiple separate shipments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A gate valve drive replacement rarely occurs in isolation. During the same PM window, many engineers take the opportunity to address adjacent wear items and communication infrastructure. The LAM RESEARCH 716-108888-001 gate valve seat assembly and 716-108889-001 elastomer seal kit are natural companions to the 715-032760-106, completing a full gate valve overhaul in a single intervention. If the chamber’s pneumatic solenoid manifold is approaching its own service interval, the SMC VQ1101Y-5 solenoid valve is a widely stocked replacement that maintains the same port geometry and coil voltage as the original manifold block.

For facilities upgrading the broader process control architecture alongside the mechanical PM, the LAM RESEARCH 810-049100-001 remote I/O node provides a straightforward path to consolidating distributed sensor and actuator signals onto a modern fieldbus backbone. Where the legacy system relied on point-to-point wiring between the gate valve sensors and the main controller rack, the remote I/O node aggregates those signals over EtherNet/IP or DeviceNet, reducing cable count in the chamber utility chase and simplifying future troubleshooting. The LAM RESEARCH 853-049200-001 I/O interface board remains compatible throughout this transition, preserving the existing wiring harness investment.

Chamber-level power distribution should also be reviewed during a gate valve overhaul. The LAM RESEARCH 810-081234-001 DC power distribution module supplies the 24 VDC rail that feeds both the gate valve solenoid and the position sensors; a module showing voltage ripple or thermal stress is a common root cause of intermittent gate valve faults that are misdiagnosed as mechanical failures. Replacing the power module alongside the drive assembly eliminates this variable from post-PM troubleshooting. Similarly, the LAM RESEARCH 716-034500-001 chamber liner assembly is frequently inspected and replaced during gate valve service, since liner removal is required to access the valve seat — combining both tasks in one scheduled outage avoids a second chamber break.

Finally, for facilities managing a mixed fleet of Versys and Kiyo tools, maintaining a small buffer stock of the 715-032760-106 alongside a LAM RESEARCH 716-108890-001 gate valve body assembly provides comprehensive coverage for both scheduled PM and unplanned corrective maintenance events, supporting a proactive spare-parts strategy that keeps critical chambers available for production.

Retrofit Guidance FAQ

Q: Do I need to re-teach the gate valve open/closed positions after installing the 715-032760-106?
A: No. The sensor flag geometry and actuator stroke length are identical to the legacy assembly. The position thresholds stored in the chamber controller’s recipe parameters remain valid without adjustment.

Q: Is the pneumatic tubing connection compatible with the existing push-to-connect fittings on the utility panel?
A: Yes. The G1/8 port accepts the same 6 mm OD push-to-connect fittings used on the legacy assembly. No adapters or thread-seal tape changes are required.

Q: Will the replacement assembly trigger any interlock faults during the first actuation cycle?
A: Not under normal conditions. The sensor output timing is within the original specification window. If the chamber controller logs a gate valve timeout fault on the first cycle, verify that the pneumatic supply pressure is within the 80–100 psi range before investigating further.

Q: Can this assembly be used on a Kiyo 60 chamber that was previously running a Versys-generation gate valve?
A: Yes. The 715-032760-106 has been confirmed compatible with the Kiyo 60 platform. The mounting bracket and sensor harness are interchangeable across both tool families.

Q: What is the recommended torque for the M5 mounting fasteners?
A: Follow the LAM RESEARCH standard torque specification of 4.5 N·m for M5 fasteners in the gate valve bracket application. Do not exceed 5.0 N·m to avoid distorting the drive housing alignment.

Q: Is the internal drive mechanism field-serviceable if wear is detected before the end of the assembly’s service life?
A: The drive assembly is designed as a line-replaceable unit (LRU). Internal disassembly in the field is not recommended. Return the worn assembly for evaluation and install a fresh 715-032760-106 to maintain process qualification integrity.

Warranty Assurance

Every 715-032760-106 Inner Gate Valve Drive Assembly shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including pneumatic actuation cycling, sensor output confirmation, and dimensional inspection of the mounting interface. Units that do not meet the original LAM RESEARCH specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment and three business days for resolution confirmation. Expedited replacement shipping is available for critical-downtime situations — contact our team directly to arrange priority dispatch.

Stock is maintained in Xiamen, China, with standard international shipping lead times of 5–10 business days to most destinations. Express courier options (DHL, FedEx) are available for urgent requirements. All units are shipped with an inspection report and packing list. Customs documentation including commercial invoice and HS code declaration is provided as standard.
