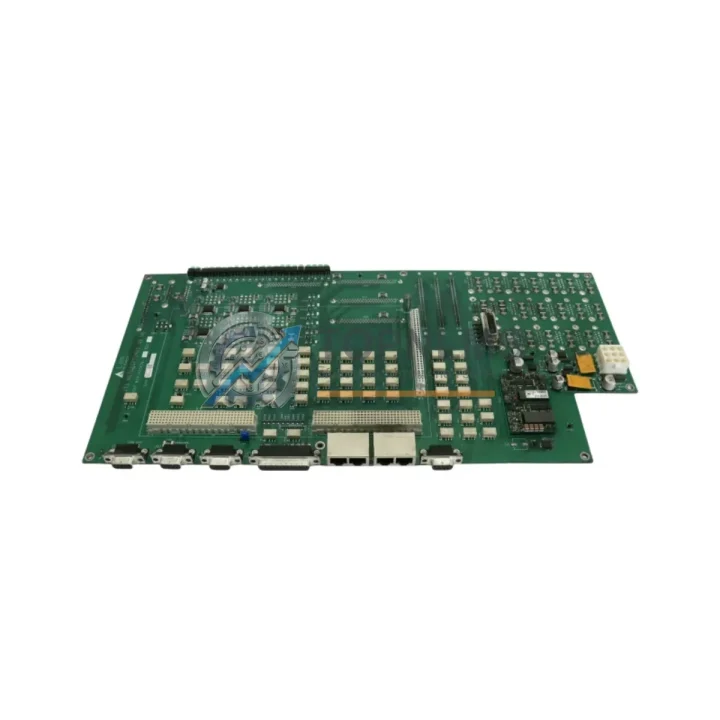

LAM RESEARCH 710-073479-215 Replacement for OPTIMUS Series

Product Overview

LAM RESEARCH 710-073479-215 Replacement for OPTIMUS Series: Smooth Transition & Legacy System Compatibility

Upgrading or replacing a failed LAM RESEARCH 710-073479-215 / 810-073479-215 PCB JTS MSTG assembly in your OPTIMUS platform does not have to mean extended downtime. This board is a direct-fit replacement for the OPTIMUS GB/MB mainframe architecture, engineered to restore full system functionality with minimal re-engineering effort. Whether you are retiring an end-of-life module, recovering from an unplanned failure, or building a validated spare inventory, this PCB assembly is sourced, inspected, and ready to ship from Xiamen.

The 710-073479-215 (also catalogued as 810-073479-215) is a JTS MSTG board used within the LAM RESEARCH OPTIMUS etch system’s gas box and match board subsystems. It interfaces directly with the RF match network, gas delivery control circuitry, and the system’s internal communication bus. Replacement of this board typically arises during scheduled preventive maintenance cycles, post-process drift investigations, or following arc events that damage the match tuning and sensing circuitry.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OPTIMUS platform migration or board-level repair rarely involves a single component in isolation. When replacing the 710-073479-215 JTS MSTG PCB, field engineers commonly address adjacent assemblies in the same service window to reduce future unplanned downtime. The RF match network itself — including the LAM RESEARCH OPTIMUS RF Match Assembly and its associated Match Tuning Capacitor Board — should be inspected for arc damage or capacitor degradation whenever the JTS MSTG board has failed due to an arc event.

The OPTIMUS Gas Box Interface Board (GB side) and the Match Board (MB) backplane connector assembly are mechanically adjacent and share the same internal DC power rail. If the system has experienced a power transient, both boards should be evaluated together. Similarly, the OPTIMUS I/O Interface PCB that manages digital signal routing between the gas delivery system and the main controller is a common co-replacement item during major preventive maintenance.

For facilities managing multiple OPTIMUS chambers, maintaining a validated spare of the LAM RESEARCH OPTIMUS Chamber Controller Board and the RF Generator Interface Module alongside the 710-073479-215 significantly reduces mean time to repair (MTTR). The OPTIMUS Endpoint Detection Interface Card and the Plasma Source Power Distribution Board are additional assemblies that share the same card cage environment and are subject to similar thermal and RF stress cycles.

When the replacement scope extends to the gas delivery subsystem, the OPTIMUS MFC (Mass Flow Controller) Interface Board and the Gas Panel Control PCB are frequently serviced in the same maintenance event. Sourcing these assemblies together from a single verified supplier simplifies incoming inspection, reduces logistics complexity, and ensures consistent documentation for your equipment maintenance records.

Retrofit Guidance FAQ

Q: Does replacing the 710-073479-215 require any wiring changes?
A: No. The replacement board uses an identical connector pinout and edge connector configuration to the original OEM assembly. All existing harnesses, ribbon cables, and ground straps connect without modification. Standard ESD handling procedures apply during installation.

Q: Will the OPTIMUS system software require reconfiguration after the board swap?
A: In most standard OPTIMUS configurations, the JTS MSTG board does not store chamber-specific recipe parameters. The system controller re-initializes the board on power-up. No firmware re-flash or recipe re-entry is required in typical installations. If your facility has applied custom firmware patches, consult your process engineer before installation.

Q: Is the 810-073479-215 part number interchangeable with 710-073479-215?
A: Yes. The 810-073479-215 is the revised catalog number for the same assembly. Both numbers refer to the identical PCB JTS MSTG GB/MB board and are fully interchangeable in OPTIMUS platform applications.

Q: What communication protocol does this board use, and is it compatible with our existing SECS/GEM host interface?
A: The JTS MSTG board communicates over the OPTIMUS internal bus, which is transparent to the SECS/GEM host interface layer. Replacing this board does not affect your fab host communication configuration or lot tracking integration.

Q: How much physical space does the replacement board require?
A: The replacement board occupies the same single-slot position in the OPTIMUS GB/MB card cage as the original. No additional clearance, bracket modification, or adjacent slot clearance is required.

Q: What is the recommended procedure for validating the replacement board before returning the chamber to production?
A: After installation, perform a standard OPTIMUS system self-test sequence, verify RF match tuning response across the process frequency range, and run a qualification wafer lot per your facility’s chamber qualification SOP before releasing the chamber to production.

Warranty Assurance

Every LAM RESEARCH 710-073479-215 / 810-073479-215 PCB JTS MSTG unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not meet our outgoing quality standard are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed failure mode and your operational requirements. Our after-sales response target is one business day for warranty claim acknowledgement. Replacement units are dispatched with priority shipping to minimize your chamber downtime. All warranty claims are documented and tracked to support your equipment maintenance records and audit requirements.

For time-critical procurement — including emergency AOG (aircraft-on-ground equivalent) semiconductor fab situations — please contact our team directly to confirm real-time stock availability and expedited shipping options. We ship from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Express available for next-flight-out requirements.

For volume procurement, spare parts program quotations, or consignment inventory arrangements, contact our industrial components team to discuss pricing, lead times, and documentation packages including test reports and certificates of conformance.
