Lam Research 684-013298-003 RF Generator Cable Upgrade

Product Overview

Lam Research 684-013298-003 RF Generator Cable Upgrade: Seamless Transition for Legacy Plasma Etch Systems

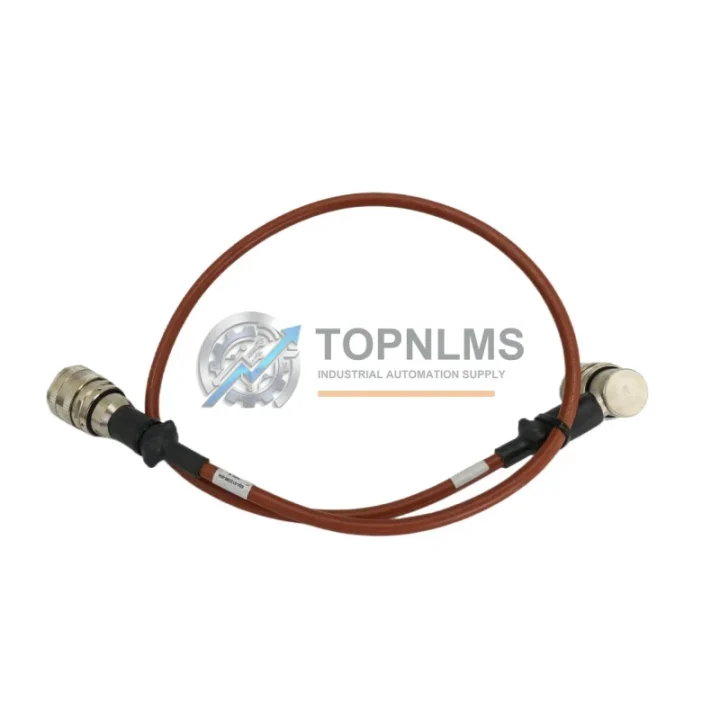

The Lam Research 684-013298-003 RF Generator Cable (2M) is a precision-engineered interconnect component designed for RF power delivery in Lam Research plasma etch and deposition platforms. Cross-referenced as 0020-32117 and 1D10-101567-12, this cable serves as a direct replacement or upgrade solution for aging, damaged, or end-of-life RF cabling in semiconductor fabrication environments. Whether your facility is migrating from an older Lam Research 2300 Kiyo or Flex series chamber to a modernized configuration, or simply replacing a worn RF generator cable to restore process stability, this component provides a verified drop-in fit with no modifications to existing RF generator interfaces, match network connections, or chamber wiring harnesses.

RF generator cables are among the most mechanically and electrically stressed components in a plasma process system. Repeated thermal cycling, high-frequency RF energy transmission, and physical routing constraints inside the tool enclosure all contribute to cable degradation over time. A failing 684-013298-003 cable can manifest as RF impedance mismatch, unstable plasma ignition, increased reflected power, or intermittent process alarms — all of which directly impact wafer yield and chamber uptime. Replacing this cable with a verified OEM-equivalent part is the fastest path to restoring process baseline without requiring a full chamber qualification cycle.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RF system migration or cable replacement rarely involves a single component. When replacing the 684-013298-003 RF generator cable, field engineers typically audit the entire RF power delivery chain to prevent repeat failures and ensure process stability. In Lam Research plasma etch systems, the RF power path runs from the generator through the match network and into the chamber electrode — and each segment of this path must be verified during a cable swap.

During a planned preventive maintenance window or unplanned cable failure event, it is common practice to simultaneously inspect or replace the RF match network input cable (the short jumper between the match box and the chamber feedthrough), the RF generator output connector housing, and the match network capacitor assembly if the system has accumulated significant RF-on hours. On Lam 2300 Kiyo platforms, the lower electrode RF feed assembly and the upper electrode bias cable are also frequently replaced as a set when the primary RF cable shows signs of insulation breakdown or connector wear.

For facilities running multi-chamber configurations, it is advisable to maintain a spare 684-013298-003 cable alongside spare units of the RF power sensor module (used for forward and reflected power monitoring), the chamber lid RF gasket kit, and the process kit ring assembly — all of which interact with RF delivery performance and can mask cable-related process drift if not replaced on schedule. On Versys Metal or Flex series tools, the RF distribution board and plasma confinement ring are additional components that should be cross-checked during any RF cable replacement event to confirm that the root cause of process instability is isolated to the cable and not a broader RF system degradation.

For facilities transitioning from older Lam Research platforms to current-generation chambers, the 684-013298-003 cable is also compatible with retrofit kits that include updated RF shielding conduit assemblies and cable management brackets designed to reduce EMI coupling in densely packed fab bays. These retrofit components are typically sourced alongside the primary RF cable to complete a single-event upgrade rather than requiring multiple maintenance windows.

Retrofit Guidance FAQ

Q: Can I install the 684-013298-003 without recalibrating the RF match network?
A: In most cases, yes. Because this cable is a direct OEM-equivalent replacement with identical electrical length and impedance characteristics, the match network tuning parameters established for the original cable remain valid. However, it is recommended to run a match network auto-tune cycle after installation to confirm that the new cable has not introduced any impedance offset due to connector seating or routing differences.

Q: Is the wiring and connector orientation identical to the 0020-32117 and 1D10-101567-12 cross-references?
A: Yes. The 684-013298-003 is the current Lam Research part number that supersedes both 0020-32117 and 1D10-101567-12. The connector pinout, cable jacket material, and termination method are identical, making this a true drop-in replacement with no wiring modifications required.

Q: What is the recommended installation procedure for this RF cable?
A: Follow the Lam Research chamber maintenance procedure for RF cable replacement: (1) Confirm RF generator is powered off and RF interlocks are engaged. (2) Vent the chamber to atmosphere if required by your site safety protocol. (3) Disconnect the legacy cable at both the generator output and match network input. (4) Route the new 684-013298-003 cable through the existing cable management path. (5) Torque connectors to OEM specification. (6) Perform RF power-on test at reduced power before returning to process conditions.

Q: Will this cable work with third-party RF generators such as Advanced Energy (AE) or MKS Instruments units installed on Lam platforms?
A: The 684-013298-003 cable interfaces with the match network, not directly with the generator brand. As long as the match network input connector is the standard Lam OEM type, this cable is compatible regardless of whether the RF generator is an OEM Lam unit, an AE Paramount, or an MKS Astex replacement generator.

Q: How much physical space is required for cable routing?
A: The 2M cable length and jacket diameter are identical to the original specification. No modifications to cable trays, conduit brackets, or tool enclosure panels are required. The cable follows the same routing path as the unit it replaces.

Q: What communication or protocol considerations apply to this component?
A: This is a passive RF power cable — it does not carry digital communication signals. There are no protocol, firmware, or software compatibility considerations. The only electrical parameters to verify are RF frequency rating and power handling capacity, both of which match the original OEM specification.

Warranty Assurance

Every Lam Research 684-013298-003 RF Generator Cable shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes visual inspection for connector integrity, cable jacket condition, and termination quality. Units showing any signs of mechanical damage, insulation compromise, or connector deformation are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing for customers experiencing active tool downtime. Our response target for warranty inquiries is within 1 business day. Replacement units are dispatched from our Xiamen warehouse with expedited freight options available for urgent fab recovery situations.

Stock availability is maintained for this part number to support both planned procurement cycles and emergency replacement orders. Lead time for in-stock units is typically 1–3 business days for domestic China shipments and 5–10 business days for international destinations, subject to customs clearance. All units are shipped with a certificate of conformance and packing documentation suitable for fab incoming inspection requirements.

For volume procurement, blanket order arrangements, or consignment stock programs, contact our sales team directly to discuss pricing, lead time commitments, and quality documentation packages tailored to your facility’s supplier qualification requirements.
