Lam Research 18-22-30-A1-1613166 PCB Controller Upgrade

Product Overview

Lam Research 18-22-30-A1-1613166 PCB Controller Card: Seamless Upgrade & Smooth System Transition

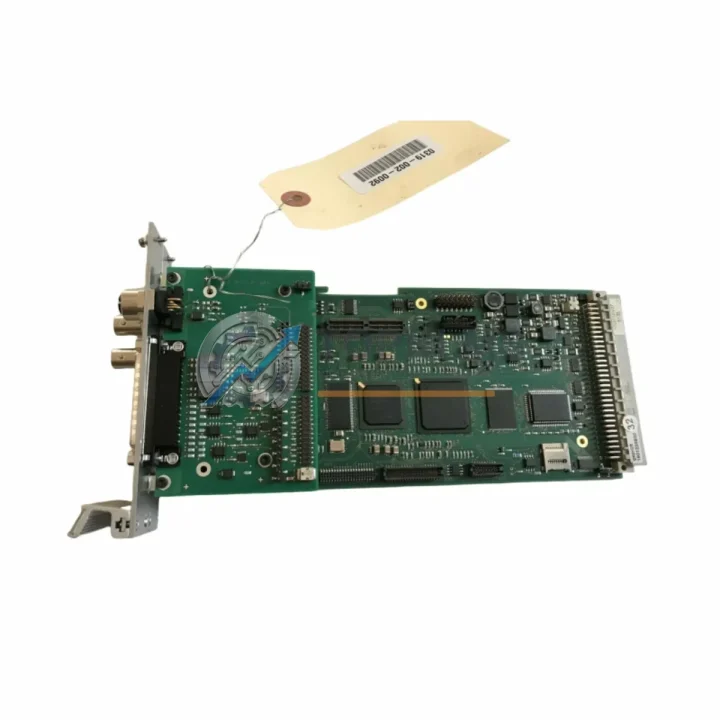

The Lam Research 18-22-30-A1-1613166 is a precision-engineered PCB Controller Card designed for use in Lam Research semiconductor processing equipment. As legacy systems age and original controller cards reach end-of-life, sourcing a verified, functionally equivalent replacement becomes critical to maintaining wafer fabrication throughput and avoiding costly unplanned downtime. TOPNLMS stocks this card to support fabs and equipment maintenance teams requiring a reliable, tested drop-in upgrade solution.

Whether you are replacing a failed unit mid-process, planning a scheduled retrofit, or building a strategic spare inventory for your Lam Research etch or CVD system, the 18-22-30-A1-1613166 controller card delivers the electrical compatibility and mechanical fit required for a smooth transition — without the need to re-engineer your control architecture or modify existing wiring harnesses.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful controller card replacement in a Lam Research system rarely involves a single component in isolation. During a planned retrofit or emergency swap, maintenance engineers typically inspect and refresh several interconnected assemblies to ensure the upgraded system returns to full operational stability.

When replacing the 18-22-30-A1-1613166, it is advisable to simultaneously evaluate the condition of the Lam Research backplane card cage that houses the controller card, as worn card-edge connectors or cracked backplane traces can cause intermittent faults even after a new card is installed. The power distribution board supplying regulated DC rails to the card cage should also be inspected — degraded capacitors or voltage drift on the 5V or 12V rails can stress a newly installed controller card and shorten its service life.

Communication integrity between the controller card and the host system depends on the reliability of the internal ribbon cables and signal harnesses connecting the PCB to I/O interface boards. These cables are subject to fatigue cracking in high-vibration or high-temperature process environments and should be replaced as a precaution during any major card swap. Similarly, the I/O interface module that bridges the controller card to field sensors, actuators, and process endpoints should be verified for signal continuity and connector integrity.

For systems running older Lam Research etch or deposition platforms, the process control CPU board — often housed in the same card cage — may also be approaching end-of-life. Upgrading the 18-22-30-A1-1613166 controller card while the CPU board remains degraded can result in persistent communication errors or process recipe instability. Proactive replacement of both units during the same maintenance window eliminates a second unplanned outage.

The analog signal conditioning board responsible for processing sensor feedback — including pressure transducers, temperature probes, and flow controllers — should be tested for offset drift and linearity errors. A faulty signal conditioning board can cause the newly installed controller card to receive corrupted process data, leading to false alarms or out-of-spec process results. Likewise, the digital I/O expansion card managing valve sequencing and interlock logic should be confirmed operational before returning the system to production.

Where the system architecture includes a fieldbus communication module (such as a SECS/GEM interface card or a proprietary Lam Research host communication board), verifying its firmware version and connection stability ensures that the upgraded controller card integrates correctly with fab-level MES and equipment automation systems. Finally, the HMI operator panel or touch-screen interface connected to the controller should be tested for correct display of process parameters and alarm states following the card replacement, confirming end-to-end system integrity before resuming wafer processing.

Retrofit Guidance FAQ

Q1: Is the 18-22-30-A1-1613166 a direct plug-in replacement for the original Lam Research card?
A: Yes. The 18-22-30-A1-1613166 is designed to the same OEM specifications as the original card, with an identical PCB footprint, connector layout, and backplane interface. In most configurations, replacement requires no wiring modifications, no chassis alterations, and no software re-flashing. The card slots directly into the existing card cage and is recognized by the system upon power-up.

Q2: Will my existing wiring harnesses and communication cables remain compatible after the swap?
A: Yes. The replacement card uses the same connector types and pinout as the original. Existing ribbon cables, signal harnesses, and backplane connectors are fully retained. If your harnesses show signs of wear — cracking insulation, loose connectors, or intermittent continuity — we recommend replacing them during the same maintenance window to prevent post-installation faults.

Q3: How do I verify compatibility before installation if my system has been modified from its original configuration?
A: Compare your existing card’s part number label against the 18-22-30-A1-1613166 designation. If your system has undergone hardware revisions, check the card cage slot assignment and backplane connector version. Our technical team at [email protected] can assist with compatibility verification based on your system serial number or equipment model documentation.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
A: Every unit undergoes functional verification and electrical parameter testing prior to shipment. The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) scenarios. Warranty support includes replacement dispatch, technical troubleshooting assistance, and return authorization. Contact [email protected] for warranty claims or post-installation support.

Warranty Assurance

TOPNLMS provides a 12-month warranty on the Lam Research 18-22-30-A1-1613166 PCB Controller Card from the date of shipment. Each unit is individually tested for electrical functionality and signal integrity before packaging. Pre-shipment inspection records are available upon request for quality-critical procurement processes.

In the event of a warranty claim, our after-sales team responds within one business day. Replacement units are dispatched promptly to minimize equipment downtime. We support both advance replacement (ship-before-return) arrangements for urgent production situations and standard return-and-replace workflows for planned maintenance cycles.

Global shipping is available with full export documentation, including commercial invoices, packing lists, and certificates of origin where required. Expedited freight options are available for emergency procurement. All shipments are tracked and insured.

For procurement inquiries, compatibility questions, or warranty support, contact our industrial parts team directly.
