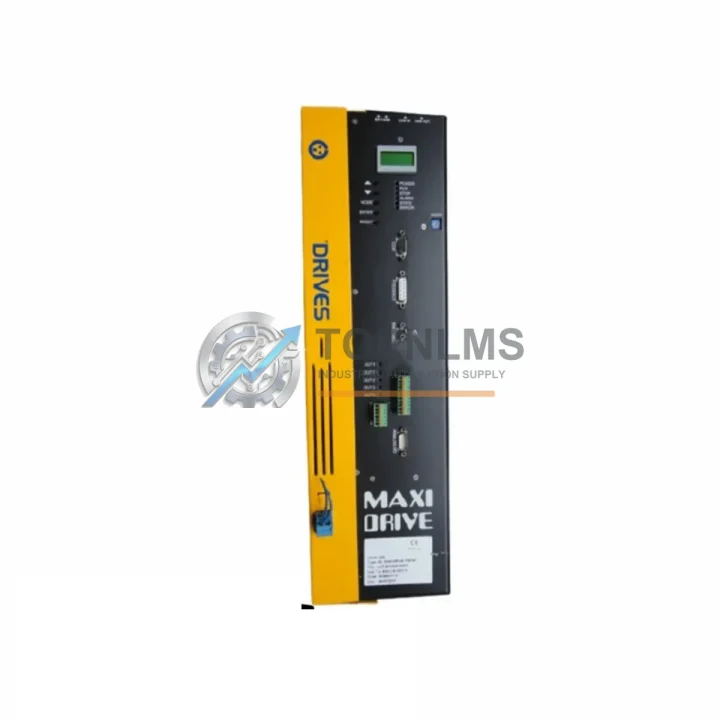

LAFERT XD102/452 LAF.B7120Z-03272 Ruggedized Servo Drive

Product Overview

LAFERT XD102/452 LAF.B7120Z-03272 Ruggedized Servo Drive: Industrial Resilience for the Most Demanding Environments

The LAFERT XD102/452 LAF.B7120Z-03272 MAXIDRIVE Servo Drive is an industrial-grade motion control component engineered to deliver precise, reliable servo performance in environments where standard drives simply cannot survive. Designed by LAFERT — an Italian manufacturer with decades of expertise in electric motors and drive systems — this unit is built to sustain continuous operation under conditions of elevated temperature, high humidity, airborne particulate, mechanical vibration, and electromagnetic interference. For engineers and procurement specialists sourcing replacement or expansion components for critical automation infrastructure, the XD102/452 LAF.B7120Z-03272 represents a proven, field-validated solution.

In modern industrial facilities — whether a petrochemical refinery, a continuous steel rolling mill, a municipal water treatment plant, or a high-throughput automotive assembly line — servo drives are the nerve centers of motion control. They translate digital commands from a PLC or DCS controller into precise torque and velocity outputs at the motor shaft. When a servo drive fails, the entire production cell stops. The LAFERT MAXIDRIVE XD102/452 is engineered with this operational reality in mind: its robust power stage, thermally managed enclosure, and wide input voltage tolerance ensure that it keeps running when ambient conditions deteriorate.

The XD102/452 integrates seamlessly into control architectures built around LAFERT MAXIDRIVE servo motors, and its command interface supports standard industrial communication protocols, making it compatible with a broad range of PLC platforms and motion controllers. In a typical control cabinet installation, this drive operates alongside components such as LAFERT MAXIDRIVE servo motors (LAF series), 24 VDC industrial power supplies, safety relay modules, and terminal block assemblies. The drive accepts enable and fault-reset signals from safety modules, ensuring that the motion axis can be safely de-energized in emergency stop scenarios without requiring a full system power cycle.

For system integrators working on multi-axis machine tools or robotic welding cells, the XD102/452 can be coordinated with other MAXIDRIVE axes through a shared DC bus or individual AC supply configurations. Its regenerative braking capability allows kinetic energy to be returned to the bus during deceleration, reducing thermal load on braking resistors and improving overall energy efficiency — a critical consideration in high-cycle applications such as press feeders, winding machines, and pick-and-place systems.

In harsh-environment deployments, the drive’s internal filtering and shielding architecture suppresses conducted and radiated EMI, protecting adjacent I/O modules, communication modules, and analog signal wiring from interference-induced errors. This is particularly important in facilities where variable frequency drives (VFDs), large contactors, and welding equipment generate significant electrical noise on the plant floor. The XD102/452’s EMC compliance ensures that encoder feedback signals remain clean and that position loop stability is maintained even in electrically noisy environments.

Procurement teams evaluating this unit as a spare part or direct replacement will find that the LAF.B7120Z-03272 part number provides an unambiguous cross-reference to the original LAFERT bill of materials. TOPNLMS stocks this unit and subjects each piece to functional verification prior to shipment, including power-on testing, parameter readback, and output stage integrity checks. Every unit ships with a 12-month warranty, providing assurance for both planned maintenance stockpiles and emergency breakdown replacements.

For facilities operating under IEC 61508 or IEC 62061 functional safety frameworks, the XD102/452 can be integrated with certified safety modules and safety PLCs to achieve the required Safety Integrity Level (SIL) for the motion axis. The drive’s STO (Safe Torque Off) input — when wired to an appropriate safety relay or safety controller — provides a hardware-level torque inhibit that satisfies the requirements of SIL 2 / PLd safety functions without the need for a main contactor in the motor circuit.

Rugged Specifications Table

Comprehensive Protection Solutions

The LAFERT XD102/452 LAF.B7120Z-03272 is rarely deployed in isolation. In a fully engineered control cabinet, it operates as part of a coordinated system of protection, power, and communication components. The drive receives its motion commands from a PLC — such as a Siemens SIMATIC S7-1500 or Allen-Bradley ControlLogix — via a fieldbus interface or analog velocity reference. A 24 VDC SITOP or Phoenix Contact power supply unit provides logic-level power to the drive’s control board and to the I/O modules that carry digital enable signals and fault outputs.

Upstream of the drive, a properly rated circuit breaker and EMC line filter protect both the drive and the supply network from conducted disturbances. A Pilz PNOZ or Siemens 3SK safety relay monitors the emergency stop circuit and drives the STO input of the XD102/452, ensuring that the servo axis is safely inhibited during personnel access to the machine. On the motor side, a shielded servo cable with 360° shield termination at both the drive and motor ends is essential for maintaining encoder signal integrity and suppressing radiated emissions.

In multi-axis installations, the XD102/452 may share a control cabinet with LAFERT MAXIDRIVE XD104 or XD106 drives serving higher-power axes, all coordinated by a motion controller or CNC kernel. Terminal block modules — such as Phoenix Contact PTFIX or Weidmüller KLIPPON series — organize the I/O wiring between the drive, the PLC, and field sensors. A communication gateway or industrial Ethernet switch may bridge the drive’s CANopen interface to the plant’s PROFINET or EtherNet/IP backbone, enabling centralized monitoring of drive status, fault codes, and energy consumption from the SCADA system.

For applications requiring precise position feedback, a Heidenhain or Sick absolute encoder mounted on the load side provides a secondary position reference that the drive’s position loop can use for closed-loop accuracy verification. In high-vibration environments such as mining conveyors or press lines, vibration-damping mounts and cable strain relief fittings protect the drive’s internal connectors and the motor feedback cable from mechanical fatigue failures.

Application in Critical Infrastructure

The LAFERT XD102/452 LAF.B7120Z-03272 finds its most demanding deployments in critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, servo drives control the positioning of valve actuators, chemical injection pumps, and wellhead equipment. The XD102/452’s wide operating temperature range and robust EMC performance make it suitable for installation in pressurized control rooms adjacent to hazardous areas classified under ATEX Zone 2 or IECEx Group IIC, provided the cabinet meets the required ingress protection rating.

In mining and mineral processing, servo drives are used in conveyor positioning systems, ore sampling equipment, and flotation cell agitators. The high dust and humidity levels in underground and open-pit environments demand drives with robust internal filtering and conformal-coated PCBs — characteristics that the MAXIDRIVE series incorporates as standard.

In power generation — including thermal, hydro, and wind — servo drives control turbine blade pitch actuators, generator excitation systems, and auxiliary equipment positioning. The XD102/452’s STO function and SIL 2 capability align with the functional safety requirements of IEC 61511 process safety management frameworks applied in power plant control systems.

In water and wastewater treatment, servo drives operate dosing pump drives, sluice gate actuators, and filter press mechanisms. The continuous-duty cycle and corrosive atmospheric conditions in these facilities — chlorine vapors, hydrogen sulfide, and high ambient humidity — demand drives with robust sealing and corrosion-resistant internal components.

In metallurgy and steel production, rolling mill drives, coiler tension control systems, and ladle transfer car positioning systems rely on servo drives capable of sustaining high-cycle operation at elevated ambient temperatures. The XD102/452’s thermal management and derating characteristics allow it to operate reliably in mill bay environments where ambient temperatures routinely exceed 40°C.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every LAFERT XD102/452 LAF.B7120Z-03272 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed via email to [email protected] with the order reference and a brief fault description.

Q2: What pre-shipment testing is performed on each unit?
Each unit undergoes a structured pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, parameter readback to confirm firmware integrity, and output stage continuity testing. Units that do not pass all inspection criteria are quarantined and not shipped. A test record is available upon request for customers with incoming inspection requirements.

Q3: Is this unit compatible with my existing LAFERT MAXIDRIVE servo motor and PLC system?
The XD102/452 LAF.B7120Z-03272 is designed for use with LAFERT MAXIDRIVE servo motors in the compatible torque and speed range. It supports standard industrial command interfaces including analog ±10 V velocity reference and CANopen fieldbus, making it compatible with most major PLC and motion controller platforms. If you require confirmation of compatibility with a specific motor model or control system, contact TOPNLMS technical support with your motor nameplate data and PLC model number.

Q4: Can TOPNLMS guarantee long-term supply and support for this part number?
TOPNLMS maintains stock of LAFERT MAXIDRIVE components including the XD102/452 series and actively monitors supply chain availability to support customers with planned maintenance programs and emergency breakdown requirements. For customers requiring guaranteed availability over a multi-year maintenance contract, TOPNLMS can discuss consignment stock or priority supply agreements. Contact [email protected] to discuss your long-term procurement requirements.
