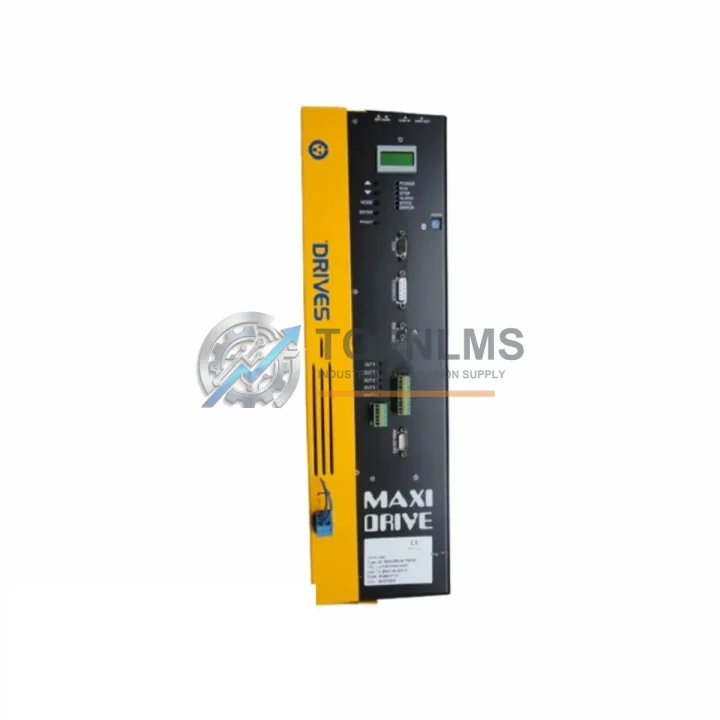

LAFERT XD101/452 Original Industrial Spare XD101 Compatible

Product Overview

LAFERT XD101/452 Original Industrial Spare XD101 Compatible: Sustaining Motion Control System Stability

In modern industrial manufacturing environments, servo drive reliability is the backbone of precision motion control. The LAFERT XD101/452 LAF.B7132Z-03270 is an original AC servo drive engineered for the XD101 series platform, delivering consistent torque regulation, velocity loop performance, and positional accuracy across demanding production cycles. Whether your facility operates CNC machining centers, automated assembly lines, packaging equipment, or material handling systems, this drive module represents a critical spare that no maintenance team should overlook.

Unplanned servo drive failures are among the most disruptive events in a production environment. A single failed drive can halt an entire line, triggering cascading delays that affect scheduling, output targets, and customer commitments. Stocking the LAFERT XD101/452 as a verified original spare eliminates the lead-time risk associated with emergency procurement and ensures your maintenance team can execute a fast, confident swap during the next scheduled or unscheduled downtime window.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive does not operate in isolation. Its performance is directly influenced by the health of every upstream and downstream component in the motion control cabinet. When scheduling a maintenance inspection or preparing for a planned shutdown, experienced automation engineers treat the LAFERT XD101/452 replacement as the starting point of a broader cabinet audit — not the end of it.

Begin with the servo motor feedback cable and power cable assembly. Degraded shielding or loose connector pins on the encoder cable are a leading cause of drive fault codes and erratic positioning errors. Inspect and replace these cables on a defined cycle, particularly in environments with high vibration or frequent thermal cycling. At the same time, verify the condition of the 24 V DC control power supply module feeding the drive’s logic board — undervoltage on the control rail is a silent contributor to intermittent drive trips that are often misdiagnosed as drive failures.

The regenerative braking resistor connected to the DC bus should be checked for thermal discoloration and resistance drift, especially in applications with frequent deceleration cycles such as press feeders or winding machines. A degraded braking resistor places excess stress on the drive’s internal IGBT module and can shorten drive service life significantly.

Within the same control cabinet, inspect the EMC line filter upstream of the drive. A compromised filter allows conducted interference to propagate into the drive’s rectifier stage, increasing the risk of nuisance trips and long-term component fatigue. Pair this inspection with a review of the contactor and circuit breaker on the drive’s input feed — contact wear and spring fatigue in these devices can cause voltage dips that trigger drive undervoltage faults.

For multi-axis systems, the DC bus capacitor bank and any shared common DC bus coupling modules should be evaluated during the same maintenance window. Capacitor ESR drift affects the entire drive network, not just a single axis. Similarly, the I/O terminal block and signal wiring connecting the drive to the PLC or motion controller should be inspected for loose terminations, which are a frequent source of intermittent enable signal faults.

Finally, if your system uses a LAFERT-compatible servo motor paired with this drive, verify motor insulation resistance and bearing condition. A motor with degraded winding insulation will draw asymmetric phase currents that stress the drive’s output stage. Addressing motor health proactively extends the service life of the replacement drive and protects your capital investment.

Strategic Replacement Solutions

The LAFERT XD101/452 LAF.B7132Z-03270 is designed as a direct form-fit-function replacement within the XD101 series drive family. For facilities operating legacy motion control systems built around LAFERT servo technology, this part number eliminates the need for costly system redesigns or PLC parameter reconfiguration. The drive retains full compatibility with existing motor feedback wiring, control signal interfaces, and fieldbus communication protocols already configured in the host controller.

For maintenance teams managing aging automation infrastructure, the availability of original LAFERT XD101 series spares is a strategic asset. Rather than committing to a full drive system upgrade — which requires new motor sizing, cable replacement, PLC I/O remapping, and extended commissioning time — a verified original spare allows the existing system to continue operating at specification with minimal intervention. This approach is particularly valuable in industries where production continuity takes priority over capital expenditure cycles, such as food processing, pharmaceutical manufacturing, and automotive component production.

Each unit dispatched from our inventory undergoes functional verification prior to shipment. Drive parameters are checked, output stage integrity is confirmed, and the unit is packaged to prevent transit damage. A 12-month warranty covers the replacement against manufacturing defects and functional failure under normal operating conditions, giving procurement and maintenance managers the confidence to stock this part as a long-term inventory asset rather than a one-time emergency purchase.

Support FAQ

Q1: Is the LAFERT XD101/452 LAF.B7132Z-03270 a genuine original part or a compatible substitute?
This is a genuine original LAFERT part bearing the factory part number LAF.B7132Z-03270. It is not a third-party compatible or remanufactured substitute. Original parts ensure full parameter compatibility and eliminate the risk of firmware or hardware mismatches that can occur with non-OEM alternatives.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers functional failure and manufacturing defects under normal industrial operating conditions. Units are tested prior to dispatch. Warranty claims are supported by our technical team with direct replacement or repair options.

Q3: Can this drive be installed as a direct replacement without reprogramming the host PLC or motion controller?
Yes. The XD101/452 is a direct form-fit-function replacement within the XD101 series. Existing motor feedback wiring, control signal connections, and drive parameter files stored in the host controller remain valid. Standard commissioning practice recommends verifying drive parameter upload after installation, but no fundamental reconfiguration is required for like-for-like replacement.

Q4: How quickly can this part be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. International shipments are supported with commercial invoice and packing list documentation suitable for customs clearance. Express freight options are available for urgent maintenance requirements. Contact our team to confirm current stock status and lead time before placing your order.
