KWANGWOO RAA-001007-2102 Replacement & Upgrade Solution for RAA Series: Smooth Transition from Legacy Encoder Systems

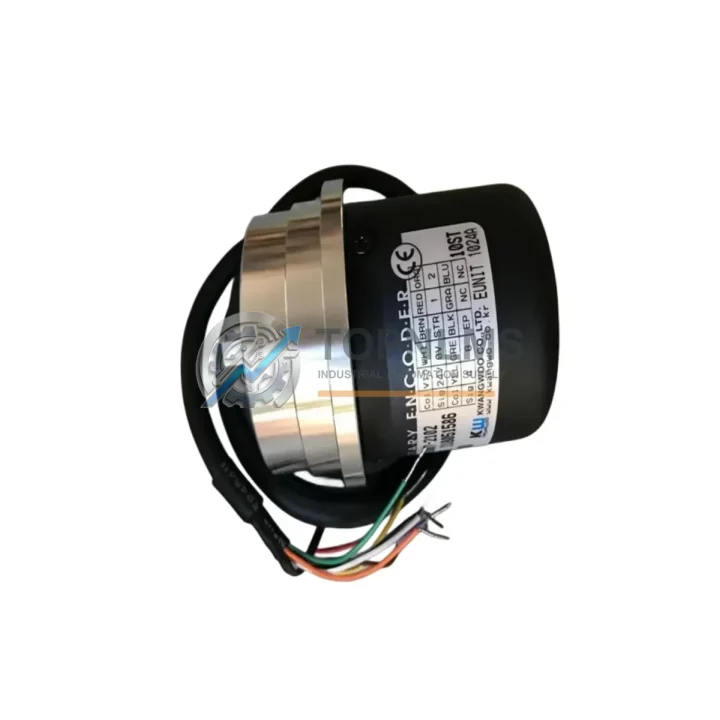

The KWANGWOO RAA-001007-2102 is a precision incremental rotary encoder designed for seamless replacement and upgrade within KWANGWOO’s RAA series encoder platform. Whether your facility is retiring aging motion-control hardware, replacing a discontinued encoder on a CNC machine, packaging line, or servo-driven conveyor system, the RAA-001007-2102 delivers a drop-in compatible solution that minimizes engineering rework, reduces downtime, and preserves your existing wiring infrastructure.

Industrial facilities operating legacy KWANGWOO RAA-series encoders — including earlier RAA-001007 variants — frequently encounter obsolescence challenges: discontinued part numbers, degraded signal quality, worn shaft couplings, or failed output circuits. The RAA-001007-2102 addresses all of these scenarios with a form-factor-compatible design that retains the same mounting flange dimensions, shaft diameter, and connector pinout as the predecessor units, allowing field technicians to complete a swap in under 30 minutes without modifying the control cabinet layout or re-routing signal cables.

From a wiring compatibility standpoint, the RAA-001007-2102 supports standard A/B/Z incremental output channels with complementary push-pull (HTL) or open-collector (NPN/PNP) output options, matching the signal levels expected by most PLC digital input modules — including Siemens S7-300/S7-1200 high-speed counter (HSC) inputs, Mitsubishi FX3U/FX5U high-speed input terminals, and Omron CJ2M/CP1H pulse input cards. No firmware changes or parameter re-mapping are required when the replacement encoder shares the same PPR (pulses per revolution) specification as the original unit.

For systems where the original RAA-series encoder was connected to a dedicated motion controller or servo drive — such as a Yaskawa Sigma-7 servo amplifier feedback interface, a Delta ASDA-A2 encoder input, or a Panasonic MINAS A6 series drive — the RAA-001007-2102 can be integrated with an appropriate encoder signal converter or line driver adapter if the drive expects a differential RS-422 (TTL) signal rather than HTL. This is a common retrofit consideration when upgrading from older HTL-output encoders to drives with RS-422 input requirements, and our technical team can advise on the correct signal conditioning module for your specific drive model.

Physical installation is straightforward. The RAA-001007-2102 uses a standard servo-flange or synchro-flange mounting pattern compatible with the RAA series mechanical interface. The shaft coupling — whether a bellows-type, jaw-type, or rigid coupling — from the original installation can typically be reused, provided it is within tolerance. The encoder body fits within the same control cabinet or machine enclosure footprint as the original, eliminating the need for bracket fabrication or panel cutout modification.

In multi-axis systems, it is common to replace multiple encoders simultaneously during a planned maintenance window. The RAA-001007-2102 is frequently deployed alongside KWANGWOO RAA-series companion encoders on adjacent axes, as well as in conjunction with terminal blocks, shielded encoder cables, and cable glands sourced from the same control cabinet BOM. Maintaining consistent encoder specifications across all axes simplifies PLC programming, reduces spare-parts inventory complexity, and ensures uniform signal timing across the motion profile.

For facilities upgrading from a fully discontinued legacy system — such as a first-generation KWANGWOO RAA encoder paired with an older Siemens S5 or Allen-Bradley SLC 500 controller — the migration path typically involves replacing the encoder, updating the HSC input module to a current-generation equivalent, and verifying the pulse count scaling in the PLC program. The RAA-001007-2102’s compatibility with modern HSC modules from major PLC platforms makes it a reliable anchor component in this type of system modernization project.

Procurement and logistics are streamlined for B2B buyers. Stock is held in Xiamen and is available for same-day or next-business-day dispatch. Each unit undergoes pre-shipment functional testing covering output signal integrity, shaft runout, and insulation resistance. Standard export packaging protects the encoder during international freight. Lead time for in-stock units is typically 3–7 business days to major industrial hubs in Southeast Asia, the Middle East, and Europe.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder replacement project rarely involves a single component. When migrating from a legacy RAA-series encoder system, the following components are commonly required to complete the upgrade. Shielded encoder cables with the correct connector type ensure signal integrity over long cable runs between the encoder and the PLC high-speed counter input. Terminal blocks rated for encoder signal levels — such as spring-clamp or screw-type DIN rail terminal blocks — simplify field wiring and reduce connection errors during commissioning. Cable glands and strain-relief fittings protect the encoder cable at the cabinet entry point, which is especially important in high-vibration environments.

For systems where the encoder signal must be distributed to multiple devices — for example, to both a PLC HSC input and a separate frequency converter or display unit — an encoder signal splitter or line driver repeater is recommended to prevent signal loading. In retrofit projects involving older Siemens S7-300 FM 350-1 counter modules or Mitsubishi FX3U-4HSX-ADP high-speed input adapters, verifying the input voltage threshold compatibility with the RAA-001007-2102’s output level is a critical pre-installation step. Shaft couplings — particularly bellows couplings for high-accuracy applications or jaw couplings for general-purpose use — should be inspected and replaced if worn, as a damaged coupling is a common root cause of encoder signal jitter and premature bearing failure. Finally, encoder mounting brackets or adapter flanges may be required when the replacement encoder is installed on a machine where the original mounting surface has been modified or damaged.

Retrofit Guidance FAQ

Q: Can I replace the legacy RAA-001007 with the RAA-001007-2102 without modifying my PLC program?
A: In most cases, yes. If the PPR specification of the replacement encoder matches the original, no scaling changes are required in the PLC high-speed counter configuration. Verify the PPR value before ordering.

Q: Is the wiring pinout identical to the original RAA-series encoder?
A: The RAA-001007-2102 uses the standard KWANGWOO RAA series connector pinout. In the majority of installations, the existing cable and connector can be reused directly. Always verify against the original wiring diagram before powering up.

Q: What if my servo drive expects a differential RS-422 signal but the RAA-001007-2102 outputs HTL?
A: An HTL-to-RS-422 signal converter module is required. This is a standard component available from multiple industrial automation suppliers. Our team can advise on compatible converter models for your specific drive.

Q: How much physical space does the RAA-001007-2102 require in the control cabinet?
A: The encoder mounts externally on the machine shaft, not inside the control cabinet. The cable entry into the cabinet requires only a standard cable gland. No additional cabinet space is needed for the encoder body itself.

Q: What is the recommended commissioning procedure after installation?
A: After mechanical installation and wiring, power up the system and verify the A/B/Z pulse output using the PLC’s HSC diagnostic function or an oscilloscope. Confirm the direction of rotation matches the PLC’s expected count direction. Run the machine at low speed and verify position feedback accuracy before resuming full production speed.

Warranty Assurance

Every KWANGWOO RAA-001007-2102 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes output signal verification across all channels (A, B, Z), shaft runout measurement, supply voltage range confirmation, and insulation resistance check. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or full refund processing within 5 business days of claim confirmation. Buyers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our team to discuss expedited replacement arrangements. After-sales technical support is available via email and phone for installation, commissioning, and compatibility questions throughout the warranty period.

For B2B buyers managing planned maintenance schedules, we recommend holding a minimum of one spare RAA-001007-2102 unit per production line to eliminate unplanned downtime risk. Volume pricing is available for orders of 3 units or more.
