KUKA KUKA-KCP2 Original Industrial Spare KR C2 Compatible

Product Overview

KUKA KUKA-KCP2 Original Industrial Spare KR C2 Compatible: System Stability and Industrial Spare Maintenance Value

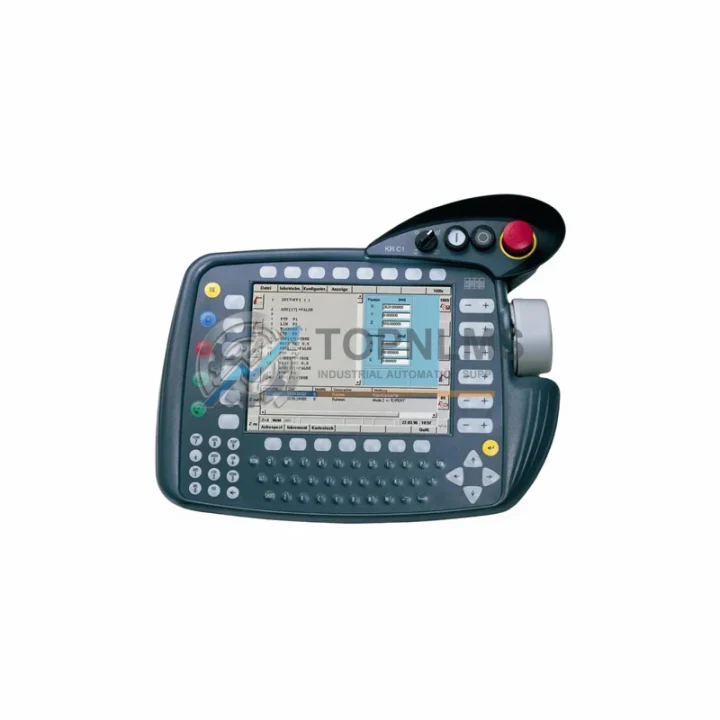

The KUKA-KCP2 Teach Pendant is a mission-critical operator interface designed for KUKA KR C2 series robot controllers. In industrial environments where robotic arms handle welding, material handling, assembly, and palletizing operations around the clock, the teach pendant is the primary human-machine interface for programming, jogging, and monitoring robot motion. A failed or degraded KCP2 unit can bring an entire production cell to a standstill, making rapid access to a verified original replacement unit an essential element of any serious maintenance strategy.

Sourced directly from authorized supply channels, this KUKA-KCP2 unit is an original spare — not a clone or aftermarket substitute. It is fully compatible with the KR C2 controller cabinet architecture, preserving all native communication protocols, safety interlock functions, and enabling switch behavior without requiring firmware reconfiguration or hardware adaptation. For maintenance engineers managing aging KR C2 installations, having a pre-tested KCP2 on the shelf eliminates the most dangerous variable in unplanned downtime: waiting for parts.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for KUKA KR C2 robot cells extends well beyond the teach pendant itself. When scheduling a planned shutdown to inspect or replace the KCP2 unit, experienced maintenance teams use the opportunity to audit the entire control cabinet and robot system simultaneously — reducing the number of future unplanned stoppages.

Begin with the KR C2 controller cabinet power supply module (KPS600 or equivalent), verifying output voltage stability under load. A degraded power supply is a common root cause of intermittent KCP2 communication faults and display anomalies that are often misdiagnosed as pendant failures. While the cabinet is open, inspect the KR C2 main computer board (KRC2 PC unit) for capacitor bulging, dust accumulation on heatsinks, and secure seating of all memory modules.

The KCP2 pendant cable — a coiled, high-flex cable assembly connecting the pendant to the controller — is subject to continuous mechanical stress during daily operation. Cable jacket cracking, broken shield continuity, and connector pin corrosion are leading causes of pendant communication errors. Stocking a spare KCP2 cable assembly alongside the pendant unit itself is strongly recommended for any facility running multiple KR C2 cells.

During the same maintenance window, verify the condition of the KR C2 servo drive modules (KSD series). These drives govern axis motion and are directly commanded through programs loaded and tested via the KCP2 interface. A faulty servo drive can produce axis errors that appear as teach pendant faults during program execution. Inspect drive status LEDs, check for overtemperature warnings in the controller log, and confirm that all drive connectors are seated and free of corrosion.

The safety relay module within the KR C2 cabinet — responsible for processing E-Stop, enabling switch, and safeguard signals — should be tested for correct response time and channel symmetry. Since the KCP2’s enabling switch and E-Stop feed directly into this module, a degraded safety relay can cause nuisance trips or, more critically, fail to stop robot motion when commanded. Replace the safety relay module proactively if it has exceeded its rated switching cycles.

I/O modules connected to the KR C2 system, including digital input/output boards interfacing with external PLCs, conveyors, and fixtures, should be inspected for blown fuses, loose terminal connections, and LED fault indicators. Signal isolation modules protecting analog inputs from field noise are also worth checking, particularly in welding environments where high-frequency interference is prevalent. Terminal blocks and cable ferrules throughout the cabinet should be re-torqued to specification during any major maintenance interval.

For facilities integrating KUKA robots with external Siemens S7 PLCs or Profibus/Profinet communication modules, verify that the fieldbus interface card within the KR C2 controller is firmly seated and that network termination resistors are correctly installed. Communication dropouts between the robot controller and the plant PLC are a frequent source of production interruptions that can be prevented through periodic cable and connector inspection.

Finally, review the KR C2 battery backup unit, which preserves robot position data and controller parameters during power outages. A depleted battery will cause position reference loss on the next power cycle, requiring a full mastering procedure — a time-consuming process that can be entirely avoided with a scheduled battery replacement every two years.

Strategic Replacement Solutions

The KUKA KR C2 platform has been in service at manufacturing facilities worldwide for over two decades. While KUKA has transitioned its current product line to the KR C4 and KR C5 controller generations, a substantial installed base of KR C2 systems remains in active production — particularly in automotive body shops, foundries, and general manufacturing plants where capital equipment replacement cycles are long and the cost of revalidating robot programs on a new controller platform is prohibitive.

For these facilities, sourcing original KUKA-KCP2 spare units is the most operationally sound strategy for extending KR C2 system life. An original KCP2 replacement requires no software reconfiguration, no safety function revalidation, and no retraining of operators — it is a direct swap that restores full system functionality within the time it takes to transfer the pendant cable connector. This stands in sharp contrast to aftermarket or refurbished units, which may lack current firmware compatibility, exhibit degraded enabling switch response, or fail safety certification audits.

Maintaining a minimum stock of one KCP2 unit per robot cell cluster — or at minimum one unit per facility — is a widely adopted best practice among maintenance managers responsible for high-utilization robotic systems. The cost of a single hour of unplanned downtime in a high-volume production environment typically exceeds the cost of stocking multiple spare pendant units by a significant margin. Proactive inventory of the KCP2, combined with the associated cable assembly and key switch, constitutes a complete pendant replacement kit that can be deployed by a single technician in under 30 minutes.

All units supplied by TOPNLMS are tested prior to shipment for display function, enabling switch continuity, E-Stop circuit integrity, and connector pin condition. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is this KCP2 unit compatible with all KR C2 controller variants?
The KUKA-KCP2 is designed for the standard KR C2 controller platform. Compatibility with specific KR C2 sub-variants (e.g., KR C2 edition2005) should be confirmed against your controller’s serial number and software version. Contact our technical team with your controller details for pre-purchase compatibility verification.

Q2: What is included in the 12-month warranty?
The warranty covers functional defects in the display, enabling switch, E-Stop circuit, and communication interface under normal industrial operating conditions. Physical damage resulting from drops, cable mishandling, or unauthorized disassembly is excluded. Warranty claims are processed with return shipping support and priority replacement dispatch.

Q3: How is the unit tested before shipment?
Each KCP2 unit undergoes pre-shipment functional testing covering LCD display integrity, enabling switch 3-position response, E-Stop dual-channel continuity, connector pin inspection, and cable interface verification. A test report is available upon request for quality-critical procurement processes.

Q4: What is the recommended spare inventory strategy for a multi-robot facility?
For facilities operating 5 or more KR C2 robots, we recommend maintaining a minimum of one KCP2 unit and one pendant cable assembly in on-site stock at all times. For facilities with 10+ robots or 24/7 production schedules, a ratio of one spare per 5–8 robots is advisable. Bulk procurement pricing is available — contact our sales team for volume quotation.
