KUKA KSD1-64 KCP2 Teach Pendant Replacement/Upgrade

Product Overview

KUKA KSD1-64 KCP2 Teach Pendant Replacement/Upgrade Solution: Seamless Transition from Legacy KR C2 Systems

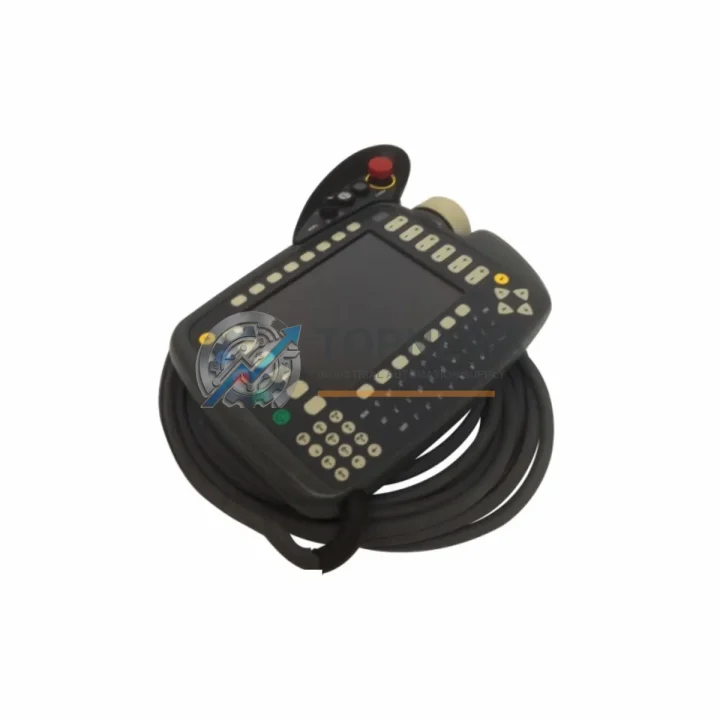

The KUKA KSD1-64 (also referenced as 00-117-345, 00-198-959, 3080-AK, 00-130-547) is the standard KCP2 series teach pendant designed for KUKA KR C2 robot controllers. As KUKA progressively phases out KR C2 platform support and migrates its installed base toward KR C4 and smartPAD-based architectures, many end-users operating legacy KR C2 cells face an urgent need for a reliable, drop-in KSD1-64 replacement that preserves existing wiring, programming logic, and cabinet footprint without forcing a full controller overhaul.

TOPNLMS stocks verified KSD1-64 units sourced from decommissioned production lines and certified refurbishment channels. Each unit undergoes pre-shipment functional testing covering display integrity, keypad response, emergency stop circuit continuity, and KCP2 communication handshake with the KR C2 controller bus. Units ship from Xiamen with full documentation and a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A KSD1-64 replacement rarely occurs in isolation. In most KR C2 retrofit scenarios, the teach pendant failure is symptomatic of broader controller aging. During the same maintenance window, engineers commonly address the KR C2 controller cabinet’s power supply module (KUKA KPS-600 or KPS-1500) to eliminate voltage instability that accelerates pendant failures. The KR C2 main computer board (PC board assembly, often referenced as the C2-BOX or KRC2-PC) is another frequent co-replacement item, particularly when the controller exhibits communication dropouts or boot failures alongside pendant issues.

For cells running multi-axis coordinated motion, the KUKA KSD series servo drives — including KSD1-16, KSD1-32, and KSD1-48 — share the same KR C2 drive bus architecture as the KSD1-64 and are often inspected or replaced as a set during a planned retrofit. If the robot is a KR 6, KR 16, or KR 30 variant, the axis computer module (AX5806 or equivalent) may also require attention when upgrading the pendant to restore full diagnostic visibility.

Communication continuity is critical in multi-robot cells. The KR C2 controller communicates with upstream SCADA or PLC systems — commonly Siemens S7-300, S7-400, or Allen-Bradley ControlLogix platforms — via DeviceNet, PROFIBUS-DP, or Ethernet/IP. Replacing the KSD1-64 pendant does not interrupt these fieldbus connections, but it is good practice to verify the KUKA DeviceNet interface board (DSE-IBS or equivalent) and the PROFIBUS master/slave card are seated correctly after any cabinet intervention.

For facilities planning a longer-term migration from KR C2 to KR C4, the KSD1-64 replacement buys critical uptime while the migration is engineered. The KR C4 platform uses the smartPAD (KCP4) teach pendant, which is not backward-compatible with KR C2 wiring — making the KSD1-64 the only viable short-term solution for KR C2 cells. Alongside the pendant, facilities often stock the KR C2 teach pendant cable assembly (KCP2 cable, typically 10 m) as a consumable spare, since cable jacket wear is a common secondary failure mode in high-cycle welding or palletizing applications.

For cells where the KR C2 controller interfaces with a KUKA-compatible HMI panel or operator station, the pendant replacement is typically coordinated with a review of the operator panel wiring harness and the safety PLC interface (often a Pilz PNOZ or equivalent) to confirm E-stop loop integrity after the swap.

Retrofit Guidance FAQ

Q: Does replacing the KSD1-64 require re-loading the robot program?
No. The KSD1-64 is a peripheral input/output device. Robot programs, tool data, base data, and machine parameters are stored on the KR C2 controller’s hard drive or CompactFlash card — not on the teach pendant. Swapping the pendant does not erase or alter any stored program data.

Q: Is the KCP2 cable connector on this unit identical to the original?
Yes. The KSD1-64 uses the standard KCP2 connector and cable pinout. No wiring modification, adapter, or re-termination is required. Disconnect the cable from the failed pendant, connect it to the replacement unit, and power on the controller.

Q: Will this pendant work with KSS 5.4 and KSS 6.0?
Yes. The KSD1-64 is compatible with KSS 5.x (including 5.4, 5.5, 5.6) and KSS 6.x. No firmware update to the pendant is required for standard KR C2 operation.

Q: Can I use this pendant on a KR C2 ed05 controller?
Yes. The KCP2 interface is consistent across KR C2 and KR C2 ed05 variants. The KSD1-64 is compatible with both.

Q: What if the controller does not recognize the pendant after swap?
First, verify the KCP2 cable is fully seated at both the pendant and controller ends. Power-cycle the controller. If the issue persists, check the KCP2 bus termination resistor inside the cabinet. In rare cases, the KCP2 interface card on the controller main board may require inspection. TOPNLMS provides post-sale technical support to assist with commissioning.

Q: Is there a physical space concern when installing this pendant?
No. The KSD1-64 is dimensionally identical to all KCP2-series pendants. It fits the standard KCP2 wall cradle and cabinet hook without modification. Weight is approximately 800 g, consistent with the original specification.

Q: What communication protocols does the KR C2 support alongside this pendant?
The KR C2 controller supports PROFIBUS-DP, DeviceNet, Ethernet/IP, and EtherCAT (with appropriate interface cards). The KSD1-64 pendant replacement does not affect any of these fieldbus configurations.

Warranty Assurance

Every KSD1-64 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Pre-shipment testing includes display function verification, full keypad matrix scan, E-stop dual-channel continuity check, and KCP2 communication handshake validation. Units that do not pass all test criteria are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment. Our standard response time for warranty claims is 1–2 business days. Replacement units are dispatched from Xiamen; expedited shipping options are available for urgent production line situations.

For procurement teams, TOPNLMS provides a pre-shipment inspection report upon request, including serial number documentation and test results. This supports incoming quality control processes and asset management records. Volume orders for MRO stocking programs are accommodated with lead-time commitments and reserved inventory arrangements.

Contact our technical sales team before purchase if you need to confirm compatibility with a specific KR C2 serial number range, KSS version, or robot model. We maintain a compatibility database covering the major KR C2 production years and can advise on any edge cases.
