KUKA KCP2-VKCP2 Ruggedized Robot Teach Pendant

Product Overview

KUKA KCP2-VKCP2 Ruggedized Robot Teach Pendant: Industrial Resilience for Harsh Environments

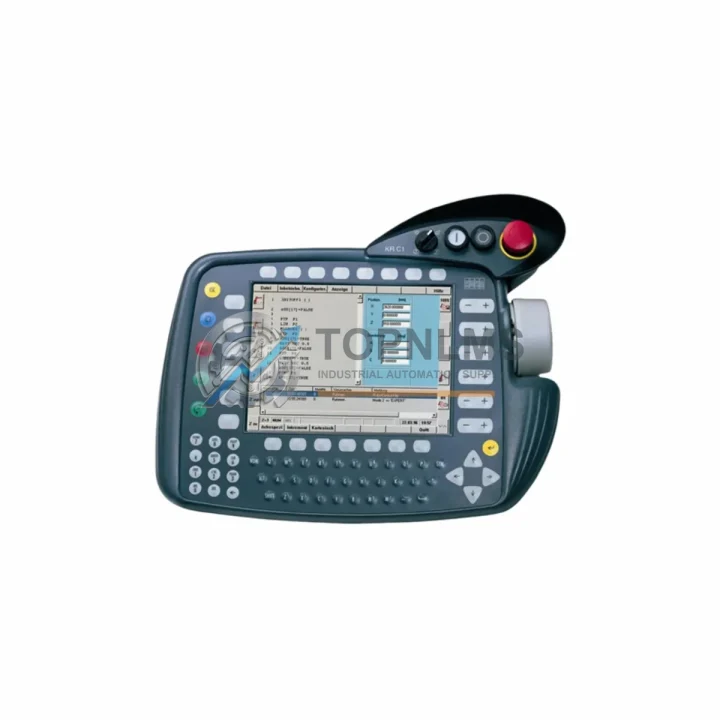

The KUKA KCP2-VKCP2 (also referenced as VKCP2) is the factory-standard teach pendant engineered for the KUKA KR C2 robot controller series — one of the most widely deployed robot control platforms in global heavy industry. Designed to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulate, mechanical vibration, and intense electromagnetic interference, the KCP2-VKCP2 is the operator’s primary interface for programming, jogging, and monitoring KUKA industrial robots across continuous production lines and safety-critical installations.

Built to withstand the physical demands of automotive body shops, foundry floors, metal fabrication cells, and chemical processing plants, the KCP2-VKCP2 pendant features a ruggedized housing with reinforced cable strain relief, a high-contrast display readable under direct industrial lighting, and a tactile keypad layout that remains operable even when operators wear heavy-duty gloves. The enabling device (dead-man switch) and emergency stop button are integrated to meet functional safety requirements consistent with ISO 10218-1 and EN 954-1 Category 3 standards, making this pendant a core component of any compliant robot safety architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The KCP2-VKCP2 teach pendant does not operate in isolation — it is the human-machine interface at the apex of a tightly integrated robot control ecosystem. Within the KUKA KR C2 controller cabinet, the pendant communicates with the main computer board (KPC) and the robot control card (RDC — Robot Drive Computer) to deliver real-time axis control, program execution, and diagnostic feedback. When the KCP2-VKCP2 is paired with a properly maintained KUKA KPS-600 power supply unit and the KUKA KSD servo drive modules (such as the KSD1-16 or KSD1-48), the entire drive chain benefits from coordinated fault detection and safe-state transitions initiated directly from the pendant’s E-Stop circuit.

In installations where the robot cell is integrated into a broader PLC-controlled production line — for example, using a Siemens S7-300 or S7-400 PLC with PROFIBUS DP or DeviceNet communication — the KCP2-VKCP2 pendant’s operator commands are synchronized with upstream line controllers through the KR C2’s fieldbus interface card. This ensures that robot motion interlocks, conveyor stop signals, and safety zone monitoring from external safety relay modules (such as Pilz PNOZ or Siemens 3SK safety relays) are correctly reflected in the pendant’s status display, giving operators a unified view of cell safety state.

For facilities running mixed automation architectures, the KCP2-VKCP2 is frequently deployed alongside KUKA SmartPAD pendants on newer KR C4 cells, allowing maintenance teams to standardize spare-part inventories across both controller generations. The pendant’s cable assembly — terminated with the standard KCP2 connector — is also compatible with aftermarket cable extensions used in large-format robot cells where the controller cabinet is mounted remotely from the working envelope.

In high-vibration environments such as press-tending or forging applications, the pendant’s reinforced cable entry and strain-relief boot protect the internal wiring harness from fatigue failure — a common failure mode in lesser-quality aftermarket pendants. Facilities that also deploy KUKA KR C2 battery backup modules for program retention benefit from the KCP2-VKCP2’s ability to display low-battery warnings and initiate controlled program saves before power interruption.

Application in Critical Infrastructure

The KUKA KCP2-VKCP2 teach pendant has established a proven service record across the most demanding sectors of global critical infrastructure:

Automotive Manufacturing: In body-in-white welding lines and paint shop transfer systems, the KCP2-VKCP2 is the standard operator interface for KUKA spot-welding and material-handling robots. Cycle times of under 6 seconds per weld, combined with 24/7 production schedules, demand a pendant that can withstand continuous handling, weld spatter contamination, and the thermal cycling of enclosed booth environments. The pendant’s IP54 rating and sealed keypad membrane provide reliable protection against weld fume condensation and metallic particulate ingress.

Foundry and Metal Casting: Foundry environments present some of the harshest conditions for any electronic equipment — radiant heat from molten metal, sand and silica dust, and high-frequency vibration from shakeout conveyors. The KCP2-VKCP2’s ruggedized housing and EMI-shielded cable assembly maintain signal integrity in these conditions, ensuring that robot programs for ladle handling, die-casting extraction, and deburring operations execute without communication errors between the pendant and the KR C2 controller.

Oil, Gas, and Chemical Processing: In hazardous-area robot installations used for drum handling, valve actuation, and inspection tasks, the KCP2-VKCP2’s integrated safety functions — particularly the three-position enabling device — are essential for compliance with process industry safety standards. Operators can jog robots in T1 (manual reduced speed) mode with confidence that releasing or fully depressing the enabling device will immediately halt all robot motion, consistent with IEC 62061 and OSHA 1910.217 requirements.

Power Generation and Utilities: Nuclear and thermal power plant maintenance robots equipped with KUKA KR C2 controllers rely on the KCP2-VKCP2 for remote manipulation tasks in radiation-controlled or high-temperature zones. The pendant’s robust construction and deterministic communication protocol ensure that operator commands are executed without latency or packet loss, even in environments with significant gamma radiation-induced electromagnetic noise.

Mining and Heavy Industry: Underground mining automation and surface ore-processing facilities use KUKA robots for drilling, blasting-hole loading, and conveyor maintenance. The KCP2-VKCP2’s resistance to shock and vibration — validated through KUKA’s internal qualification testing — makes it the preferred pendant for these applications, where equipment is routinely subjected to blast concussion and heavy machinery vibration.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the KCP2-VKCP2?
All KCP2-VKCP2 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects, electronic component failure, and display malfunctions under normal industrial operating conditions. Warranty claims are processed directly through TOPNLMS — contact [email protected] with your order reference and a description of the fault. Replacement or repair is initiated within 5 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every KCP2-VKCP2 pendant undergoes a pre-shipment functional test protocol that includes power-on self-test verification, keypad continuity check, enabling device and E-Stop circuit validation, display pixel integrity test, and cable connector inspection. Units that fail any test parameter are quarantined and not shipped. A test pass certificate is available upon request for quality-critical procurement processes.

Q3: Is the KCP2-VKCP2 compatible with all KR C2 controller variants?
The KCP2-VKCP2 is compatible with the standard KUKA KR C2 controller and the KR C2 ed05 (Edition 2005) variant. It is not directly compatible with the KR C4 controller, which requires the KUKA SmartPAD (KCP4) pendant. If you are unsure which controller variant is installed in your facility, TOPNLMS technical support can assist with identification based on the controller serial number or nameplate data — contact [email protected].

Q4: Can TOPNLMS support long-term or repeat supply of the KCP2-VKCP2?
Yes. TOPNLMS maintains standing inventory of the KCP2-VKCP2 and related KUKA KR C2 spare parts to support planned maintenance programs, emergency breakdown replacement, and multi-site rollout projects. Volume pricing and priority allocation are available for customers with recurring procurement requirements. Lead times for standard orders are typically 3–7 business days for international shipment from Xiamen, China.
