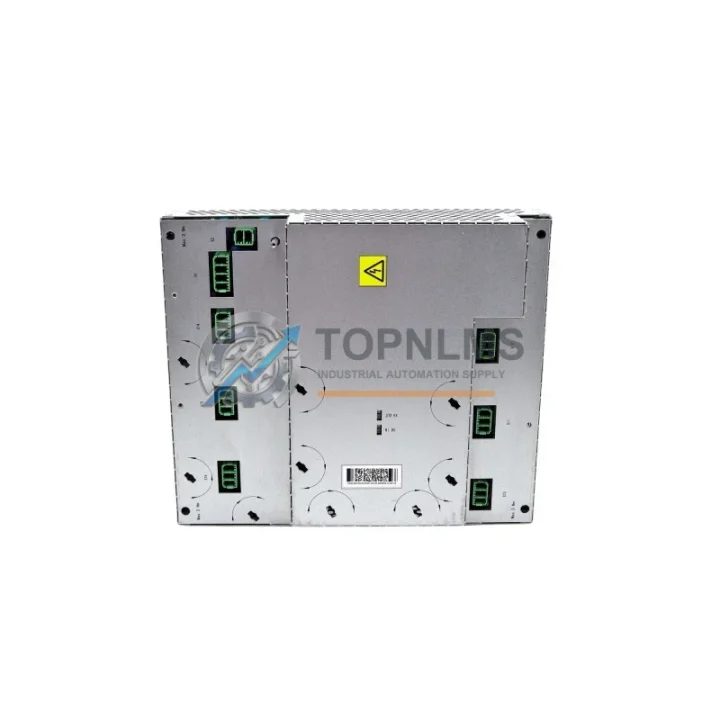

KUKA IRC4X00-171-602 Replacement/Upgrade for IRC4

Product Overview

KUKA IRC4X00-171-602 Replacement & Upgrade Solution for IRC4 Control Cabinet: Seamless Migration from Legacy Systems

The KUKA IRC4X00-171-602 is a critical control cabinet module designed for the KUKA IRC4 robot controller platform. As industrial facilities transition away from aging KRC2 and KRC4 legacy controllers, or replace discontinued IRC4-series boards due to wear, fault codes, or end-of-life supply constraints, this module serves as the authoritative drop-in replacement — preserving existing wiring harnesses, cabinet footprint, and communication architecture without requiring a full system overhaul.

Whether your facility operates KUKA KR 6, KR 16, KR 60, KR 120, or KR 210 articulated robots, the IRC4X00-171-602 integrates directly into the IRC4 control cabinet’s backplane, restoring full motion control, I/O coordination, and fieldbus communication with minimal downtime. This module is sourced from verified supply channels, individually tested prior to shipment, and backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRC4 control cabinet retrofit rarely involves a single component. In practice, engineers replacing the IRC4X00-171-602 often simultaneously address adjacent modules that have reached end-of-life or show degraded performance. During the migration process, the following components are commonly evaluated and replaced alongside this unit:

The KUKA KPS-600/20 power supply module is frequently replaced in tandem, as aging PSUs in KRC4 cabinets often exhibit voltage ripple that accelerates board-level failures. Ensuring a stable 24 VDC and 48 VDC rail before installing the IRC4X00-171-602 is a standard commissioning step. Similarly, the KUKA KEB servo drive unit — responsible for axis amplification — should be inspected for fault history, as drive-side errors are sometimes misdiagnosed as controller board failures.

On the communication side, facilities running PROFIBUS-DP networks will often inspect the KUKA PROFIBUS interface card (CI3) during the same maintenance window. For plants migrating toward EtherNet/IP or PROFINET architectures, the KUKA EtherNet/IP communication module can be installed alongside the IRC4X00-171-602 to modernize the fieldbus layer without replacing the entire controller. This is a common upgrade path for automotive body-in-white lines transitioning from legacy PROFIBUS to Ethernet-based I/O.

The KUKA SmartPAD teach pendant cable assembly and KCP2 pendant interface board are also frequently addressed during IRC4 cabinet overhauls, particularly when the original pendant shows communication dropouts or display faults. These components share the same cabinet harness routing as the IRC4X00-171-602 and are best replaced during the same planned downtime window to avoid repeat interventions.

For facilities managing multi-robot cells, the KUKA RoboTeam synchronization module and SafeRDW safety interface board may also require inspection. The SafeRDW in particular governs safety-rated stop functions (Category 0/1) and must be verified for compatibility after any control board replacement. Finally, the KUKA MFC3 (Multi-Function Card) — which handles analog I/O, encoder feedback, and internal diagnostics — is a common co-replacement item when the IRC4X00-171-602 is being swapped due to a system-wide fault condition rather than an isolated board failure.

Retrofit Guidance FAQ

Q: Do I need to rewire the cabinet when installing the IRC4X00-171-602?
No. The IRC4X00-171-602 uses the same connector pinout as the original OEM module. Existing harnesses, terminal blocks, and cable routing remain unchanged. Simply disconnect the faulty board, seat the replacement into the same slot, and reconnect the original connectors.

Q: Will my existing KSS robot programs still run after replacement?
Yes. The IRC4X00-171-602 is compatible with KUKA System Software (KSS) 8.x. No re-teaching or program modification is required. The controller will resume normal operation after a cold boot following module installation.

Q: Is the PROFIBUS or EtherNet/IP configuration preserved?
Fieldbus configuration is stored in the KRC4 controller’s system partition, not on the module itself. After replacement, the controller will reload the existing network configuration automatically. No GSD file re-import or IP address reassignment is needed in standard replacement scenarios.

Q: What if the cabinet has limited physical space for installation?
The IRC4X00-171-602 is dimensionally identical to the original IRC4-series module. No additional mounting hardware, spacers, or cabinet modifications are required. The module slots directly into the existing board position.

Q: How do I verify the module is functioning correctly after installation?
After installation and cold boot, navigate to the KSS diagnostic screen and confirm no E1291/E1292 or board-communication fault codes are present. Run a manual jog cycle on all axes to verify motion control restoration. Check the fieldbus status LED on the communication interface card to confirm network re-establishment.

Q: Can this module replace IRC4X00 variants with different suffix codes?
The IRC4X00-171-602 is the specific variant for this board position. Cross-compatibility with other IRC4X00 suffix variants (e.g., -171-601 or -171-603) depends on the specific robot model and cabinet revision. Contact TOPNLMS with your robot serial number and KSS version for a confirmed compatibility check before ordering.

Warranty Assurance

Every KUKA IRC4X00-171-602 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each module undergoes a multi-point outgoing inspection including visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit — not a repair-and-return process — to minimize your production downtime. Warranty claims are processed within 2 business days of fault confirmation. Our after-sales team is reachable via email and phone for technical support throughout the warranty period.

For procurement teams, TOPNLMS maintains bonded stock of high-demand IRC4-series modules to support urgent MRO (Maintenance, Repair & Operations) requirements. Express shipping options are available to most destinations, with standard lead times of 3–7 business days for international orders and 1–3 business days for domestic (China) delivery.

All units are shipped with a test report, packing list, and commercial invoice suitable for customs clearance. Export documentation for HS Code 8537.10 (industrial control panels and boards) is prepared as standard.
