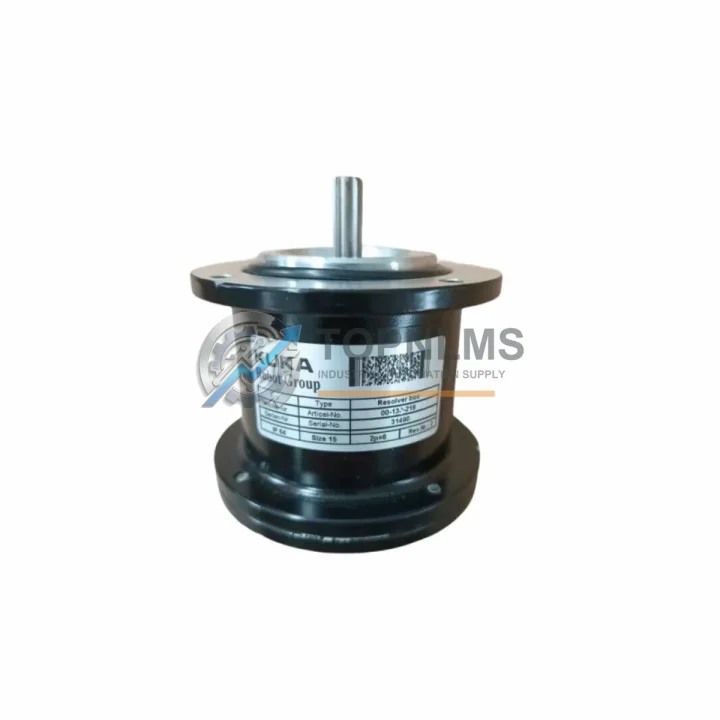

KUKA GA12-00-192-268 Replacement for KRC4 RDC Series

Product Overview

KUKA GA12-00-192-268 Replacement & Upgrade Solution for KRC4 RDC Series

Upgrading or replacing the KUKA GA12-00-192-268 RDC (Resolver Data Converter) encoder board is one of the most critical steps in modernizing a KRC4-based robot control system. Whether your existing GA12-00-192-268 has failed due to firmware corruption, hardware fault, or end-of-life discontinuation, this replacement module provides a seamless, drop-in solution engineered to restore full axis-feedback integrity across your KUKA KRC4 controller platform.

The GA12-00-192-268 is the primary RDC board used in KUKA KRC4 and KRC4 compact controllers, responsible for converting resolver signals from all robot axes into digital position data processed by the KRC4 main computer (KPC). It interfaces directly with the KRC4 cabinet’s internal backplane and communicates via the proprietary KUKA RDC bus. Cross-reference part numbers include 00-246-872 and 00-179-517, which are functionally equivalent variants used across different production batches and regional configurations.

When migrating from an older KRC2 or KRC3 controller platform to KRC4, the RDC architecture changes significantly. The legacy KRC2 DSE-IBS-C33 resolver interface and the KRC3 RDC3 board are not electrically or protocol-compatible with the KRC4 RDC bus. Customers undertaking a full KRC4 retrofit must replace not only the GA12-00-192-268 RDC board but also verify compatibility of the KRC4 power supply unit (KPS-600), the KRC4 servo drive modules (KSD), and the SmartPAD teach pendant cable harness. In many retrofit projects, the KRC4 cabinet’s X11 safety interface connector pinout must also be re-mapped to match the new controller’s safety logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GA12-00-192-268 replacement rarely involves a single component swap. In practice, field engineers undertaking a KRC4 RDC board migration must coordinate several interdependent subsystems to ensure the robot returns to full production capability with minimal downtime.

The KRC4 servo drive modules (KSD-48-10 or KSD-48-20) must be verified for firmware alignment with the replacement RDC board, as mismatched KSS versions between the KPC main computer and the RDC firmware can trigger axis-specific fault codes (e.g., KSS 00223 or KSS 00224) during startup. In parallel, the KRC4 power supply unit (KPS-600) should be inspected for capacitor aging, as a degraded KPS can cause intermittent RDC communication faults that mimic a faulty encoder board.

For robots with external axes — such as a KUKA KL 1500 linear track or a KUKA DKP-400 positioner — the RDC board’s external axis resolver channels (A7/A8) must be re-commissioned after board replacement. This requires re-mastering via the SmartPAD using the EMT (Electronic Mastering Tool) or a dial gauge mastering procedure, depending on the robot model and axis configuration.

Wiring integrity is equally critical. The resolver cable harness running from each motor’s resolver connector to the RDC board’s X20–X26 input ports should be inspected for pin corrosion, shield continuity, and correct impedance. A damaged resolver cable on axis 1 or axis 2 — common on high-cycle KR 6 R900 or KR 10 R1100 sixx models — can cause the replacement RDC board to report mastering loss errors even when the board itself is fully functional.

Communication module compatibility is another consideration for cells using KUKA.ProfiNet, KUKA.EtherNet/IP, or KUKA.DeviceNet fieldbus options. The KRC4 communication board (CCU — Cabinet Control Unit) manages fieldbus traffic independently of the RDC board, but a controller reboot following RDC replacement will trigger a full PLC handshake cycle. Customers using a Siemens S7-300 or S7-1500 PLC as the cell controller should verify that the PROFINET device name and IP address assignments are retained in the KRC4 network configuration after the board swap.

For customers managing a multi-robot cell, it is advisable to stock a spare GA12-00-192-268 RDC board alongside other high-wear components such as the KRC4 fan assembly, the SmartPAD cable (00-168-334), and the KRC4 battery pack (00-130-293). Maintaining a vetted spare inventory reduces mean time to repair (MTTR) from days to hours in the event of an unplanned RDC failure during production.

Retrofit Guidance FAQ

Q: Is the GA12-00-192-268 a direct plug-in replacement for 00-179-517?
A: Yes. Both part numbers are functionally equivalent and share the same PCB form factor, connector pinout, and RDC bus protocol. No wiring changes are required when substituting one for the other within a KRC4 cabinet.

Q: Do I need to re-master the robot after replacing the RDC board?
A: Yes. Replacing the RDC board clears the stored mastering offsets. All axes must be re-mastered using the SmartPAD mastering menu (Startup > Master the robot) with either the EMT tool or the dial gauge method, depending on your robot model.

Q: Can the GA12-00-192-268 be used in a KRC4 compact controller?
A: Yes. The KRC4 compact uses the same RDC board variant as the standard KRC4. Verify the KSS software version (minimum KSS 8.2) before installation.

Q: What KSS firmware versions are compatible?
A: The GA12-00-192-268 is compatible with KSS 8.2 through KSS 8.7. If your controller is running KSS 8.1 or earlier, a firmware update is recommended before installing the replacement board.

Q: Will replacing the RDC board affect my robot program or safety configuration?
A: The robot program (SRC/DAT files) and safety configuration (WorkVisual project) are stored on the KPC hard drive or SSD, not on the RDC board. These are unaffected by the board swap. However, the safety configuration must be re-activated via WorkVisual after the controller restarts with the new board.

Q: What physical space is required for installation?
A: The GA12-00-192-268 occupies the standard RDC slot in the KRC4 cabinet’s lower section. No additional cabinet space is required. Ensure the controller is powered off and the KPS-600 discharge cycle is complete (minimum 5 minutes after power-off) before handling the board.

Q: Is this compatible with KUKA robots using EtherCAT-based drives?
A: The RDC board interfaces with resolver-based motors. For KRC4 controllers using KSM (KUKA Servo Module) drives with integrated encoders, the RDC board role is different. Confirm your robot’s drive architecture before ordering.

Warranty Assurance

Every GA12-00-192-268 KRC4 RDC encoder board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process including power-on self-test, resolver channel continuity check, and bus communication validation to confirm the board meets OEM performance specifications.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned item. Our after-sales response target is within 24 business hours of a warranty claim submission. Customers are encouraged to document the fault code, controller KSS version, and installation date when submitting a claim to expedite processing.

Stock is maintained in our Xiamen warehouse and is available for same-day dispatch on confirmed orders placed before 15:00 CST. International shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking provided at the time of dispatch. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all cross-border shipments.

For procurement inquiries, bulk pricing, or technical pre-sales consultation, contact our industrial automation team directly.
