KUKA 00-320-104 SmartPAD Replacement for KRC5

Product Overview

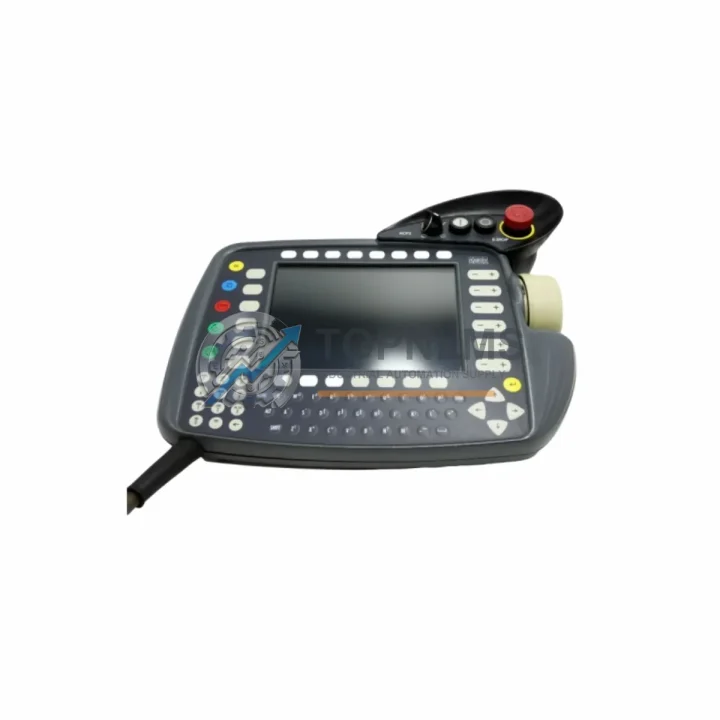

KUKA 00-320-104 SmartPAD Replacement for KRC5 — Seamless Transition, Zero Compromise

When a KUKA robot controller goes offline due to a failed or damaged teach pendant, every minute of downtime translates directly into production loss. The KUKA 00-320-104 SmartPAD is the factory-designated human-machine interface (HMI) for the KRC5 robot controller platform, providing operators with full access to motion programming, safety configuration, I/O diagnostics, and real-time system monitoring. At TOPNLMS, we maintain verified stock of the 00-320-104 SmartPAD to support urgent replacement, planned maintenance, and system upgrade projects across automotive, electronics, logistics, and heavy industrial environments.

The SmartPAD connects to the KRC5 controller via a dedicated high-speed data cable and communicates over KUKA’s proprietary KLI (KUKA Line Interface) and EtherCAT-based internal bus architecture. This means that when replacing a failed unit, no software reconfiguration of the controller is required — the new SmartPAD is recognized automatically upon connection, preserving all existing robot programs, safety parameters, and I/O mappings stored on the KRC5 controller cabinet. This plug-and-operate compatibility is critical for minimizing downtime on continuous production lines.

For facilities migrating from older KUKA controller generations — such as the KRC4 or KRC2 platforms — the transition to KRC5 with the 00-320-104 SmartPAD represents a significant leap in operator ergonomics and system diagnostics. The SmartPAD’s multi-touch display, integrated safety stop buttons, and configurable soft-key layout reduce operator training time and improve response speed during fault conditions. The companion KUKA smartPAD-2 cable assembly (part reference 00-291-556, included in this SKU bundle) ensures a secure, vibration-resistant connection between the pendant and the controller enclosure, which is essential in high-cycle welding, palletizing, or press-tending applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an older KUKA platform to the KRC5 ecosystem involves more than swapping the teach pendant. In most retrofit projects, the KUKA KRC5 controller cabinet itself is the anchor of the upgrade — housing the servo drives, safety controller, power supply modules, and fieldbus communication cards that the SmartPAD interfaces with. When the 00-320-104 SmartPAD is deployed as a replacement, it is common to simultaneously audit the KUKA KPS600 power supply module within the cabinet, as aging power supplies are a frequent secondary failure point in high-cycle robot cells.

For facilities running multi-robot cells, the KUKA KR C5 micro controller is increasingly used for collaborative and small-payload robots, and the same 00-320-104 SmartPAD serves as the unified HMI across the entire cell — reducing spare parts inventory complexity. Communication between the KRC5 and upstream SCADA or MES systems is typically handled via the KUKA.PLC mxAutomation interface or a dedicated PROFINET IO device card installed in the controller, both of which remain fully operational when the SmartPAD is replaced without controller reconfiguration.

In welding and press-tending applications, the SmartPAD works in conjunction with the KUKA.ArcTech or KUKA.ServoGun technology packages, which are software options resident on the KRC5 controller. Replacing the pendant does not affect these packages. However, if the migration also involves upgrading from KRC4 to KRC5, the KUKA WorkVisual 6.0 engineering suite is required to transfer and adapt robot programs, I/O configurations, and safety parameters to the new controller architecture. TOPNLMS can advise on the software licensing requirements as part of the procurement process.

For installations where the SmartPAD cable (00-291-556) runs through cable management channels or festoon systems, we recommend inspecting the KUKA smartPAD cable drag chain assembly for wear at the same time as the pendant replacement. A degraded cable is often the root cause of intermittent SmartPAD communication errors before complete pendant failure occurs.

Retrofit Guidance FAQ

Q1: Can the KUKA 00-320-104 SmartPAD replace my existing KRC4 teach pendant directly?
No — the 00-320-104 is designed exclusively for the KRC5 controller platform. If you are still operating on KRC4, you will need the KCP4 pendant (KUKA part 00-168-334 or equivalent). However, if your project involves a full controller upgrade from KRC4 to KRC5, the 00-320-104 SmartPAD is the correct HMI for the new system. TOPNLMS can supply both the SmartPAD and advise on KRC5 controller availability to support a complete migration.

Q2: Will my existing robot programs and safety configurations be preserved when I replace the SmartPAD?
Yes. All robot programs, safety parameters, I/O assignments, and technology package configurations are stored on the KRC5 controller’s internal storage — not on the SmartPAD itself. Replacing the 00-320-104 pendant is a hardware-only swap. The new unit will load the controller’s existing configuration automatically upon connection. No reprogramming is required.

Q3: What communication protocols does the KRC5 SmartPAD support, and are they compatible with my existing plant network?
The KRC5 controller supports PROFINET, EtherNet/IP, EtherCAT, and DeviceNet (via option cards). The SmartPAD communicates with the controller over an internal EtherCAT bus — this is independent of your plant-level fieldbus. Your existing PROFINET or EtherNet/IP network connection to the KRC5 is unaffected by a SmartPAD replacement. If you are migrating from a PROFIBUS-based KRC2 system, a fieldbus gateway or protocol converter will be required at the controller level.

Q4: How do I verify physical fitment and cable compatibility before ordering?
The 00-320-104 SmartPAD uses the standard KRC5 pendant connector and is supplied with the 00-291-556 cable assembly in this SKU bundle. The pendant mounting bracket and cable entry points on the KRC5 cabinet are standardized across all KRC5 variants (standard, micro, nano). If you are unsure about your controller variant or cable routing requirements, contact TOPNLMS with your robot serial number and we will confirm compatibility before shipment.

Warranty Assurance

Every KUKA 00-320-104 SmartPAD shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a functional verification process that includes power-on testing, display calibration check, E-Stop circuit continuity verification, and communication interface validation. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection confirming the defect is not caused by physical damage, incorrect installation, or use outside the specified operating parameters. Our technical team is available to assist with installation guidance, fault diagnosis, and compatibility confirmation before and after purchase.

For urgent replacement requirements — particularly in automotive or electronics manufacturing environments where robot downtime directly impacts production output — TOPNLMS maintains buffer stock of the 00-320-104 SmartPAD to support same-day or next-business-day dispatch. Contact us with your delivery timeline and we will confirm availability and shipping options.
