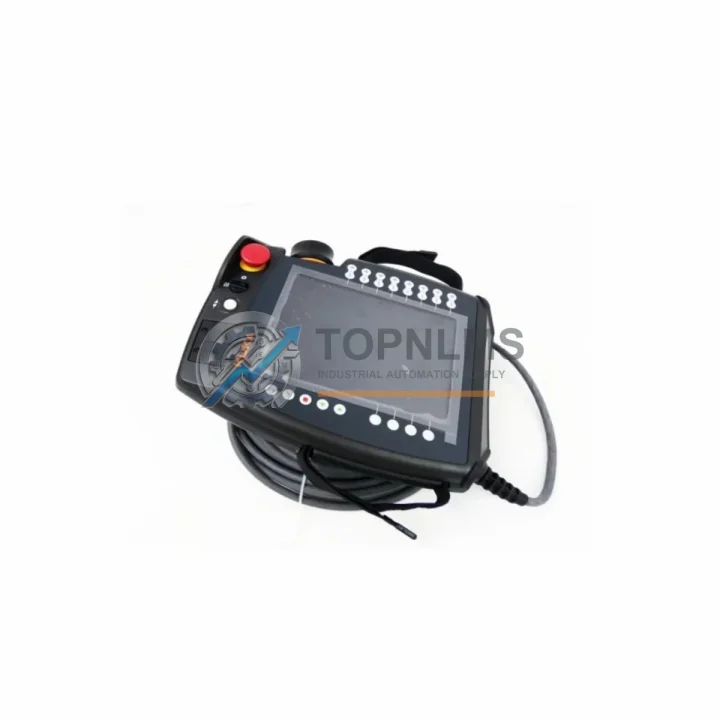

KUKA 00-291-556 KCP Teach Pendant Replacement for KRC2/KRC4

Product Overview

KUKA 00-291-556 KCP Teach Pendant Replacement for KRC2/KRC4: Seamless Transition & Legacy System Compatibility

When your KUKA robot cell depends on a KCP teach pendant and the original unit fails or reaches end-of-life, unplanned downtime can cascade across an entire production line. The KUKA 00-291-556 KCP Teach Pendant is a direct, plug-and-play replacement engineered for KRC2 and KRC4 robot controller platforms — the two most widely deployed KUKA controller generations in automotive, metal fabrication, logistics, and general industrial automation environments worldwide.

This unit preserves full compatibility with the original KCP interface standard, meaning your existing cable harness, enabling switch wiring, and emergency-stop circuit require no modification. Engineers who have maintained KUKA KR 6, KR 16, KR 30, KR 60, or KR 210 series robots will find the physical connector pinout, cable length, and grip ergonomics identical to the factory-fitted pendant — a critical advantage when replacement must happen during a scheduled maintenance window or an emergency breakdown.

Compatibility Comparison Table

Seamless Upgrade Solutions

A teach pendant replacement rarely happens in isolation. In most KRC2 and KRC4 retrofit projects, the pendant swap is part of a broader effort to restore or modernize the robot cell. During the upgrade process, engineers frequently address the KRC2 controller cabinet power supply module — aging capacitors and fan assemblies in the controller cabinet are common failure points that surface at the same time as pendant degradation. Replacing the KRC4 smartPAD cable assembly alongside the pendant ensures the communication link between the operator interface and the controller remains reliable after the swap.

For cells running coordinated multi-robot tasks, the KUKA KRC4 DeviceNet or PROFIBUS gateway module may also require inspection, particularly if the legacy KRC2 system used a different fieldbus topology than the target KRC4 architecture. Migrating from a KRC2-based cell to a KRC4 platform often involves updating the KUKA KR C4 compact controller or the KR C4 smallsize-2 cabinet to accommodate the new pendant and updated KSS 8.x software stack.

In applications where the robot interfaces with a Siemens S7-300 or S7-1500 PLC via PROFINET, the KUKA PROFINET interface board installed in the KRC4 cabinet must be verified for firmware compatibility with the replacement pendant’s KSS version. Similarly, cells that rely on a KUKA KR C4 I/O module for digital signal exchange with conveyors, grippers, or safety PLCs should be tested end-to-end after the pendant is swapped to confirm that all I/O mappings remain intact.

Welding cells using a KUKA arc welding technology package (ArcTech) should verify that the welding process parameters stored in the KSS program files are accessible and correctly displayed on the replacement pendant before resuming production. For palletizing and material-handling lines, the KUKA.PalletTech or KUKA.ConveyorTech software module license is tied to the controller, not the pendant, so no re-licensing is required after a pendant-only replacement.

Finally, facilities maintaining a mixed fleet of KUKA KR 6 R700 sixx, KR 10 R1100, and KR 16 R1610 robots on a shared KRC4 network should confirm that the replacement pendant’s teach mode and jog speed settings are correctly configured per robot model before handing the cell back to production operators.

Retrofit Guidance FAQ

Q: Do I need to re-program the robot after replacing the teach pendant?
A: No. The KCP teach pendant is a human-machine interface device only. All robot programs, tool data, base data, and system variables are stored on the KRC2 or KRC4 controller hard drive or CompactFlash card — not on the pendant. Replacing the pendant does not affect stored programs.

Q: Is the wiring connector identical to the original 00-291-556?
A: Yes. The replacement unit uses the same KCP proprietary multi-pin connector and cable specification. No adapter, re-pinning, or cable modification is required.

Q: Can this pendant be used interchangeably between a KRC2 and a KRC4 controller?
A: The 00-291-556 is compatible with both KRC2 (ed05/ed2005) and KRC4 platforms. However, the KSS software version on the controller determines which features are available on the pendant display. Always verify the KSS version before swapping between controller generations.

Q: What communication protocol does the KCP pendant use?
A: The KCP pendant communicates with the controller via KUKA’s proprietary KCP bus — a dedicated serial communication link integrated into the pendant cable. This is separate from any external fieldbus (PROFIBUS, PROFINET, DeviceNet) used for PLC communication.

Q: How much physical space does the replacement pendant require in the control cabinet?
A: The pendant hangs externally on the cabinet door hook or operator panel bracket. It does not occupy internal cabinet DIN rail space. The cable management path and hook mounting point are identical to the original unit.

Q: What is the recommended procedure for replacing the pendant on a live production line?
A: Power down the KRC2 or KRC4 controller, disconnect the original pendant cable at the controller interface panel, connect the replacement unit, power up the controller, and verify the pendant display initializes correctly and all safety functions (E-stop, enabling switch) are operational before resuming automatic mode.

Warranty Assurance

Every KUKA 00-291-556 KCP Teach Pendant shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification check covering display integrity, keypad response, enabling switch operation, emergency-stop contact continuity, and KCP connector pin condition. Units that do not pass this pre-shipment inspection are not offered for sale.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — with no requirement to return the defective unit for minor claims. For high-value warranty cases, a return merchandise authorization (RMA) process is available with prepaid return logistics support.

Stock is maintained in Xiamen, China, with express international shipping available to Europe, Southeast Asia, the Americas, and the Middle East. Standard lead time for in-stock units is 1–3 business days after payment confirmation. Expedited same-day dispatch is available for orders placed before 14:00 CST.

For procurement teams requiring documentation, TOPNLMS can provide a proforma invoice, packing list, certificate of origin, and test report upon request. All units are shipped with ESD-protective packaging and double-boxed for international freight.

Contact our industrial automation parts team for volume pricing, consignment stock arrangements, or technical pre-sales consultation:

📧 [email protected] | 📞 +86 18359293191
