KUKA 00-204-935 Ruggedized Robot Cable for Harsh Environments

Product Overview

KUKA 00-204-935/00-204-551 Ruggedized Robot Cable Assembly: Industrial Resilience for Harsh Environments

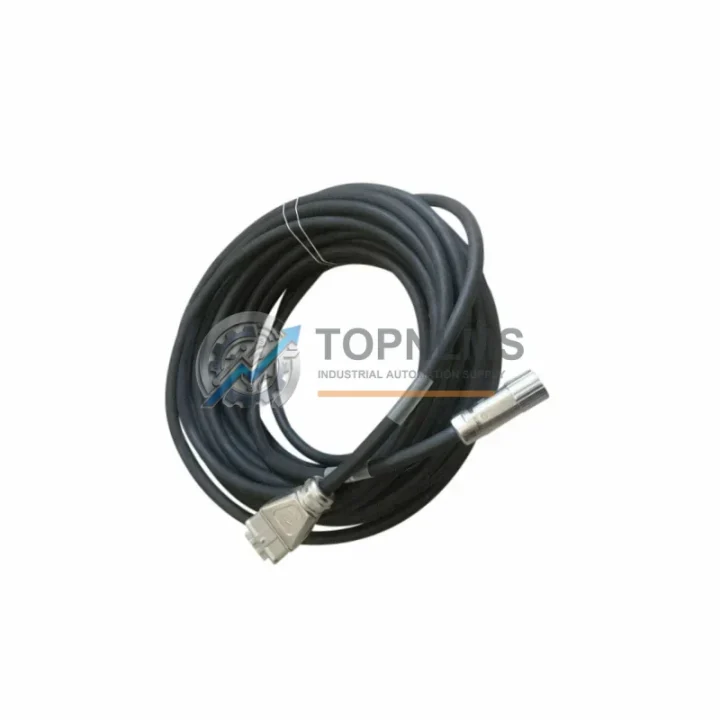

The KUKA 00-204-935 / 00-204-551 Robot Connecting Cable Assembly is an OEM-grade interconnect solution engineered specifically for the KUKA KR6 series of industrial robots. Designed to operate continuously in the most demanding manufacturing environments — including high-temperature foundries, high-humidity food processing lines, dusty mining operations, and vibration-intensive heavy press shops — this cable assembly delivers the signal integrity and mechanical durability that modern automated production lines require. At TOPNLMS, we stock this assembly as a verified genuine component, fully tested before dispatch, and backed by a 12-month quality warranty.

In industrial automation, a single cable failure can halt an entire production cell. The KUKA 00-204-935/00-204-551 is built to eliminate that risk. Its multi-layer shielding architecture provides robust protection against electromagnetic interference (EMI) and radio-frequency interference (RFI) — a critical requirement in facilities where variable frequency drives (VFDs), servo amplifiers, and high-current motor cables run in close proximity to robot control wiring. The outer jacket compound is rated for continuous flexing across the full KR6 robot arm range of motion, resisting abrasion, oil mist, and chemical splash common in metalworking and automotive body-shop environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The KUKA 00-204-935/00-204-551 cable assembly does not operate in isolation — it is a critical link within a broader robot cell architecture. In a typical KR6 installation, this cable carries both motor power and encoder feedback signals between the robot arm and the KUKA KRC4 controller, which serves as the central processing and safety management unit for the entire cell. Alongside the KRC4, the KUKA smartPAD teach pendant relies on stable, noise-free signal transmission through this cable to deliver accurate position feedback during programming and manual jogging operations.

In high-EMI environments — such as those where Siemens SINAMICS S120 servo drives or ABB ACS880 variable frequency drives are installed in adjacent control cabinets — the shielded construction of the 00-204-935 prevents cross-talk from corrupting the KR6’s encoder signals, which could otherwise trigger safety faults or positional drift. The cable’s grounding scheme is compatible with the KUKA KRC4 PE bonding rail, ensuring the robot cell meets IEC 61000 EMC compliance requirements without additional filtering hardware.

For facilities running KUKA.SafeOperation or integrating the KR6 with a Pilz PNOZ safety relay or Sick microScan3 safety laser scanner, maintaining the integrity of this cable is non-negotiable. A degraded or counterfeit cable can introduce latency in the safety-critical encoder feedback loop, potentially causing the safety controller to misread robot position and either trigger nuisance stops or — more dangerously — fail to stop in time. The genuine KUKA 00-204-935/00-204-551 eliminates this risk by meeting KUKA’s factory-specified impedance, capacitance, and shielding continuity tolerances.

Within the control cabinet, this cable interfaces with the KUKA KPP (KUKA Power Pack) and KSP (KUKA Servo Pack) drive modules. Pairing the 00-204-935 with genuine KUKA KSP 600-3×40 servo packs and a properly rated Phoenix Contact QUINT-PS industrial power supply ensures the entire power and signal chain from cabinet to end-effector operates within specification. For multi-robot cells, the KUKA KR C4 fieldbus module — supporting PROFINET, EtherNet/IP, or DeviceNet — depends on clean signal paths that only a properly shielded, OEM-grade cable can guarantee.

Application in Critical Infrastructure

The KUKA KR6 series, and by extension the 00-204-935/00-204-551 cable assembly, is deployed across a wide spectrum of critical industrial infrastructure where downtime carries severe operational and financial consequences.

In automotive body-in-white welding lines, KR6 robots perform spot welding and material handling in environments saturated with weld spatter, metal dust, and high-frequency electrical noise from welding inverters. The ruggedized jacket and EMI shielding of this cable allow the robot to maintain positional accuracy cycle after cycle without signal degradation. In electronics manufacturing and semiconductor assembly facilities, where cleanroom-adjacent environments demand both precision and contamination control, the IP67-rated connectors prevent particulate ingress that could corrupt encoder readings.

In the oil and gas sector, KR6 robots are increasingly deployed in ATEX-classified zones for pipe inspection, valve actuation, and sample handling. While the robot itself requires ATEX certification for Zone 2 use, the cable assembly must meet the same mechanical and electrical robustness standards — and the 00-204-935/00-204-551 does so by design. Similarly, in water treatment and desalination plants, where high-humidity and chemical exposure are constant, the PUR jacket resists hydrolysis and maintains flexibility even after years of continuous operation in wet environments.

Mining and mineral processing operations subject robot cables to extreme vibration from crushers and conveyors, as well as abrasive dust that can penetrate inferior cable jackets. The continuous-flex rating of the 00-204-935 ensures it withstands the repetitive motion cycles of a KR6 operating in ore sorting or palletizing applications without developing micro-fractures in the conductor strands. In steel mills and metal casting facilities, radiant heat from furnaces and molten metal splash demand a cable that maintains its dielectric properties at elevated ambient temperatures — a requirement this assembly meets with its high-temperature-rated insulation system.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All KUKA 00-204-935/00-204-551 cable assemblies shipped by TOPNLMS are covered by a 12-month warranty against manufacturing defects, premature insulation failure, connector pin corrosion, and shielding continuity loss under normal operating conditions. If a fault is identified within the warranty period, TOPNLMS will arrange replacement or refund after reviewing the failure mode. Warranty claims are processed via [email protected] with a typical response time of 1–2 business days.

Q2: How is each unit tested before shipment?
Every cable assembly undergoes pre-shipment inspection including continuity testing across all conductors, shield integrity verification, and visual inspection of connector housings and strain reliefs. Units that fail any inspection criterion are quarantined and not dispatched. A test record is available upon request for customers with incoming quality control (IQC) requirements.

Q3: Is this cable compatible with all KRC4 controller variants?
The 00-204-935/00-204-551 is designed for the KUKA KR6 series and is compatible with the KRC4, KRC4 compact, and KRC4 smallsize controller variants. It is not interchangeable with cables designed for the KR10, KR16, or larger payload series without engineering verification. If you are unsure of compatibility with a specific robot serial number or controller revision, contact TOPNLMS with your robot nameplate data for confirmation before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains buffer stock of high-demand KUKA spare parts including this cable assembly to support planned maintenance schedules, annual shutdown kits, and emergency breakdown orders. Volume pricing is available for orders of 5 units or more. For facilities operating multiple KR6 robots, we recommend holding at least one spare cable assembly per robot cell to eliminate lead-time risk during unplanned downtime events. Contact [email protected] or call +86 18359293191 to discuss a tailored supply agreement.
