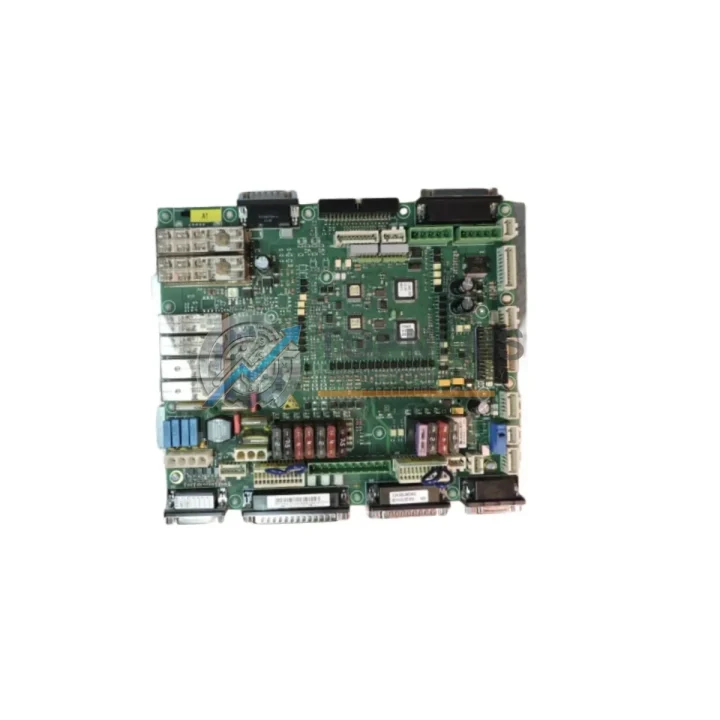

KUKA 00-127-755 KRC2 Dual-Channel Safety Monitoring Board

Product Overview

KUKA 00-127-755 KRC2 Dual-Channel Safety Monitoring Board: Industrial Resilience for Harsh Environments

The KUKA 00-127-755 VER.4 is a ruggedized dual-channel safety monitoring board engineered for the KUKA KRC2 robot controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this board delivers the safety-critical performance that modern automation systems demand. Whether deployed in a continuous production line or a hazardous-area control cabinet, the 00-127-755 provides the redundant monitoring architecture required to protect personnel, equipment, and process integrity.

Built to KUKA’s stringent quality standards, this safety monitoring board integrates seamlessly within the KRC2 controller architecture, working in concert with the KRC2 main computer board, servo amplifier modules, and the KPS600 power supply unit to maintain uninterrupted robot operation. Its dual-channel design ensures that a single-point failure in any monitoring path does not compromise the overall safety function — a fundamental requirement in SIL 2 and Category 3 safety-rated robotic installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 00-127-755 safety monitoring board does not operate in isolation — it is one critical node within a broader safety and control architecture. In a typical KRC2-based robotic cell, this board interfaces directly with the KUKA KRC2 DSE-IBS C33 main controller board, which manages the primary motion control and I/O coordination. The safety signals processed by the 00-127-755 are cross-referenced against the KUKA KPS600 power supply unit, ensuring that any safety fault immediately triggers a controlled power-down sequence across all servo axes.

For facilities running mixed automation architectures, the 00-127-755 is frequently deployed alongside Siemens SIMATIC S7-300 series safety CPUs and Pilz PNOZ safety relays, which provide plant-level safety logic coordination beyond the robot cell boundary. In high-density control cabinets, the board coexists with Phoenix Contact QUINT power supplies and Weidmüller terminal blocks, both of which are selected for their proven performance in vibration-prone and thermally stressed enclosures.

Communication integrity is maintained through KUKA’s proprietary KRL (KUKA Robot Language) interface and, in networked installations, via PROFIBUS DP or DeviceNet communication modules that relay safety status to the plant DCS. Where functional safety extends to the field level, the 00-127-755 works in conjunction with Schmersal safety door switches and SICK safety light curtains, forming a complete perimeter protection solution. For facilities requiring IEC 62061 or ISO 13849 compliance documentation, this board’s dual-channel architecture provides the hardware foundation for the required safety function verification.

Application in Critical Infrastructure

The KUKA 00-127-755 has established a strong track record across the most demanding sectors of critical industrial infrastructure. In automotive body-in-white welding lines, where KUKA KRC2 robots operate in continuous three-shift cycles surrounded by weld spatter, high-frequency inverter noise, and thermal cycling, the dual-channel safety board provides the reliable E-stop and safeguarding interlock performance that keeps production running without unplanned safety-related stoppages.

In oil and gas processing facilities, where control cabinets may be located in Zone 2 classified areas or subject to hydrogen sulfide-laden atmospheres, the board’s robust construction and sealed connector interfaces resist corrosive ingress that would compromise lesser components. Mining and mineral processing operations — particularly those using KUKA robots for ore sampling, explosive handling, or heavy material transfer — rely on the 00-127-755’s redundant monitoring channels to maintain safety integrity even when ground-borne vibration and electromagnetic interference from large variable-frequency drives are present.

Steel mills and aluminum smelters present perhaps the harshest thermal environment for any electronic component. Radiant heat from furnaces, airborne metallic particulate, and aggressive power quality fluctuations all challenge the longevity of safety-critical boards. The 00-127-755, when properly installed within a KUKA KRC2 controller cabinet with adequate cooling, has demonstrated reliable service life in these environments, making it a preferred spare part for maintenance engineers managing robot fleets in metallurgical plants.

In water and wastewater treatment facilities, where high ambient humidity and chemical vapors are constant concerns, and in power generation plants — including coal handling, biomass processing, and nuclear fuel fabrication support areas — the board’s compliance with industrial EMC standards ensures that safety monitoring functions are not disrupted by the high-voltage switching transients common in these environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified in the KUKA KRC2 technical documentation. If a unit fails within the warranty period, TOPNLMS will arrange return shipping, perform diagnostic testing, and provide either a repaired or equivalent replacement unit at no additional charge. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: How is each unit tested before shipment?
Every 00-127-755 board undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, component-level continuity testing, and functional power-on verification where test fixtures are available. Refurbished units additionally undergo a burn-in cycle to screen for early-life failures. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 00-127-755 VER.4 compatible with all KRC2 variants, and can it replace earlier versions?
The 00-127-755 VER.4 is the current production revision and is backward-compatible with standard KRC2 controller cabinets. It is designed to replace earlier VER.3 and VER.2 boards in the same slot position without hardware modification. Customers are advised to verify their KRC2 software version and consult the KUKA spare parts documentation to confirm compatibility with their specific robot model and controller serial number range before installation.

Q4: Can TOPNLMS support long-term supply continuity for fleet maintenance programs?
Yes. TOPNLMS maintains dedicated stock of high-demand KUKA KRC2 spare parts, including the 00-127-755, to support customers managing large robot fleets or operating in regions where OEM lead times are extended. Blanket purchase orders and scheduled delivery programs are available for maintenance managers who require guaranteed availability. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or annual supply agreements tailored to your planned maintenance schedule.
