KUKA 00-107-264 Ruggedized Teach Pendant: Industrial Resilience for Demanding Environments

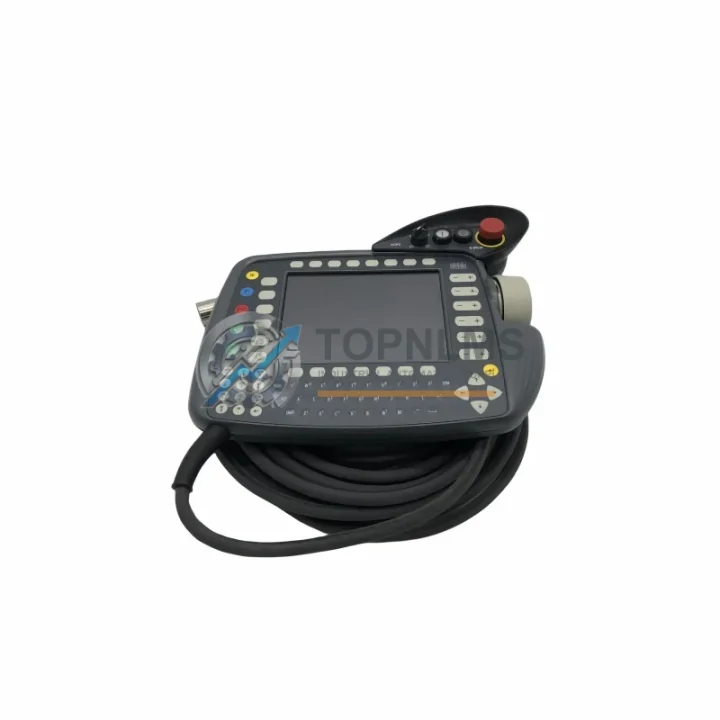

The KUKA 00-107-264 is the factory-original KCP2 (KUKA Control Panel 2) teach pendant engineered for the KUKA KR C2 robot controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity food processing lines, dust-laden mining operations, and vibration-intensive heavy manufacturing cells — this ruggedized HMI device delivers the precise motion programming and diagnostic capability that safety-critical automation demands. Whether you are commissioning a new robotic welding cell, replacing a failed pendant on a continuous production line, or maintaining a fleet of KUKA KR series manipulators, the 00-107-264 is the authoritative spare part that restores full operational capability without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions for Your Robotic Control System

The KUKA 00-107-264 KCP2 teach pendant does not operate in isolation — it is the human interface layer of a tightly integrated control architecture. Within the KUKA KR C2 controller cabinet, the pendant communicates with the KUKA KPS 600 power supply unit, which conditions incoming three-phase power and distributes regulated DC rails to the servo drives and control electronics. The KUKA KSD 48/10 servo drive modules receive motion commands generated through the pendant’s jogging and program execution functions, translating digital setpoints into precise axis torque. Protecting these drives from voltage transients and EMI is critical, and the KR C2 cabinet’s integrated EMC filtering — combined with the pendant’s shielded cable — ensures signal integrity even in arc-welding environments where high-frequency interference is constant.

For safety-rated applications, the 00-107-264’s integrated three-position enabling switch and dual-channel emergency stop interface directly with the KUKA safety controller (ESC — Electronic Safety Controller) embedded in the KR C2 platform. This architecture satisfies Performance Level d (PLd) per ISO 13849-1, making it suitable for collaborative and semi-collaborative robot cells where operator access during reduced-speed operation is required. The pendant’s E-Stop signal is hardwired — not software-dependent — ensuring that even a controller CPU fault cannot prevent a safe stop.

In multi-robot installations, the KCP2 pendant can be hot-swapped between compatible KR C2 cabinets using the KUKA KCP adapter cable, allowing a single pendant to service multiple robot stations during maintenance windows. This is particularly valuable in automotive body-in-white lines where dozens of KUKA KR 210 R2700 robots operate in adjacent cells. Alongside the pendant, facilities typically maintain stock of the KUKA KR C2 main computer (PC board), KUKA MFC3 motion control board, and KUKA DSE-IBS-C33 I/O board as critical spares, since these components share the same service lifecycle as the teach pendant and are subject to the same environmental stresses.

For communication-intensive installations integrating KUKA robots with upstream Siemens S7-300 or S7-400 PLCs via PROFIBUS-DP or DeviceNet, the pendant provides real-time I/O status monitoring that is indispensable for fault isolation. When a robot cell stops unexpectedly, the KCP2 display surfaces the exact fault code, axis position, and I/O state — dramatically reducing mean time to repair (MTTR) compared to systems that require a laptop and proprietary software for diagnosis. This diagnostic transparency is equally valuable when the robot is integrated with Beckhoff EtherCAT I/O terminals or Phoenix Contact Inline I/O modules in hybrid control architectures.

Application in Critical Infrastructure

The KUKA 00-107-264 KCP2 teach pendant has proven operational reliability across the most demanding sectors of global heavy industry. In automotive manufacturing, it is the standard programming interface for KUKA KR series robots performing resistance spot welding, MIG/MAG arc welding, and sealing operations on body-in-white lines running three shifts, 365 days per year. The IP54-rated enclosure withstands the weld spatter, coolant mist, and metallic dust that are endemic to these environments, while the deadman enabling switch ensures operator safety during manual teach operations at reduced speed.

In oil and gas processing facilities, KUKA robots equipped with KCP2 pendants are deployed for pipe handling, valve assembly, and inspection tasks in areas classified as Zone 2 under IEC 60079. While the pendant itself is not ATEX-certified for Zone 1 use, it is routinely used in control rooms and safe-area maintenance bays adjacent to hazardous zones, with the robot operating autonomously in the classified area. The pendant’s robust construction tolerates the temperature cycling, humidity, and airborne hydrocarbon contamination typical of offshore platform environments.

In metal casting and foundry operations, ambient temperatures regularly exceed 40 °C and radiant heat from furnaces can push local temperatures higher still. The KCP2 pendant’s operating range of 0–50 °C and its sealed enclosure make it one of the few teach devices capable of sustained use in these conditions without accelerated degradation of the display or keypad membrane. Foundries operating KUKA KR 30 and KR 60 robots for die-casting extraction and trimming rely on the 00-107-264 as a long-term spare, often maintaining two units per robot cell to eliminate downtime risk.

In water treatment and utilities infrastructure, where robots are increasingly used for pipe inspection, valve actuation, and chemical dosing, the pendant’s resistance to moisture ingress and its compatibility with the KR C2 safety architecture make it the preferred choice for system integrators designing IEC 61511 (functional safety for process industries) compliant installations. The ability to program safe-speed monitoring and workspace monitoring directly from the pendant — without additional safety PLC hardware — simplifies the safety case and reduces cabinet complexity.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide on the KUKA 00-107-264?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including display verification, keypad actuation testing, enabling switch continuity, and E-Stop channel validation before dispatch. A test report is available on request.

Q2: Is this pendant compatible with all KR C2 variants, and will it work with my existing KR C2 edition2005 cabinet?
Yes. The KUKA 00-107-264 is the standard KCP2 pendant for the entire KR C2 and KR C2 edition2005 controller family. It is compatible with all KUKA KR series robots supported by the KR C2 platform, including KR 6, KR 16, KR 30, KR 60, KR 100, KR 150, KR 200, and KR 210 variants. No firmware modification is required — the pendant auto-negotiates with the controller on connection.

Q3: How does TOPNLMS ensure the safety and authenticity of supplied components?
TOPNLMS sources components through verified industrial supply channels and performs incoming inspection on all stock. Genuine OEM parts are verified against KUKA part number databases. For refurbished units, full disassembly, cleaning, component-level inspection, and functional burn-in testing are completed before the unit is offered for sale. We do not supply counterfeit or grey-market parts.

Q4: What is the lead time, and can TOPNLMS support long-term or repeat procurement?
In-stock units ship within 1–3 business days from our Xiamen, China warehouse via DHL Express, FedEx International Priority, or customer-nominated freight. For customers requiring ongoing supply — such as automotive OEMs or system integrators managing multi-site robot fleets — TOPNLMS offers blanket order arrangements and reserved stock programs. Contact our team to discuss volume pricing and supply continuity agreements.
