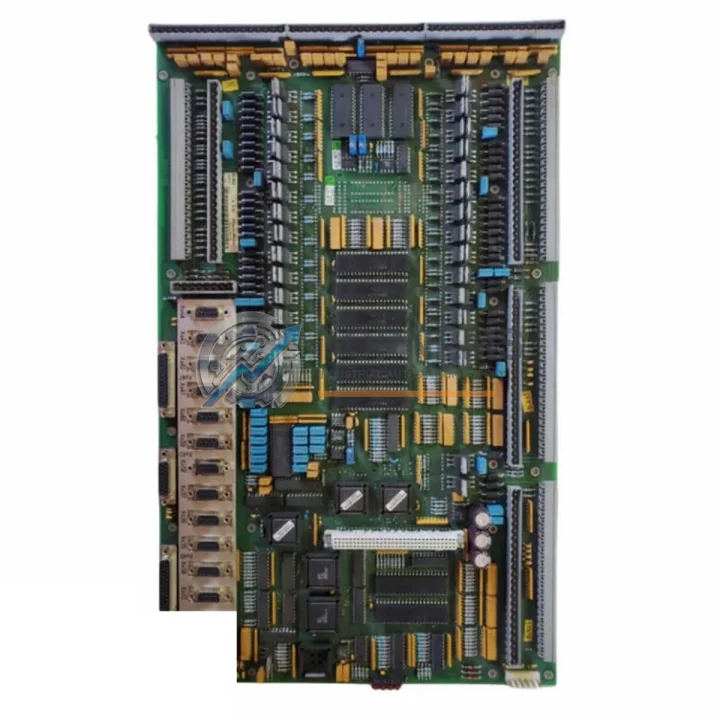

Krauss IO502 Replacement/Upgrade Solution for IO Series

Product Overview

Krauss IO502 Replacement/Upgrade Solution for IO Series: Smooth Transition from Legacy I/O Systems

Migrating from an aging distributed I/O architecture or a discontinued field I/O module to the Krauss IO502 is one of the most practical modernization steps available to industrial control engineers today. Whether your existing system relies on an older Krauss IO4xx-series module, a third-party I/O block that has reached end-of-life, or a legacy rack-mounted analog input card that no longer meets your process accuracy requirements, the IO502 provides a direct, field-proven upgrade path that minimizes engineering rework, reduces downtime risk, and preserves your existing wiring infrastructure wherever possible.

The IO502 is a compact, DIN-rail-mountable digital and analog I/O module designed for integration into modern PLC and DCS control architectures. Its standardized terminal block layout is compatible with the wiring conventions used across the broader Krauss IO Series, meaning that field cables terminated to earlier-generation modules such as the Krauss IO401 or IO450 can often be re-used without re-pulling conductors — a significant advantage in retrofit projects where cable access is restricted or where re-termination labor costs are prohibitive.

From a communications standpoint, the IO502 supports the PROFIBUS DP and MODBUS RTU protocols that are standard across the Krauss IO Series platform, ensuring backward compatibility with existing network segments. If your control cabinet currently hosts a Krauss CM301 PROFIBUS communication module or a CM205 MODBUS gateway, the IO502 integrates without requiring firmware changes to the master controller or modifications to the GSD/EDS configuration files. This protocol-level compatibility is critical in brownfield installations where the PLC program — often running on a Krauss PLC-K200 series controller — cannot be taken offline for extended reprogramming.

Physical installation is equally straightforward. The IO502 occupies a standard 35 mm DIN rail slot and shares the same mounting footprint as the IO401 and IO450 it commonly replaces, so control cabinet space planning requires no structural modification. In applications where the original module was mounted in a Krauss RK08 rack assembly or a third-party 19-inch sub-rack, the IO502’s standalone DIN-rail form factor may actually free up panel space, allowing engineers to consolidate I/O density or add supplementary modules such as a Krauss PS24 24 VDC power supply module to improve redundancy.

Power supply compatibility is another key consideration in any I/O module migration. The IO502 operates on a 24 VDC supply rail, consistent with the power architecture used throughout the Krauss IO Series. If your existing panel uses a shared 24 V bus fed by a legacy power supply, no additional power conditioning is required. For installations where supply quality is marginal, pairing the IO502 with a Krauss PS24R redundant power supply or a third-party DIN-rail UPS is recommended to ensure uninterrupted I/O scanning during power transients.

Signal isolation is a frequent concern when replacing older I/O modules in high-noise industrial environments such as motor control centers, variable frequency drive (VFD) panels, or high-current switching applications. The IO502 incorporates optocoupler-based channel isolation on its digital inputs, providing the same level of protection as the modules it replaces. For analog channels requiring additional isolation — particularly in 4–20 mA loop applications — a Krauss SI100 signal isolator can be inserted in-line without modifying the PLC program’s I/O address mapping.

From a programming perspective, the IO502 maps to the same I/O address space as its predecessors within the Krauss IO Series, which means that existing ladder logic, function block diagrams, or structured text programs running on the host controller require no modification to the I/O variable declarations. Engineers performing the migration can validate the new module’s channel behavior using the diagnostic LEDs on the IO502’s front panel before committing to a full system restart — a feature that significantly reduces commissioning time during scheduled maintenance windows.

For facilities managing spare parts inventory across multiple production lines, the IO502 is an ideal consolidation candidate. A single IO502 SKU can replace several legacy module variants, reducing the number of unique part numbers held in the storeroom and simplifying procurement. TOPNLMS maintains verified stock of the IO502 and ships from Xiamen, China, with express logistics options available for urgent replacement requirements. All units are tested prior to dispatch and covered by a 12-month warranty from the date of shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IO502 migration rarely involves a single module in isolation. In practice, the upgrade is part of a broader control system modernization effort that touches several interconnected components. When replacing the IO401 or IO450 with the IO502, engineers typically also evaluate the condition of the Krauss CM301 PROFIBUS communication module serving as the network master, since aging communication hardware can introduce bus timing errors that mask the performance improvements delivered by the new I/O module. Similarly, the Krauss PLC-K200 series controller hosting the I/O program should be confirmed to be running a firmware version that supports the IO502’s diagnostic reporting features.

In multi-drop MODBUS RTU networks, the Krauss CM205 MODBUS gateway may need its baud rate and parity settings verified against the IO502’s default configuration to avoid communication faults during initial commissioning. For installations that include analog signal chains, the Krauss SI100 signal isolator is frequently specified alongside the IO502 to protect sensitive 4–20 mA inputs from ground loop interference introduced by long cable runs in electrically noisy environments.

Power infrastructure is another area of focus. The Krauss PS24 24 VDC power supply module and its redundant variant, the Krauss PS24R, are commonly ordered together with the IO502 in retrofit projects where the original power supply is approaching its rated service life. Completing the panel with updated terminal blocks, cable markers, and a Krauss RK08 rack assembly for organized module mounting ensures that the upgraded control cabinet meets current installation standards and is easier to maintain over its next service cycle.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an IO401 or IO450 with the IO502?
A: In most cases, yes. The IO502 uses the same screw-type terminal block pitch and 2.5 mm² conductor rating as the IO401 and IO450. Verify terminal numbering against the IO502 wiring diagram before re-terminating, as channel assignments may differ by one or two positions depending on the legacy module revision.

Q: Do I need to modify my PLC program after installing the IO502?
A: No program modification is required if the IO502 is configured to the same PROFIBUS DP node address or MODBUS RTU slave ID as the module it replaces. The I/O address mapping within the Krauss IO Series is consistent across the IO4xx and IO502 generations, so existing variable declarations remain valid.

Q: What communication protocols does the IO502 support?
A: The IO502 natively supports PROFIBUS DP and MODBUS RTU. If your system uses PROFINET or EtherNet/IP, a protocol gateway such as the Krauss CM301 or a third-party converter will be required. Contact TOPNLMS for gateway compatibility guidance specific to your network architecture.

Q: Will the IO502 fit in the same panel space as the module it replaces?
A: Yes. The IO502 mounts on a standard 35 mm DIN rail and has a comparable width to the IO401 and IO450. If the legacy module was installed in a Krauss RK08 rack, a DIN-rail adapter bracket is available to maintain the same physical footprint.

Q: How do I verify the IO502 is functioning correctly before going live?
A: The IO502 features front-panel diagnostic LEDs for power, communication status, and per-channel I/O state. Use the host PLC’s online monitoring function to confirm I/O data is being received correctly before switching the system to automatic mode. TOPNLMS recommends a bench test of the IO502 against a known-good signal source prior to installation in a live panel.

Q: What should I do if the IO502 reports a communication fault after installation?
A: First verify the node address (PROFIBUS DP) or slave ID (MODBUS RTU) matches the configuration of the replaced module. Check bus termination resistors at both ends of the network segment. Confirm baud rate and parity settings on the CM205 or CM301 communication module match the IO502 defaults. If the fault persists, contact TOPNLMS technical support with the diagnostic LED status and PLC error code.

Warranty Assurance

Every Krauss IO502 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional test protocol that verifies power-on behavior, communication bus response, and channel I/O integrity. Units that do not pass the pre-shipment test are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to confirmation that the fault is not attributable to installation error, overvoltage, or physical damage. Warranty claims are processed within 3 business days of receipt of the returned unit at our Xiamen facility. Customers requiring an advance replacement unit to minimize production downtime should contact our sales team directly to arrange a cross-shipment.

TOPNLMS ships globally using DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to most destinations. Express same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and test report. Customs documentation for HS code classification is provided upon request.

For procurement inquiries, volume pricing, or technical pre-sales support, contact the TOPNLMS team directly:

📧 [email protected] | 📞 +86 18359293191
