KOYO F4-04AD Replacement for DirectLOGIC DL405

Product Overview

KOYO F4-04AD Replacement for DirectLOGIC DL405: Seamless Transition from Legacy Analog Input Systems

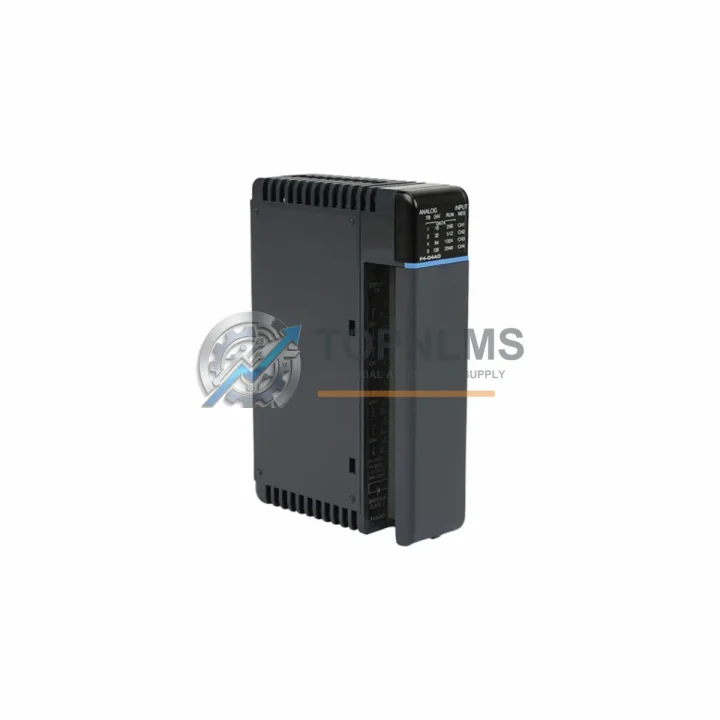

The KOYO F4-04AD is a 4-channel analog input module engineered for the DirectLOGIC DL405 PLC platform. As industrial facilities worldwide face the challenge of maintaining aging DL405-based control systems—many of which were commissioned in the 1990s and early 2000s—the F4-04AD remains one of the most sought-after replacement and upgrade components in the KOYO DirectLOGIC ecosystem. Whether your facility is executing a full control system modernization or simply replacing a failed module to restore production, the F4-04AD delivers a verified drop-in solution with no re-engineering required.

This module accepts up to four independent analog input signals (voltage or current), converting them to digital values readable by the DL405 CPU. It slots directly into any DL405 I/O base, including the D4-04B, D4-06B, and D4-10B local bases, as well as remote I/O racks connected via the D4-RMSM remote I/O master module. Existing field wiring—whether 4–20 mA current loops from pressure transmitters, flow meters, or temperature sensors, or 0–10 VDC signals from positioners and drives—connects without modification to the F4-04AD’s screw-terminal block, eliminating rewiring costs and reducing migration downtime to a minimum.

For sites running the DL405 with a D4-450 or D4-440 CPU, the F4-04AD integrates transparently. The module’s I/O addressing maps identically to the original configuration stored in DirectSOFT programming software, meaning ladder logic programs referencing V-memory analog input words require no modification. Engineers who have maintained these systems for years can swap the module, power up, and resume normal operation—often within a single maintenance window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DL405 analog input migration rarely involves a single module in isolation. In practice, field engineers replacing the F4-04AD often find themselves addressing the broader health of the control cabinet at the same time. The D4-450 CPU—the most common processor paired with this module—may itself be approaching end-of-life, and sourcing a tested replacement CPU alongside the F4-04AD ensures the entire analog subsystem is renewed in a single planned outage rather than through reactive, unplanned replacements.

Power integrity is equally critical. The D4-PEM power entry module and associated D4-BAP base power supply must deliver stable 5 VDC and 24 VDC rails to the I/O base; a degraded power supply is a frequent root cause of intermittent analog reading errors that are often misdiagnosed as module failures. Replacing the F4-04AD without verifying the power supply condition can result in repeat failures within months.

On the field wiring side, many DL405 installations use the F4-04AD in conjunction with the F4-04DA analog output module to form closed-loop control loops—for example, reading a process variable from a 4–20 mA transmitter via the F4-04AD and commanding a control valve or variable frequency drive via the F4-04DA. Upgrading both modules simultaneously eliminates the risk of a mismatched analog subsystem and simplifies commissioning verification.

For facilities that have extended their DL405 systems with remote I/O, the D4-RMSM remote I/O master and its corresponding remote base units are often part of the same upgrade scope. Remote analog I/O modules such as the F4-04ADS (remote-capable variant) may be required depending on the installation topology. Similarly, the D4-16ND3 discrete input module and D4-16TD1 discrete output module are frequently replaced alongside analog modules during scheduled maintenance windows, since they share the same I/O base and are subject to the same operational age.

Communication-intensive DL405 installations may also incorporate the D4-DCM direct communication module for peer-to-peer or host link communications, or the D4-DSCBL programming cable for DirectSOFT connectivity. Ensuring these communication components are functional before and after the F4-04AD swap is standard commissioning practice. For HMI-connected systems, the C-more EA9 series operator panels—commonly paired with DL405 controllers via RS-232 or Ethernet—should be verified for communication continuity after any CPU or I/O module replacement.

Retrofit Guidance FAQ

Q: Can I replace the F4-04AD without modifying my existing field wiring?
Yes. The F4-04AD uses a removable screw-terminal wiring block. In most installations, the wiring block can be unplugged from the failed module and plugged directly into the replacement unit, preserving all field wiring connections without disturbing individual conductors. Verify terminal labeling matches before powering up.

Q: Do I need to modify my DirectSOFT ladder logic program after replacing the module?
No program changes are required for a like-for-like F4-04AD replacement. The module occupies the same I/O slot and maps to the same V-memory analog input words. If the slot position changes during a rack reconfiguration, update the I/O configuration in DirectSOFT and re-download to the D4-450 or D4-440 CPU.

Q: What communication protocols does the F4-04AD support?
The F4-04AD communicates exclusively over the DL405 backplane bus—it is not a networked module and does not require Modbus, PROFIBUS, or Ethernet configuration. All analog data is read by the CPU via the backplane at each scan cycle. External communication protocols (Modbus RTU, DirectNET, etc.) are handled by the CPU and communication modules, not the analog input module itself.

Q: Will the F4-04AD fit in my existing DL405 rack without physical modification?
Yes. The F4-04AD occupies a single standard DL405 I/O slot. It is compatible with all DL405 local bases (D4-04B, D4-06B, D4-10B) and remote bases. No bracket modification, DIN rail adapter, or panel cutout change is required.

Q: How do I verify the replacement module is functioning correctly after installation?
After installation, use DirectSOFT’s data view to monitor the V-memory words mapped to the F4-04AD channels. Apply a known reference signal (e.g., a calibrated 4 mA or 20 mA source) to each channel and verify the corresponding digital count falls within the expected range (typically 0 and 4095 for 12-bit resolution). Compare readings against the previous module’s calibration records if available.

Q: My DL405 system uses remote I/O. Does the F4-04AD work in remote bases?
The standard F4-04AD is designed for local DL405 bases. For remote I/O applications, verify whether your installation requires the remote-capable variant. Consult the DL405 I/O User Manual (GS-04AD) for slot assignment rules in remote rack configurations managed by the D4-RMSM master module.

Warranty Assurance

Every F4-04AD unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing and analog channel response checks to confirm the unit meets KOYO DirectLOGIC DL405 specifications. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing production downtime. Our response target for warranty inquiries is within 1 business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent requirements.

We maintain stock of F4-04AD and related DL405 components to support both planned maintenance programs and emergency breakdown situations. Customers are encouraged to contact us to discuss consignment stock arrangements or scheduled delivery programs that align with their planned maintenance windows.

For procurement teams, we provide documentation including test reports, packing lists, and commercial invoices suitable for import clearance. All units are shipped with appropriate ESD-protective packaging to prevent transit damage.
