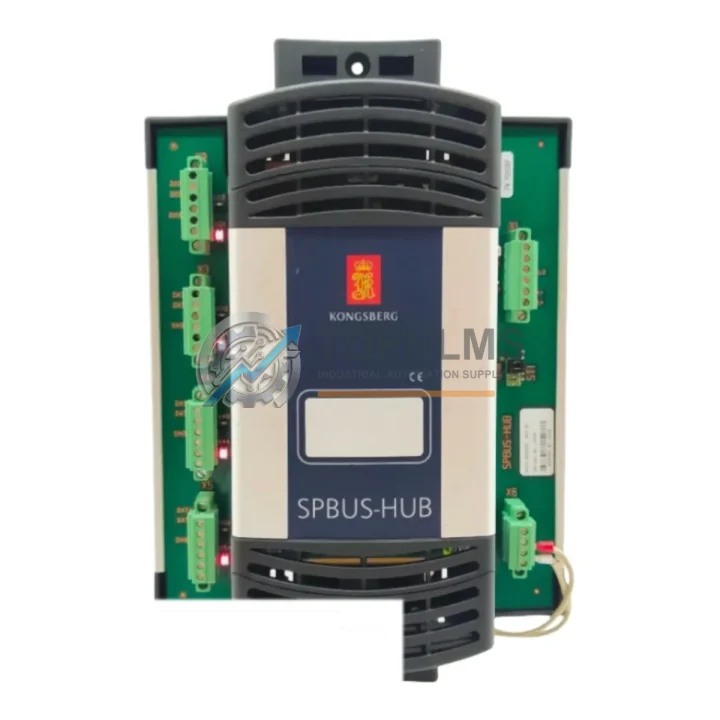

KONGSBERG SPBUS-HUB Replacement for K-Chief SDP-A

Product Overview

KONGSBERG SPBUS-HUB Replacement for K-Chief SDP-A: Seamless Migration & Smooth Transition

The KONGSBERG SPBUS-HUB is the Serial Process Bus Hub Module at the heart of the K-Chief 500 / K-Chief 600 integrated automation and alarm monitoring platform. As vessels age and original KONGSBERG SDP-A control systems approach end-of-support, procurement teams and vessel superintendents face a critical decision: source a verified replacement SPBUS-HUB before the next dry-dock window, or risk unplanned downtime at sea. TOPNLMS stocks tested, ready-to-ship SPBUS-HUB units with a 12-month warranty, enabling a smooth, low-risk transition from legacy Serial Process Bus architecture to a fully operational system without rewriting control logic or rewiring existing bus cabling.

The SPBUS-HUB functions as the central communication backbone, aggregating Serial Process Bus signals from distributed I/O nodes, sensor interface modules, and alarm panels across the vessel. When this hub fails or becomes unavailable, the entire K-Chief network loses visibility — engine room alarms, cargo monitoring, and bridge automation all go dark. A verified replacement unit allows engineers to restore full network topology within a single maintenance shift, preserving the existing SPBUS (Serial Process Bus) wiring harness, connector pinouts, and node addressing scheme without any re-engineering.

For vessels running the KONGSBERG SDP-A dynamic positioning system alongside K-Chief automation, the SPBUS-HUB is equally critical. The SDP-A relies on real-time data exchange between thruster controllers, reference systems, and the operator station — all routed through the Serial Process Bus infrastructure. Replacing a failed SPBUS-HUB with a verified unit restores this data path without requiring recalibration of the DP reference systems or modification of the thruster control parameters stored in the KONGSBERG SDP-A controller.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SPBUS-HUB replacement rarely happens in isolation. During the same maintenance window, experienced marine automation engineers typically audit the surrounding Serial Process Bus infrastructure to prevent repeat failures. The KONGSBERG SPBUS-NODE remote I/O nodes connected to the hub should be inspected for firmware version compatibility, as mismatched node firmware can cause intermittent bus errors even after a hub swap. Similarly, the KONGSBERG SPBUS-TERM bus termination resistors at each end of the Serial Process Bus segment must be verified — an open or missing terminator will cause reflections that destabilize the entire bus after the new hub is installed.

On the power distribution side, the KONGSBERG K-Chief Power Supply Module feeding the 24 VDC bus rail should be load-tested before commissioning the replacement hub. A marginal power supply that was masking its degradation behind a failed hub will cause the new unit to fail prematurely. If the vessel’s control cabinet also houses a KONGSBERG ALARM PANEL MODULE or a K-Chief Operator Station, these should be power-cycled in sequence after the hub replacement to allow the K-Chief system to re-enumerate all bus nodes cleanly.

For vessels where the SPBUS-HUB interfaces with the KONGSBERG SDP-A Joystick Control Unit or the SDP-A Reference System Interface Module, the bus restoration sequence is critical: the hub must be online and all nodes acknowledged before the DP system is re-engaged. Engineers should also verify that the KONGSBERG Serial Process Bus programming cable (used for node configuration and diagnostics) is available on board, as it is required for any node re-addressing that may be needed if the replacement hub is initialized with factory defaults. Finally, if the retrofit scope extends to upgrading aging KONGSBERG I/O Extension Modules or Signal Isolation Modules within the same control cabinet, TOPNLMS can source these components as a consolidated shipment to minimize vessel port time.

Retrofit Guidance FAQ

Q: Will I need to rewire the Serial Process Bus cabling when installing the replacement SPBUS-HUB?
A: No. The replacement SPBUS-HUB uses the same connector pinout and bus topology as the original OEM unit. Existing SPBUS wiring harnesses, cable shields, and connector housings can be reused directly. No rewiring or cable modification is required for a standard drop-in replacement.

Q: Do I need to re-upload the K-Chief configuration after swapping the hub?
A: In most cases, no. The K-Chief system configuration — including alarm setpoints, I/O mapping, and node assignments — is stored in the K-Chief Operator Station and the individual SPBUS-NODE units, not in the hub itself. The hub is a passive bus aggregator; replacing it does not erase system configuration. However, if the replacement unit is initialized with factory defaults, a brief node re-enumeration via the K-Chief engineering menu may be required.

Q: Is the SPBUS-HUB compatible with both K-Chief 500 and K-Chief 600 platforms?
A: Yes. The Serial Process Bus architecture is consistent across the K-Chief 500 and K-Chief 600 generations. The SPBUS-HUB replacement unit is compatible with both platforms without hardware modification.

Q: What communication protocol does the SPBUS-HUB use, and is it compatible with Modbus or NMEA devices?
A: The SPBUS-HUB operates exclusively on the KONGSBERG proprietary Serial Process Bus protocol. It does not natively bridge to Modbus RTU, Modbus TCP, or NMEA 0183/2000. If your retrofit scope requires protocol conversion, a separate gateway module should be specified. TOPNLMS can advise on compatible interface options.

Q: How much physical space does the replacement hub require in the control cabinet?
A: The replacement SPBUS-HUB has an identical form factor to the original OEM unit and mounts on a standard DIN rail. No additional panel cutouts, bracket modifications, or cabinet re-layout are required. The unit fits within the existing control cabinet footprint.

Q: What is the lead time and shipping arrangement?
A: TOPNLMS ships from Xiamen, China. In-stock units are dispatched within 1–2 business days. Express courier (DHL / FedEx) delivery to major ports typically takes 3–5 business days. For urgent vessel requirements, contact us directly at [email protected] or +86 18359293191 to arrange priority dispatch.

Warranty Assurance

Every KONGSBERG SPBUS-HUB replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional outgoing inspection that verifies bus communication integrity, power input range, connector condition, and physical completeness. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a full refund — whichever the customer prefers. Warranty claims are processed within 5 business days of receiving the returned unit. Return shipping for confirmed warranty faults is covered by TOPNLMS.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. All units are packed in anti-static protective packaging suitable for air freight. Partial shipments and consolidated orders for multiple components are supported.

Contact our technical sales team before ordering if you need to confirm compatibility with a specific vessel configuration, K-Chief software version, or SDP-A system revision. We respond to technical enquiries within 24 hours on business days.
