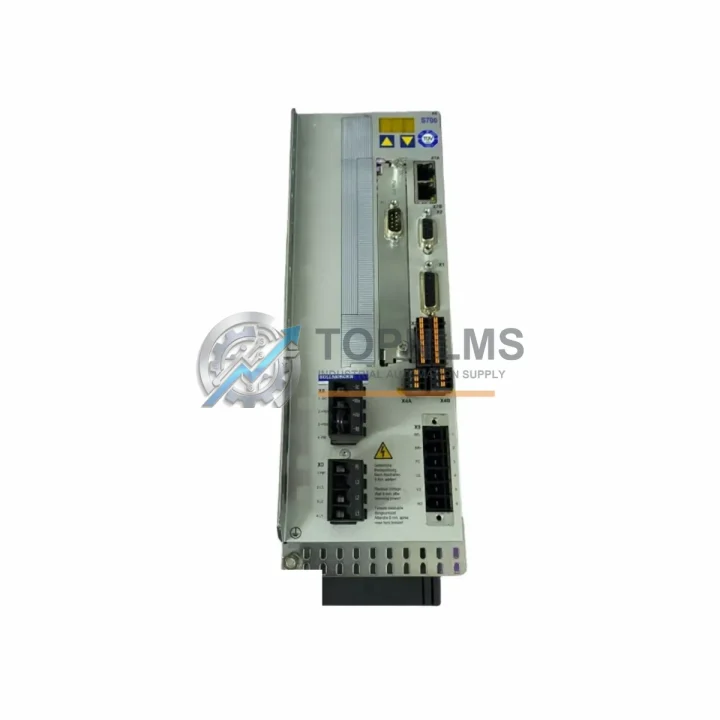

Kollmorgen S70102-NAPMNA Original Industrial Spare AKD Compatible

Product Overview

Kollmorgen S70102-NAPMNA Original Industrial Spare AKD Compatible: System Stability and Servo Drive Maintenance Value

In modern industrial automation environments, servo drive reliability is the backbone of production continuity. The Kollmorgen S70102-NAPMNA is an original AKD Series AC Servo Drive Amplifier engineered for precision motion control across demanding manufacturing, packaging, robotics, and CNC machining applications. When a servo drive fails unexpectedly, every minute of downtime translates directly into lost production output and escalating maintenance costs. Stocking the S70102-NAPMNA as a verified spare ensures your maintenance team can execute a rapid, drop-in replacement without reconfiguration delays or compatibility risks.

The AKD Series platform from Kollmorgen is widely deployed in multi-axis servo systems, gantry robots, rotary indexers, and high-speed pick-and-place lines. The S70102-NAPMNA variant is specifically configured for applications requiring precise torque and velocity control with seamless integration into existing Kollmorgen servo motor and feedback device ecosystems. Its compact form factor and standardized mounting interface make it a reliable choice for both new installations and legacy system life extension programs.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo drive does not operate in isolation. The S70102-NAPMNA sits at the heart of a coordinated motion control architecture, and its long-term reliability depends on the health of every upstream and downstream component in the electrical cabinet. During scheduled maintenance windows or unplanned downtime events, experienced maintenance engineers know that replacing only the failed drive without inspecting adjacent components is a missed opportunity — and a risk factor for repeat failures.

When servicing a control cabinet housing the Kollmorgen S70102-NAPMNA, begin with the 24VDC control power supply module that feeds the drive’s logic circuitry. Degraded capacitors or voltage ripple in the power supply are a leading cause of unexplained drive faults. Simultaneously, inspect the regenerative braking resistor or dynamic braking module connected to the DC bus — overvoltage trips during deceleration cycles are often traced back to a failed braking resistor rather than the drive itself.

The feedback cable assembly between the servo motor encoder and the S70102-NAPMNA deserves close attention. Shielding integrity, connector seating, and cable routing away from high-voltage conductors are critical. A degraded EnDat or SFD feedback cable can produce intermittent position errors that mimic drive faults. Stocking a spare Kollmorgen CFB feedback cable or equivalent shielded encoder cable is strongly recommended alongside the drive itself.

For multi-axis systems, the EtherCAT or CANopen communication module and associated network switch or coupler should be verified for firmware compatibility after a drive replacement. Communication timeouts during axis synchronization are a common post-replacement issue when firmware versions are mismatched. Additionally, inspect the I/O terminal block modules and signal isolation relays connected to the drive’s digital I/O ports — contact wear and signal drift in these components can cause erratic enable/disable behavior that is incorrectly attributed to the drive.

The main contactor and soft-start circuit supplying AC power to the drive should be tested for contact resistance and coil integrity. A worn contactor that causes micro-interruptions in the AC supply is a frequent root cause of nuisance drive trips in high-cycle applications. Pairing the S70102-NAPMNA replacement with a new line filter / EMC filter module is also advisable, as the existing filter may have accumulated harmonic stress over years of operation.

Finally, for facilities running legacy Kollmorgen WorkBench commissioning software, ensure the USB-to-serial or USB-to-EtherCAT commissioning cable and associated PC interface adapter are functional before attempting drive parameterization. A failed commissioning interface can add hours to an otherwise straightforward replacement procedure. Maintaining a documented spare parts list that includes the S70102-NAPMNA alongside these supporting components — power supplies, feedback cables, contactors, I/O modules, communication adapters, and braking resistors — is the foundation of a mature preventive maintenance program.

Strategic Replacement Solutions

The Kollmorgen S70102-NAPMNA is a direct replacement candidate for aging AKD-P and AKD-B series drives that have reached end-of-service life or are no longer supported under active manufacturer maintenance contracts. Many facilities operating servo systems installed between 2008 and 2018 are now encountering obsolescence challenges: original drives are no longer available through standard distribution channels, repair lead times have extended to 8–16 weeks, and spare parts for older variants are increasingly scarce.

Sourcing the S70102-NAPMNA as a verified original spare from TOPNLMS provides a cost-effective path to system life extension without the capital expenditure of a full servo system retrofit. The AKD platform’s backward-compatible parameter structure means that saved drive configurations from WorkBench can typically be restored to a replacement unit with minimal re-commissioning effort, reducing planned maintenance windows from days to hours.

For facilities managing multi-vendor control architectures — where Kollmorgen servo axes operate alongside Siemens SINAMICS, Allen-Bradley Kinetix, or Yaskawa Sigma drives — the S70102-NAPMNA’s standardized EtherCAT interface simplifies integration into mixed-vendor motion networks. This interoperability reduces the engineering overhead of maintaining separate spare parts inventories for each drive platform and supports a consolidated procurement strategy.

TOPNLMS tests all servo drive units prior to shipment using load simulation and communication verification protocols. Each S70102-NAPMNA is shipped with full parameter reset to factory defaults, ensuring a clean baseline for customer commissioning. Units are packaged in anti-static enclosures with shock-absorbing foam inserts to protect sensitive power electronics during international transit.

Support FAQ

Q1: What is the warranty coverage for the Kollmorgen S70102-NAPMNA?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team via email and phone, with replacement or repair options available depending on fault diagnosis.

Q2: How do I verify compatibility between the S70102-NAPMNA and my existing servo motor?
Compatibility is determined by matching the motor’s feedback device type (EnDat 2.2, BiSS-C, Resolver, or SFD), voltage rating, and continuous/peak current requirements against the drive’s output specifications. Please provide your motor nameplate data and existing drive parameter file when contacting our technical team for a compatibility assessment.

Q3: What pre-shipment testing is performed on each unit?
Each S70102-NAPMNA undergoes functional power-on testing, communication interface verification, and output stage load testing before shipment. A test report is available upon request. Units are reset to factory default parameters and shipped in anti-static protective packaging.

Q4: Can I use my existing WorkBench parameter file with a replacement S70102-NAPMNA?
Yes. Kollmorgen WorkBench parameter files (.AKD) are compatible across AKD Series drives of the same current rating and variant. After installing the replacement drive, connect via USB or EtherCAT, restore your saved parameter file, verify motor feedback settings, and perform a guided auto-tune if required. Our technical team can assist with remote commissioning support if needed.
