KOLLMORGEN S3030-1-NA-SB Replacement for SERVOSTAR 300: Smooth Transition & Legacy System Compatibility

The KOLLMORGEN S3030-1-NA-SB is a 3A, 230VAC analog/digital servo drive from the SERVOSTAR 300 series — a platform widely deployed across CNC machining centers, packaging lines, semiconductor handling equipment, and precision motion control systems throughout the 1990s and 2000s. As the SERVOSTAR 300 series has reached end-of-life status, many facilities are now confronting the challenge of sourcing verified replacement units or executing a controlled migration to a supported platform without disrupting production.

TOPNLMS supplies tested, ready-to-ship S3030-1-NA-SB units with full functional verification, enabling your maintenance team to restore operations quickly — or plan a structured upgrade path — with minimal engineering risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SERVOSTAR 300 replacement or migration rarely involves a single component. In practice, field engineers replacing an S3030-1-NA-SB often find that adjacent components in the same control cabinet require attention. The drive’s 24VDC logic supply is typically sourced from a shared KOLLMORGEN PST power supply module or a third-party DIN-rail SMPS — verifying its output stability before commissioning the replacement drive is a standard first step.

The motor feedback loop relies on the integrity of the encoder cable assembly connecting the S3030-1-NA-SB to the servo motor. If the existing cable shows wear or connector corrosion, a replacement KOLLMORGEN encoder feedback cable compatible with the S3xx X4 connector should be sourced simultaneously to avoid a second maintenance window.

For facilities running multiple axes, the S3030-1-NA-SB often operates alongside higher-current siblings such as the KOLLMORGEN S3060-1-NA-SB (6A) or the S3100-1-NA-SB (10A) on the same machine. Maintaining a matched spare inventory across the axis family reduces diagnostic complexity during unplanned downtime events.

Where the original system used a KOLLMORGEN SERVOSTAR CD or SERVOSTAR 600 as the master axis controller in a multi-axis gantry or coordinated motion application, the S3030-1-NA-SB typically functions as a subordinate axis drive receiving ±10V velocity commands. The replacement unit integrates into this architecture without firmware changes on the master controller.

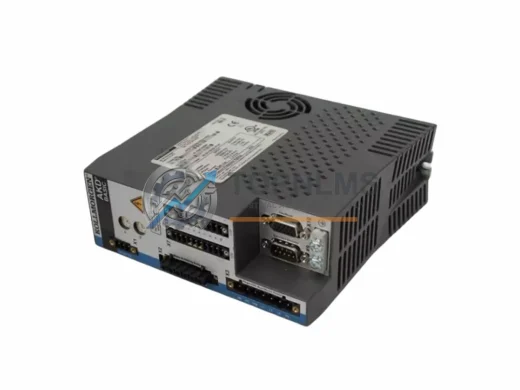

Facilities planning a longer-term migration from the SERVOSTAR 300 platform to a modern fieldbus-based architecture — such as EtherCAT or CANopen — may consider the KOLLMORGEN AKD series as a forward-compatible upgrade target. The AKD supports the same motor families and offers a structured migration path via KOLLMORGEN’s WorkBench software. However, for immediate production restoration, the S3030-1-NA-SB direct replacement remains the lowest-risk, fastest-return option.

If the host controller communicating with the drive is a legacy Siemens SINUMERIK 840D or Fanuc 0i-MD CNC issuing analog velocity commands, no changes to the CNC parameter tables are required when swapping the S3030-1-NA-SB — the ±10V interface is transparent to the controller. Similarly, if a Beckhoff CX series IPC or Allen-Bradley ControlLogix is managing the motion profile via analog output cards, the replacement drive accepts the same command signal without reconfiguration.

For applications where the drive interfaces with a terminal block or I/O expansion module for enable signals, fault resets, and digital I/O, the existing wiring to the S3xx X1 and X2 connectors is fully reusable. No rewiring of the I/O circuit is required.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor power and feedback cables?
Yes. The S3030-1-NA-SB uses the standard SERVOSTAR 300 connector layout (X1–X4). Existing motor power cables (X2) and encoder/resolver feedback cables (X4) connect directly without modification, provided the connectors are in good condition.

Q: Do I need to re-tune the servo loop after replacement?
Not if you have a saved MOTIONLINK parameter file (.drv) from the original drive. Upload the file via RS-232 and the drive will restore all gain, limit, and I/O configuration settings. If no backup exists, basic auto-tuning via MOTIONLINK is straightforward for most motor/load combinations.

Q: Is the RS-232 communication protocol identical to my original unit?
Yes. The SERK serial protocol used by MOTIONLINK is consistent across the SERVOSTAR 300 family. Your existing RS-232 cable and PC interface will work without modification.

Q: Will this drive fit in the same panel space?
Yes. The S3030-1-NA-SB shares the same mechanical envelope as other S3xx 3A variants. No cabinet modifications, additional mounting hardware, or airflow changes are required.

Q: What if my application requires a higher current rating?
If motor sizing analysis indicates the 3A rating is marginal for your load profile, consider the S3060-1-NA-SB (6A) as a direct form-fit upgrade within the same cabinet space. TOPNLMS can advise on current rating selection based on your motor nameplate data.

Q: Is the unit compatible with resolver feedback motors?
Yes. The S3030-1-NA-SB supports both incremental encoder and resolver feedback via the X4 connector. Specify your feedback type when ordering if you require pre-configuration.

Warranty Assurance

Every S3030-1-NA-SB unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, communication interface check, and output stage validation. Units are shipped in anti-static packaging with appropriate cushioning for international freight.

In the event of a warranty claim, TOPNLMS provides a replacement unit or repair service with a target response time of 3 business days from claim receipt. Our technical team is available to assist with installation questions, parameter restoration, and commissioning support via email and phone.

We maintain standing inventory of SERVOSTAR 300 series components to support rapid dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments. Express freight options are available for critical downtime situations.

Purchasing through TOPNLMS provides full traceability documentation, including test records and shipment certificates, suitable for maintenance log requirements in regulated industries.
