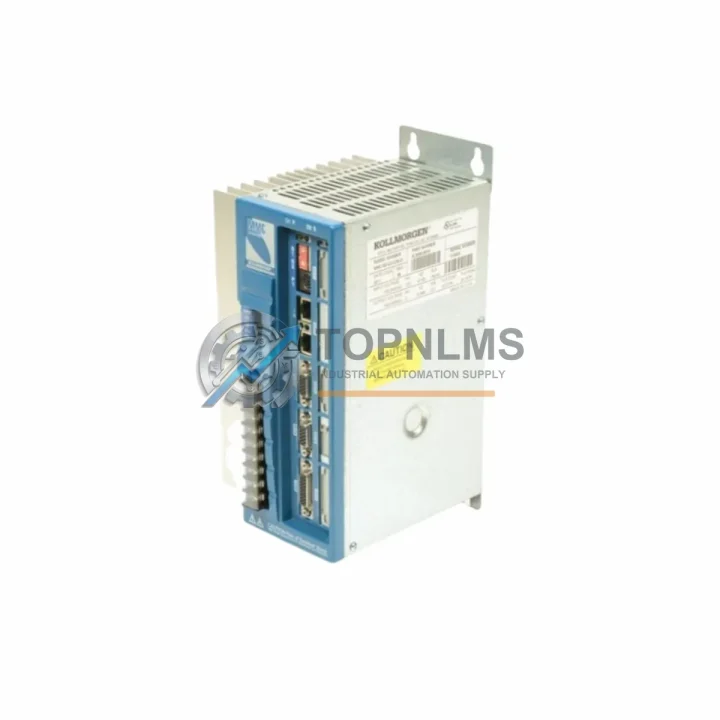

Kollmorgen MMC-SD-6.0-460-D Upgrade for MMC Series

Product Overview

Kollmorgen MMC-SD-6.0-460-D Upgrade for MMC Series: Seamless Transition from Legacy Servo Systems

The Kollmorgen MMC-SD-6.0-460-D is a 460V, 6A multi-axis servo drive module designed for the MMC (Multi-axis Motion Controller) Series platform. As legacy motion control systems age and original components reach end-of-life, engineering teams face increasing pressure to source verified replacement units that maintain full compatibility with existing wiring harnesses, motor feedback devices, and motion programs — without triggering a full system redesign.

This unit is a direct replacement for worn, failed, or discontinued MMC-SD-6.0-460-D drives installed in Kollmorgen MMC-based control cabinets. Whether your facility is running a multi-axis gantry, a coordinated web tension system, or a precision packaging line, this servo drive module slots into the existing MMC backplane without requiring changes to the motion program or axis configuration stored in the Kollmorgen MMC controller.

The MMC-SD-6.0-460-D interfaces directly with the MMC system bus, sharing power distribution and communication infrastructure with other axis modules in the same rack. During a retrofit, engineers typically retain the existing MMC power supply module and MMC system bus terminator, replacing only the failed drive axis. This approach dramatically reduces downtime compared to a full drive system replacement, as the motion program, axis parameters, cam profiles, and electronic gearing ratios remain intact in the MMC controller memory.

Wiring compatibility is a critical factor in any servo drive replacement. The MMC-SD-6.0-460-D uses the standard Kollmorgen MMC motor feedback connector pinout, supporting resolver, SinCos encoder, and EnDat 2.1 feedback devices. If your existing servo motor — such as a Kollmorgen AKM series or legacy Goldline series brushless servo motor — uses one of these feedback types, the replacement drive will accept the existing motor cable without re-termination. The power output connector follows the standard MMC drive module layout, meaning the existing motor power cable can be reconnected directly.

For facilities upgrading from older Kollmorgen platforms such as the Servostar 600 or Servostar CD series, the MMC-SD-6.0-460-D represents a significant architectural shift — from standalone drive topology to a fully integrated multi-axis backplane architecture. In these migration scenarios, the Kollmorgen WorkBench commissioning software is used to configure axis parameters, tune current and velocity loops, and verify feedback device compatibility before the system is returned to production. The MMC platform’s centralized motion coordination eliminates the need for external motion controllers or inter-drive synchronization hardware.

Physical installation follows the standard MMC module form factor. The drive occupies a single slot in the MMC rack and is secured by the standard module locking mechanism. No additional mounting hardware or DIN rail adapters are required. Cabinet space planning should account for the module’s heat dissipation requirements; in high-density installations, the existing MMC rack cooling fan assembly should be inspected and replaced if necessary to ensure adequate airflow across all drive modules.

Communication between the MMC controller and drive modules is handled entirely over the internal MMC system bus — no external fieldbus wiring (such as PROFIBUS, CANopen, or EtherCAT) is required between the controller and drive axes. This simplifies the replacement process considerably, as there are no fieldbus node addresses to reassign or network topology changes to implement. If the broader machine network includes a Kollmorgen MMC PROFIBUS DP master module or an MMC DeviceNet interface module, these upstream communication components are unaffected by a single-axis drive replacement.

For procurement teams managing spare parts inventory, the MMC-SD-6.0-460-D is a high-priority stocking item for any facility running Kollmorgen MMC-based multi-axis systems. As the MMC platform matures, sourcing verified original units becomes increasingly important to avoid compatibility issues associated with counterfeit or refurbished modules. Each unit shipped from our Xiamen warehouse undergoes functional verification testing prior to dispatch, and is accompanied by documentation confirming the unit’s operational status.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MMC-SD-6.0-460-D replacement is rarely a single-component event. In practice, field engineers conducting a drive module swap will often inspect and address adjacent components in the same MMC rack. The Kollmorgen MMC power supply module — which provides regulated DC bus voltage to all drive axes — should be load-tested if it has not been serviced recently, as a degraded power supply can cause intermittent faults on newly installed drive modules. Similarly, the MMC system bus terminator plug should be confirmed as correctly seated, since a loose terminator is a common source of axis communication errors after a module swap.

If the replacement is part of a broader system modernization, engineering teams may also evaluate upgrading the Kollmorgen MMC controller CPU module to a later firmware revision, which can unlock improved axis synchronization performance and expanded cam table capacity. In multi-axis installations where some axes are being upgraded while others remain on legacy hardware, the Kollmorgen MMC I/O expansion module provides additional digital and analog I/O capacity without requiring changes to the existing rack layout.

For facilities transitioning from standalone Servostar drives to the MMC platform, the Kollmorgen MMC-SD series in various current ratings (3A, 6A, 12A, 24A) allows a phased migration approach — replacing one axis at a time while the remaining axes continue operating on the existing hardware. This minimizes production disruption and allows the maintenance team to build familiarity with the MMC platform incrementally.

Motor-side compatibility should also be verified during the upgrade. Kollmorgen AKM servo motors with EnDat 2.1 or SinCos feedback are fully compatible with the MMC-SD-6.0-460-D and represent the recommended motor pairing for new installations. For legacy systems using older Goldline series motors with resolver feedback, the MMC-SD-6.0-460-D’s resolver input provides a direct compatibility path without requiring motor replacement.

Retrofit Guidance FAQ

Q: Can I replace the MMC-SD-6.0-460-D without modifying the motion program?
A: Yes. The MMC-SD-6.0-460-D is a direct slot-in replacement. Axis parameters, cam profiles, and electronic gearing configurations stored in the MMC controller are not affected by a drive module swap. After installation, a standard axis enable and jog test is recommended to confirm feedback device recognition before returning the machine to automatic mode.

Q: Is the motor feedback cable compatible with the replacement unit?
A: Yes, provided the existing motor uses resolver, SinCos, or EnDat 2.1 feedback. The MMC-SD-6.0-460-D uses the standard Kollmorgen MMC feedback connector pinout. No re-termination is required for compatible feedback types.

Q: What commissioning steps are required after installation?
A: Connect the module to the MMC rack, power up the system, and use Kollmorgen WorkBench to verify axis recognition and feedback device status. Perform a current loop autotune if the motor has been changed. If the same motor is retained, existing tuning parameters can typically be reloaded from the controller backup.

Q: Does the replacement unit fit the same rack slot?
A: Yes. The MMC-SD-6.0-460-D occupies a standard single MMC rack slot. No cabinet modifications or additional mounting hardware are required.

Q: What if my system uses a different voltage variant?
A: The MMC-SD-6.0-460-D is rated for 460V AC input. If your system operates at 230V, a different MMC-SD variant is required. Please confirm your system bus voltage before ordering.

Q: Can this unit replace a higher or lower current-rated MMC-SD module?
A: No. The 6.0A rating must match the original specification. Substituting a different current rating will result in axis configuration mismatches and potential motor protection issues.

Warranty Assurance

Every Kollmorgen MMC-SD-6.0-460-D unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional verification process including power-on self-test, system bus communication check, and output stage verification. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to fault verification. Our technical support team is available to assist with installation questions, feedback device compatibility checks, and WorkBench commissioning guidance throughout the warranty period.

For procurement teams managing critical spare parts programs, we offer reserved stock arrangements for high-priority SKUs. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options for Kollmorgen MMC series components.

Shipping is handled from our Xiamen warehouse with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment.
