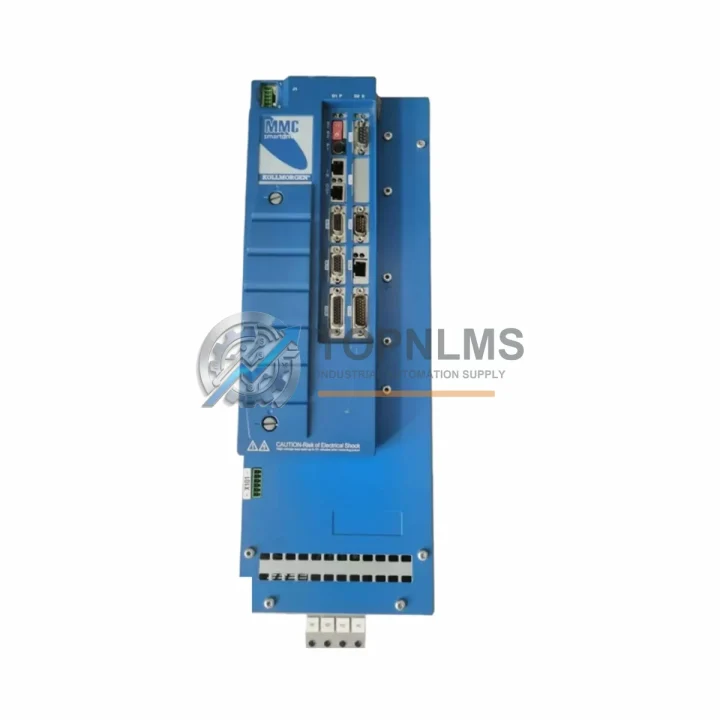

KOLLMORGEN MMC-SD-12.0-460-D Replacement for MMC Smart Drive

Product Overview

KOLLMORGEN MMC-SD-12.0-460-D Replacement for MMC Smart Drive: Smooth Transition & Legacy System Compatibility

The KOLLMORGEN MMC-SD-12.0-460-D is a 12A, 460V digital servo amplifier from the MMC Smart Drive series — a platform widely deployed across precision motion control systems in CNC machining, packaging automation, semiconductor handling, and industrial robotics. As legacy MMC Smart Drive installations age and original units reach end-of-life, sourcing a verified, drop-in replacement becomes critical to maintaining uptime without triggering a full system redesign.

TOPNLMS supplies the MMC-SD-12.0-460-D as a direct replacement unit, fully tested prior to shipment, with a 12-month warranty. Whether you are replacing a failed amplifier in an existing MMC Smart Drive rack or upgrading a multi-axis motion system, this unit is engineered to restore operation with minimal engineering intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MMC Smart Drive system migration rarely involves a single component. In practice, engineers replacing the MMC-SD-12.0-460-D are often simultaneously addressing adjacent hardware that has reached the same service horizon. The MMC Smart Drive platform is typically installed alongside the KOLLMORGEN MMC-SD-06.0-460-D (6A axis module) and the MMC-SD-24.0-460-D (24A high-current axis) within the same multi-axis rack — making it practical to source all axis amplifiers in a single procurement cycle to standardize firmware revision and reduce future maintenance complexity.

The MMC rack infrastructure itself — including the KOLLMORGEN MMC-CB-01 controller board and the MMC-PS-460 power supply module — should be inspected during any amplifier replacement. A degraded bus capacitor in the power supply or a failing controller board can cause repeated amplifier faults that are misdiagnosed as axis module failures. Replacing the amplifier without verifying the health of the shared DC bus and the controller backplane is a common source of repeat failures in aging MMC installations.

Feedback wiring is another critical migration checkpoint. The MMC Smart Drive series supports resolver feedback via the KOLLMORGEN RES-CAB resolver cable assembly and incremental encoder feedback through standard TTL differential wiring. When swapping the MMC-SD-12.0-460-D, verify that the resolver or encoder cable shield termination at the amplifier connector is intact — shield continuity failures are a leading cause of velocity loop instability after hardware replacement.

For systems using CANopen for multi-axis coordination, the KOLLMORGEN MMC-CAN communication module and associated CANopen network termination resistors should be confirmed operational before commissioning the replacement amplifier. Node address and baud rate settings stored in the original amplifier’s non-volatile memory must be re-entered or restored from a saved parameter backup using KOLLMORGEN WorkBench software.

In installations where the MMC Smart Drive interfaces with a host PLC — such as a Siemens S7-300, Allen-Bradley ControlLogix, or Mitsubishi Q-series controller — the drive enable signal, fault relay output, and analog command wiring should be verified against the original I/O schematic before powering up the replacement unit. No PLC program changes are required for a direct amplifier swap, but I/O signal levels and enable sequencing logic should be confirmed to match the replacement unit’s input specifications.

If the installation includes a KOLLMORGEN AKM servo motor or legacy Goldline series motor, motor nameplate data (pole count, resolver offset, rated current) should be re-entered into the replacement amplifier’s motor configuration parameters. This is particularly important when the original amplifier’s parameter file is unavailable and manual re-commissioning is required.

Retrofit Guidance FAQ

Q: Do I need to rewire the motor and feedback cables when installing the MMC-SD-12.0-460-D replacement?
A: No. The replacement unit uses the same terminal pinout as the original MMC Smart Drive axis module. Motor power, resolver/encoder feedback, and I/O connectors are pin-compatible. No rewiring is required for a standard swap.

Q: Can I reuse my existing parameter file from the failed amplifier?
A: Yes, if you have a saved parameter backup from KOLLMORGEN WorkBench. If the original amplifier is completely non-functional and no backup exists, parameters must be re-entered manually using the motor nameplate data and original commissioning documentation.

Q: Is the MMC-SD-12.0-460-D compatible with CANopen multi-axis systems?
A: Yes. The unit supports CANopen communication consistent with the MMC Smart Drive platform. Node address and baud rate must be configured to match the original axis assignment before network commissioning.

Q: Will the replacement amplifier fit in the existing MMC rack without mechanical modification?
A: Yes. The MMC-SD-12.0-460-D is a rack-mount module designed for the standard MMC backplane. No mechanical modification to the control cabinet or rack is required.

Q: What is the lead time and shipping arrangement?
A: Units are stocked and dispatched from Xiamen, China. Standard international shipping is available with DHL, FedEx, and UPS. Express delivery to most destinations is achievable within 3–7 business days. Contact us for urgent requirements.

Warranty Assurance

Every KOLLMORGEN MMC-SD-12.0-460-D unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, output current check, and communication interface validation. Units that do not pass pre-shipment inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or full refund within the warranty period. Our technical support team is available to assist with installation questions, parameter configuration guidance, and fault diagnosis. We maintain stock of common MMC Smart Drive series modules to support rapid replacement without extended lead times.

For procurement teams managing planned maintenance or emergency breakdown sourcing, we offer consolidated invoicing, packing lists with serial numbers, and test reports on request. All units are shipped in anti-static packaging with appropriate export documentation for international customs clearance.

Contact our industrial automation parts team for availability confirmation, volume pricing, and technical pre-sales support.
