KLA-Tencor 23663-001 Replacement for FAB 23662-000

Product Overview

KLA-Tencor 23663-001 Replacement for FAB 23662-000: Seamless Transition & Compatible Upgrade

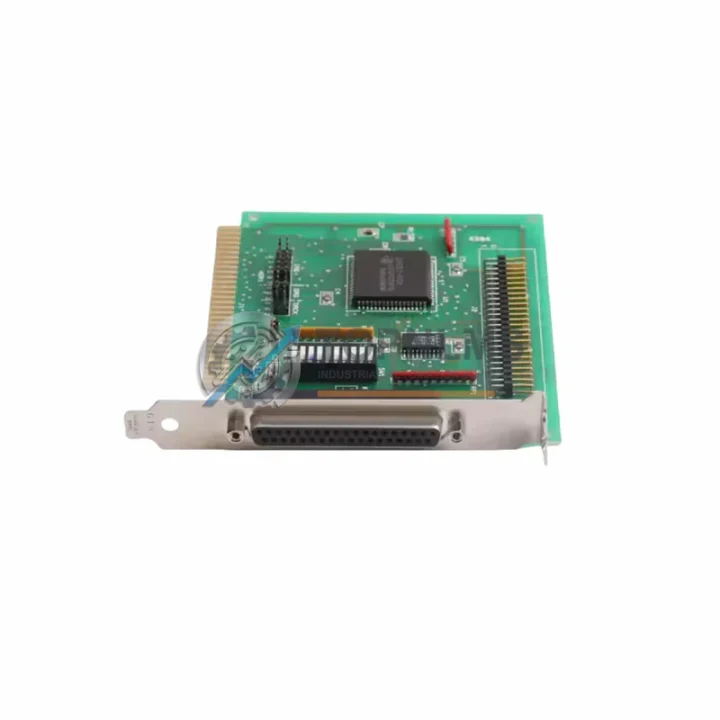

When your KLA-Tencor semiconductor inspection system relies on the 23663-001 Communications Board (also referenced as FAB 23662-000 and assembly code 941302), any unplanned downtime translates directly into yield loss and production delays. TOPNLMS supplies this board as a verified replacement and upgrade solution, engineered to restore full communications functionality within your existing inspection platform without requiring system-level redesign, re-cabling, or software reconfiguration.

The 23663-001 board serves as the primary communications interface within KLA-Tencor wafer inspection and reticle inspection platforms. It manages high-speed data exchange between the inspection optics subsystem, the motion controller, and the host workstation. Facilities running legacy KLA-Tencor inspection tools — including those built around the FAB 23662 chassis architecture — frequently encounter obsolescence challenges as original boards reach end-of-life or suffer field failures. Our replacement unit is sourced, tested, and shipped to minimize your mean time to repair (MTTR).

Compatibility Comparison Table

Seamless Upgrade Solutions

A communications board replacement rarely occurs in isolation. In most KLA-Tencor inspection tool retrofits, the 23663-001 board is replaced as part of a broader effort to restore system stability or extend tool life. During the upgrade process, engineers commonly address adjacent components that share the same chassis, backplane, or signal path.

For facilities upgrading from older FAB 23662-based inspection platforms, the 941302 assembly is often replaced alongside the motion controller interface card that governs stage positioning and scan synchronization. If the host workstation communication link has degraded, the SCSI or fiber-channel interface board within the same card cage may also require attention. In systems where the inspection optics subsystem has been upgraded to a newer sensor generation, the image acquisition board — which works in tandem with the 23663-001 — should be verified for firmware compatibility before the replacement board is commissioned.

Power integrity is equally critical. The FAB 23662 chassis relies on a multi-rail DC power distribution board to supply stable voltages to all PCB slots. If the communications board failure was preceded by intermittent resets or data corruption events, the power supply module feeding the card cage should be inspected and replaced if output ripple exceeds specification. Many facilities source the backplane termination resistor assembly at the same time to eliminate latent signal integrity issues.

For tools that interface with automated material handling systems (AMHS) or fab-level MES networks, the host interface communications module — responsible for SECS/GEM or HSMS protocol translation — is a common co-replacement item. Ensuring the 23663-001 replacement board is paired with a verified SECS/GEM interface card eliminates protocol handshake failures that can prevent the tool from re-qualifying after maintenance.

Finally, facilities performing a full preventive maintenance cycle alongside this replacement often address the cooling fan assembly and chassis air filter module within the FAB 23662 enclosure, ensuring thermal management is restored to specification before the tool returns to production. TOPNLMS can source and supply these associated components to support a complete, single-vendor procurement for your maintenance event.

Retrofit Guidance FAQ

Q: Will the replacement 23663-001 board work without any wiring changes?
A: Yes. The replacement board uses the identical connector layout and pinout as the original FAB 23662-000. No rewiring, cable modification, or adapter is required. Simply remove the failed board under ESD-safe conditions and insert the replacement into the same slot.

Q: Do I need to reload recipes or reconfigure the host workstation software?
A: No software reconfiguration is required on the host workstation. The 23663-001 board does not store recipe data; all inspection recipes and process parameters reside on the host workstation or network storage. The replacement board is transparent to the software layer.

Q: Is the board compatible with all FAB 23662 chassis revisions?
A: The 23663-001 is designed for the FAB 23662 chassis family. If your tool has undergone a major hardware revision or chassis swap, please provide your tool serial number and chassis revision when contacting TOPNLMS so we can confirm compatibility before shipment.

Q: What communication protocols does this board support?
A: The 23663-001 manages KLA-Tencor’s proprietary internal communications bus between subsystems. For external fab network communications (SECS/GEM, HSMS), those functions are handled by a separate interface module. This board does not require any protocol configuration changes.

Q: How much physical space does the replacement board require?
A: The replacement board is dimensionally identical to the original. It occupies the same single card slot within the FAB 23662 chassis. No chassis modification, bracket adjustment, or cable rerouting is needed.

Q: What is the recommended procedure for commissioning the replacement board?
A: Power down the inspection tool following your site’s lockout/tagout (LOTO) procedure. Remove the failed 23663-001 board using ESD-safe handling. Insert the replacement board into the same slot and secure the retention hardware. Power up the tool and verify that the host workstation establishes communication with all subsystems before loading a qualification recipe. TOPNLMS recommends running a full system self-test (SST) sequence before returning the tool to production.

Warranty Assurance

Every 23663-001 Communications Board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our support team at [email protected] or +86 18359293191 with your order number and a description of the fault. Our team will assess the claim and arrange a replacement shipment or credit resolution within a commercially reasonable timeframe. We do not require customers to return the failed unit before a replacement is dispatched in cases where downtime risk is critical.

TOPNLMS maintains stock of high-demand KLA-Tencor spare parts to support rapid fulfillment. Standard orders are processed and shipped within 1–3 business days from our Xiamen warehouse. Expedited shipping options are available for urgent maintenance events. All units are packed in anti-static packaging with appropriate cushioning to ensure safe transit to your facility anywhere in the world.

Our procurement guarantee is simple: if the part does not match the specification described on this page, we will replace it or refund your purchase — no questions asked. We understand that semiconductor fab maintenance operates under strict uptime requirements, and our after-sales response is structured to match that urgency.
