KITZ SCT IVBH25CA-NWF-12-SC Original Industrial Spare SCT

Product Overview

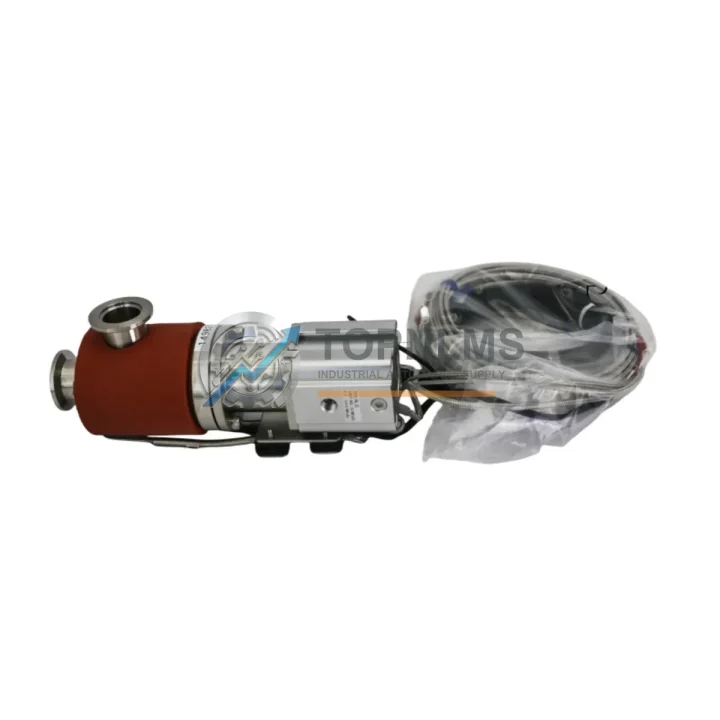

KITZ SCT IVBH25CA-NWF-12-SC Original Industrial Spare SCT: System Stability Through Proven Pneumatic Control

In process-critical environments, a single failed pneumatic ball valve can cascade into unplanned downtime, production loss, and costly emergency procurement. The KITZ SCT IVBH25CA-NWF-12-SC — part of the trusted SCT Series pneumatic actuated ball valve lineup — is an original, factory-sourced spare component engineered for demanding industrial process control applications. Whether you are managing a scheduled turnaround, responding to an unplanned shutdown, or building a strategic spare parts inventory, this valve delivers the dimensional accuracy, material integrity, and actuator compatibility required to restore your system to full operational status with minimal intervention.

KITZ SCT Corporation has long been recognized in the industrial automation and fluid control sectors for manufacturing valves that meet rigorous JIS, ISO, and ANSI standards. The IVBH25CA-NWF-12-SC is no exception — it is designed for direct replacement in existing SCT Series installations without modification to pipework, actuator mounting, or control signal wiring, making it the preferred choice for maintenance engineers who cannot afford extended commissioning windows.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a pneumatic ball valve rarely fails in isolation. The IVBH25CA-NWF-12-SC sits within a broader pneumatic control circuit, and a comprehensive inspection or replacement program should address the entire loop to prevent repeat failures and maximize mean time between maintenance events.

When replacing or inspecting the IVBH25CA-NWF-12-SC, it is standard practice to simultaneously verify the condition of the SC-series pneumatic actuator paired to this valve — worn actuator seals and O-rings are a common root cause of valve hunting or incomplete stroke. The solenoid valve pilot (typically a 4V210 or equivalent 5/2-way solenoid) that commands the actuator should be tested for response time and coil resistance; a sluggish solenoid will mask itself as a valve fault until the next shutdown. Upstream, the air filter-regulator-lubricator (FRL) unit supplying instrument air to the actuator should be drained and inspected — contaminated or wet instrument air accelerates actuator seal degradation and corrodes the valve stem packing.

Within the same control cabinet or field junction box, maintenance teams should audit the I/O module channel assigned to this valve’s position feedback — a faulty discrete input channel can generate false open/close alarms that are misdiagnosed as valve mechanical failure. The 24VDC power supply module feeding the solenoid and position transmitter should be load-tested; voltage sag under full panel load is a known cause of intermittent solenoid dropout. If the installation uses a positioner or smart valve controller (such as a KITZ SCT EP series or equivalent), the positioner’s zero and span calibration should be verified after any valve body replacement to ensure accurate mid-travel positioning.

For installations in chemical or corrosive environments, the valve stem packing and gland assembly should be inspected for fugitive emissions compliance. Companion components worth stocking alongside the IVBH25CA-NWF-12-SC include PTFE stem packing repair kits for the SCT series, limit switch boxes (NAMUR-mount, compatible with ISO 5211 F05), and signal isolators or barriers for the 4–20 mA position feedback loop if the installation is in a hazardous area. Finally, the terminal blocks and cable glands on the field junction box should be torque-checked and inspected for moisture ingress — loose terminations are a disproportionate source of spurious valve fault alarms in humid or outdoor installations.

A disciplined preventive maintenance cycle — typically aligned with annual plant turnarounds or every 500,000 actuator cycles — that addresses the valve body, actuator, solenoid, FRL, I/O channel, and power supply as a system will dramatically reduce unplanned downtime and extend the operational life of your process control infrastructure.

Strategic Replacement Solutions

The IVBH25CA-NWF-12-SC is engineered as a direct drop-in replacement for aging or failed units within SCT Series pneumatic valve assemblies. Its dimensional conformance to JIS 10K flanging standards and ISO 5211 actuator mounting ensures that no pipework modification, actuator re-drilling, or control system reconfiguration is required during replacement — a critical advantage when minimizing mean time to repair (MTTR) during unplanned outages.

For facilities managing legacy process control systems originally commissioned 10–20 years ago, sourcing original KITZ SCT spare parts rather than generic alternatives eliminates the risk of dimensional mismatch, seat material incompatibility, and actuator torque misalignment that frequently result in premature re-failure. Original spares also preserve OEM documentation traceability, which is increasingly required for ISO 9001, ATEX, and SIL compliance audits.

Stocking one or two units of the IVBH25CA-NWF-12-SC as a critical spare — particularly in facilities where this valve controls a key process stream — is a straightforward risk mitigation measure. The cost of holding a spare is typically recovered within the first hour of avoided downtime. For multi-unit installations, a min-max inventory policy (minimum 1 unit on-shelf, reorder at 1, maximum 3 units) is recommended to balance carrying cost against stockout risk.

All units supplied by TOPNLMS are tested prior to shipment — including actuator stroke verification, seat leakage test to ANSI/FCI 70-2 Class VI, and dimensional inspection — ensuring that the replacement valve is ready for immediate installation upon receipt.

Support FAQ

Q1: Is the IVBH25CA-NWF-12-SC a genuine KITZ SCT original part?
Yes. All units supplied are original KITZ SCT Corporation manufactured components, not aftermarket or OEM-equivalent substitutes. Each unit is traceable to KITZ SCT production documentation and carries a 12-month warranty from the date of shipment.

Q2: What is the lead time and how is the valve tested before shipment?
In-stock units typically ship within 1–3 business days. Prior to dispatch, each valve undergoes actuator stroke testing, seat leakage verification, and visual dimensional inspection. A test report is available upon request for quality-critical installations.

Q3: Can this valve replace an older IVBH25CA-NWF-12-SC that has been in service for over 10 years?
Yes. The current production IVBH25CA-NWF-12-SC maintains dimensional and functional compatibility with earlier production runs. The ISO 5211 F05/F07 actuator interface and JIS 10K flange dimensions are unchanged, ensuring a direct fit without modification.

Q4: What warranty and after-sales support is provided?
A 12-month warranty covers manufacturing defects under normal operating conditions. TOPNLMS provides pre-sales compatibility verification, post-sales technical support, and replacement coordination for warranty claims. Contact our team at [email protected] or +86 18359293191 for assistance.
