Keyence LJ-V7001 Ruggedized 2D Laser Profiler for Harsh Environments

Product Overview

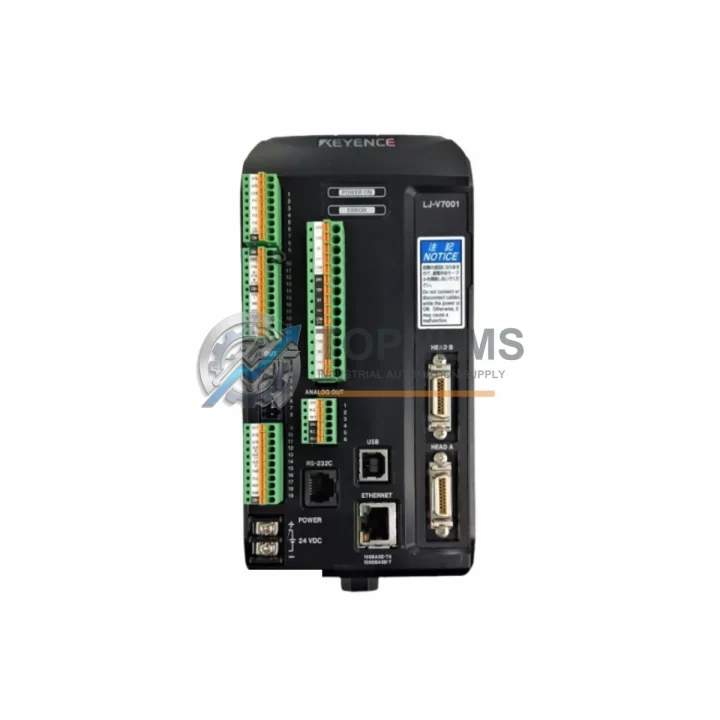

Keyence LJ-V7001 Ruggedized 2D Laser Profiler Controller: Industrial Resilience for Harsh Environments

The Keyence LJ-V7001 is a high-precision 2D laser profiler controller from the LJ-V7000 Series, engineered to deliver consistent, sub-micron measurement accuracy in the most demanding industrial environments. Whether deployed on a high-speed automotive stamping line, a continuous steel rolling mill, or a semiconductor wafer inspection cell, the LJ-V7001 maintains measurement integrity under conditions that would compromise lesser instrumentation — including elevated temperatures, high humidity, airborne particulate, mechanical vibration, and intense electromagnetic interference.

At TOPNLMS, we stock genuine Keyence LJ-V7001 units that have passed pre-shipment functional verification. Every unit ships with a 12-month quality warranty, full documentation, and dedicated technical support from our industrial automation specialists based in Xiamen, China.

Rugged Specifications Table

Comprehensive Protection Solutions

The LJ-V7001 controller is the intelligence hub of a complete inline measurement architecture. In a typical high-throughput production cell, it works in concert with the Keyence LJ-V7060 or LJ-V7080 laser sensor heads, which capture raw profile data at line speed while the LJ-V7001 processes, filters, and outputs dimensional results in real time. This tight sensor-controller pairing eliminates latency that could otherwise cause false rejects or missed defects on fast-moving conveyor systems.

For process control integration, the LJ-V7001 communicates natively over EtherNet/IP and PROFINET, making it straightforward to connect to a Siemens S7-1500 PLC or a Mitsubishi MELSEC iQ-R series controller without custom protocol bridges. In DCS-governed facilities — such as petrochemical refineries or power generation plants — the analog output channel allows direct interfacing with Yokogawa CENTUM VP or Honeywell Experion PKS distributed control systems, feeding dimensional data into the process historian without additional signal conditioning hardware.

Within the control cabinet, the LJ-V7001 is typically installed alongside a Keyence NR-X series data logger or a dedicated industrial Ethernet switch (such as the Moxa EDS-308 or Phoenix Contact FL SWITCH series) to ensure deterministic network communication. A 24 VDC DIN-rail power supply — rated at a minimum of 5 A to accommodate the controller and connected sensor heads — provides the stable, low-ripple power that precision laser measurement demands. Surge protection modules and EMC filter terminals mounted upstream in the same cabinet further shield the LJ-V7001 from transient voltage spikes common in heavy motor-drive environments.

In safety-critical zones, the LJ-V7001 measurement output is often fed into a Pilz PNOZ or Sick Flexi Soft safety controller, where dimensional out-of-tolerance conditions can trigger a safe-state output to halt the line before a non-conforming part reaches a downstream assembly stage. Complementary Keyence IV3 series vision sensors or Keyence XG-X series vision systems are frequently deployed in parallel to provide 2D appearance inspection alongside the LJ-V7001’s 3D profile data, creating a multi-modal quality gate that dramatically reduces escape rates.

Application in Critical Infrastructure

In oil and gas pipeline manufacturing, the LJ-V7001 is used to verify weld bead geometry and pipe-end squareness at the exit of continuous welding lines operating 24/7. The controller’s high sampling rate ensures that even at line speeds exceeding 10 m/min, every millimeter of weld profile is captured and compared against API or ISO dimensional tolerances — with non-conforming sections flagged for automatic diversion before they enter the hydrostatic test station.

In mining and mineral processing, where vibration from crushers and conveyors is constant, the LJ-V7001’s robust mechanical design and vibration-tolerant signal processing allow it to maintain measurement repeatability that would be impossible with contact-based gauging. It is commonly used to monitor the wear profile of conveyor belt rollers and the dimensional consistency of crushed aggregate fractions, feeding data to a Rockwell ControlLogix PLC that adjusts crusher gap settings in closed-loop.

In power generation and electrical infrastructure, the LJ-V7001 is deployed for transformer core lamination stack-height verification and generator rotor slot inspection — applications where sub-millimeter dimensional deviations translate directly into efficiency losses or premature insulation failure. The controller’s EtherNet/IP interface allows measurement data to be archived in the plant’s OSIsoft PI historian for long-term trend analysis and predictive maintenance scheduling.

In metallurgy and steel production, the LJ-V7001 handles hot-strip thickness profiling and cold-rolled coil edge detection in environments where ambient temperatures near the measurement zone can exceed 60 °C and airborne iron oxide particulate is pervasive. Remote sensor head mounting — with the LJ-V7001 controller housed in a climate-controlled panel — keeps the processing electronics well within their rated operating envelope while the sensor head operates in the harsh near-process zone.

In water treatment and municipal infrastructure, the LJ-V7001 is used for pipe joint gap measurement during large-diameter HDPE pipe assembly and for verifying the flatness of valve seat faces before installation in high-pressure distribution mains — ensuring leak-free joints that meet EN 805 or AWWA C900 standards.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Our technical team typically responds within one business day to assess and expedite resolution.

Q2: How is each LJ-V7001 unit tested before shipment?
Every Keyence LJ-V7001 unit in our inventory undergoes a pre-shipment functional check that includes power-on verification, communication interface testing (Ethernet, RS-232C), and a basic profile acquisition test using a reference target. Units that do not pass all checks are quarantined and not shipped. A test record is available upon request for customers with incoming inspection requirements.

Q3: Is the LJ-V7001 compatible with my existing PLC or DCS platform?
The LJ-V7001 supports EtherNet/IP, PROFINET, RS-232C, and analog output, covering the vast majority of PLC and DCS platforms in current industrial use — including Siemens S7-300/400/1200/1500, Mitsubishi MELSEC Q/iQ-R, Omron NJ/NX, Rockwell ControlLogix/CompactLogix, and Yokogawa/Honeywell DCS systems. If you have a specific integration requirement, our technical team can advise on configuration and provide sample ladder logic or function block templates.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the LJ-V7001?
Yes. TOPNLMS maintains a dedicated inventory buffer of LJ-V7000 series components specifically to support customers with long production lifecycles and spare-parts programs. We can provide scheduled delivery agreements, consignment stock arrangements, and advance notification of any supply changes. For facilities operating continuous production lines where unplanned downtime is unacceptable, we recommend discussing a standing spare-parts agreement with our sales team.
