Keithley KPCI-PIO32IOA Original Industrial Spare KPCI Compatible

Product Overview

Keithley KPCI-PIO32IOA Original Industrial Spare KPCI Compatible: System Stability & Industrial Spare Maintenance Value

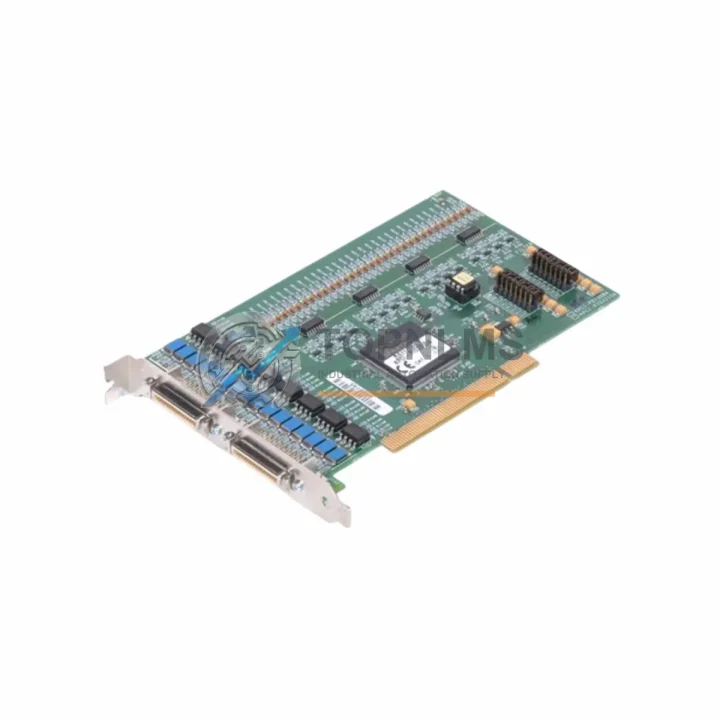

The Keithley KPCI-PIO32IOA is a 32-channel TTL-level digital I/O PCI card engineered for demanding industrial data acquisition and control environments. As an original spare part within the KPCI Series, this card is a critical component in test-and-measurement systems, automated production lines, and legacy PCI-bus control cabinets where unplanned downtime carries significant operational cost. Sourced directly and verified against OEM specifications, the KPCI-PIO32IOA from TOPNLMS is pre-tested, ready to ship, and backed by a 12-month warranty—giving maintenance engineers and procurement teams the confidence to act decisively when a replacement is needed.

In industrial facilities running continuous or semi-continuous processes, the failure of a single digital I/O card can cascade into broader system faults. The KPCI-PIO32IOA interfaces directly with host PCI bus architectures, providing 32 bidirectional TTL digital channels that can be configured for input, output, or mixed operation. Its compatibility with standard PCI slots means it can be integrated into existing control workstations and SCADA host PCs without hardware modification, preserving the integrity of validated control architectures and avoiding costly re-engineering.

For facilities managing aging automation infrastructure, maintaining a verified stock of original KPCI Series cards is a proven strategy for extending system lifespan. Rather than forcing a full platform migration when a card fails, a direct replacement with the KPCI-PIO32IOA restores full functionality within the maintenance window—minimizing production loss and preserving operator familiarity with the existing HMI and software environment.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for PCI-based control workstations goes well beyond the I/O card itself. When scheduling a maintenance window to inspect or replace the KPCI-PIO32IOA, experienced maintenance engineers use the opportunity to audit the entire control cabinet and host PC environment for latent faults that could trigger the next unplanned outage.

Begin with the 50-pin MDR-50 signal cable connecting the KPCI-PIO32IOA to the field terminal block. Cable insulation degradation, connector pin oxidation, and loose crimp terminations are among the most common causes of intermittent I/O faults that are incorrectly attributed to the card itself. Replacing the signal cable during a planned outage costs a fraction of an emergency repair. Similarly, the screw terminal block or DIN-rail terminal strip at the field wiring end should be inspected for loose connections, corrosion, and correct torque—terminal faults account for a disproportionate share of field-level signal errors in industrial environments.

The host PC’s ATX power supply unit deserves particular attention. PCI cards are sensitive to voltage rail instability; a degraded PSU delivering marginal +5 V or +3.3 V rails can cause erratic I/O behavior, data corruption, or card failure. If the host workstation is more than five years old, proactive PSU replacement is a sound investment. While the enclosure is open, inspect the PCI slot and motherboard for capacitor bulge, dust accumulation on heatsinks, and CMOS battery condition—a dead CMOS battery can cause BIOS configuration loss and system boot failures during a critical production shift.

On the field side, the 24 VDC relay modules or solid-state relay (SSR) modules driven by the KPCI-PIO32IOA’s TTL outputs should be tested for contact resistance and switching response. Relay contacts wear over time, and a relay that fails to switch reliably will produce the same symptom as a faulty I/O channel. Pairing a relay module inspection with the card replacement ensures the entire output circuit is validated. For input channels, check the associated signal isolators or optocoupler isolation modules that protect the card from field-side voltage transients—these components absorb surge energy and degrade silently over time.

If the KPCI-PIO32IOA is integrated into a broader data acquisition system alongside analog input cards (such as the Keithley KPCI-3102 or KPCI-3116), those cards should be included in the same maintenance cycle. Mixed-signal control architectures benefit from synchronized inspection schedules that reduce the total number of maintenance windows required per year. Finally, verify that the DriverLINX or Measurement Computing driver stack is current and that the associated SCADA or HMI software (such as Wonderware InTouch, iFIX, or LabVIEW) is correctly mapped to the card’s channel assignments—software configuration drift is a common post-replacement issue that delays return to production.

Strategic Replacement Solutions

The KPCI-PIO32IOA occupies a specific niche in the industrial spare parts ecosystem: it is a legacy PCI-format card that is no longer in active production, yet it remains installed in thousands of control workstations worldwide. For facilities committed to maintaining these systems through their planned operational life, sourcing an original replacement is far preferable to a forced platform migration.

A direct replacement with an original KPCI-PIO32IOA eliminates the need to revalidate software drivers, reconfigure channel mappings, or retrain operators. In regulated industries—pharmaceutical manufacturing, food processing, and utilities—this is particularly valuable, as platform changes may trigger formal revalidation procedures under GMP or IEC 62443 frameworks. The original spare preserves the validated state of the control system and allows maintenance to be completed within a standard planned outage window rather than an extended engineering project.

For facilities that have already transitioned to PCIe-based platforms, TOPNLMS can advise on compatible KPCI Series alternatives and transition planning. However, for the majority of sites still operating PCI-bus workstations, the KPCI-PIO32IOA remains the most cost-effective and operationally safe replacement choice. Each unit shipped by TOPNLMS undergoes functional verification prior to dispatch, and the 12-month warranty provides post-installation assurance that is rarely available from grey-market sources.

Support FAQ

Q1: Is the KPCI-PIO32IOA compatible with my existing DriverLINX or Measurement Computing software?
A: Yes. The KPCI-PIO32IOA is fully compatible with Keithley DriverLINX and Measurement Computing Universal Library (UL) driver stacks. No driver changes are required for a like-for-like replacement. Confirm your driver version supports your OS before installation.

Q2: How is each unit tested before shipment?
A: Every KPCI-PIO32IOA unit is functionally tested for digital I/O channel integrity, PCI bus enumeration, and TTL signal levels prior to dispatch. A test report is available on request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What is the warranty coverage and how do I make a claim?
A: All units carry a 12-month warranty from the date of shipment. Warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact [email protected] with your order number and a description of the fault. TOPNLMS will arrange replacement or repair at no additional cost.

Q4: Can I use the KPCI-PIO32IOA as a direct drop-in replacement without system reconfiguration?
A: In the vast majority of cases, yes. As an original OEM part, the KPCI-PIO32IOA is a direct drop-in replacement for a failed unit of the same model. Channel assignments, driver configuration, and software mappings are preserved. If your system uses a custom BIOS PCI slot assignment, verify slot enumeration order after installation to confirm the OS assigns the correct device index.
