KEBA k2-700-OB781-D Replacement for Kemro K2-700

Product Overview

KEBA k2-700-OB781-D Replacement for Kemro K2-700: Smooth Transition & Legacy System Compatibility

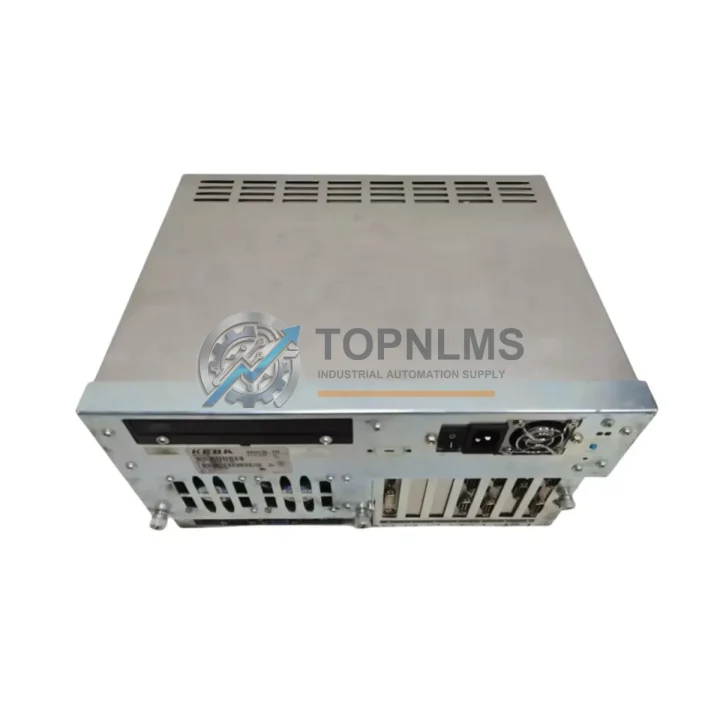

The KEBA k2-700-OB781-D Operator Bus Interface Board is a critical communication and control component within the Kemro K2-700 CNC and motion control platform. As aging Kemro K2-700 installations approach end-of-support milestones, facilities running injection molding machines, metal-cutting CNC centers, and multi-axis servo systems increasingly face the challenge of sourcing verified replacement modules to avoid unplanned downtime. This listing provides a fully tested, ready-to-ship k2-700-OB781-D replacement board, engineered to restore your existing system architecture without requiring controller reprogramming or mechanical rework.

The OB781-D serves as the operator bus interface layer between the Kemro K2-700 central controller and the machine’s operator panel, HMI terminal, and distributed I/O nodes. Its proprietary KEBA operator bus protocol handles real-time command arbitration, status feedback, and panel event routing — functions that cannot be substituted by generic fieldbus modules. When this board fails or degrades, the entire machine axis coordination and operator interaction chain is interrupted. A direct replacement with a verified k2-700-OB781-D board restores full system functionality without altering the existing ladder logic, motion programs, or axis parameter sets stored in the K2-700 controller.

For sites currently operating the Kemro K2-700 platform alongside companion modules such as the k2-700-NC781 numerical control board, the k2-700-PS781 power supply module, or the k2-700-IO781 digital I/O expansion board, the OB781-D replacement slots directly into the existing K2-700 rack without any backplane modification. The board’s edge connector pinout, bus termination resistor configuration, and DIP switch addressing are fully compatible with the original K2-700 rack architecture, meaning installation technicians can complete the swap during a scheduled maintenance window rather than a full system shutdown.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful k2-700-OB781-D retrofit rarely involves a single module in isolation. In practice, Kemro K2-700 modernization projects typically address several interdependent components simultaneously to ensure system-wide reliability. During the operator bus interface replacement, engineering teams commonly audit the k2-700-PS781 power supply module to confirm that backplane voltage rails remain within specification — a degraded power supply is a frequent root cause of intermittent operator bus communication faults that are initially misdiagnosed as OB781-D failures.

Similarly, the k2-700-NC781 numerical control board — which handles axis interpolation and motion command generation — should be verified for firmware revision compatibility with the replacement OB781-D. In multi-axis installations, the k2-700-AX781 axis controller module and associated servo drive interface cards may also require inspection, particularly if the original OB781-D failure was caused by a bus fault that propagated upstream through the rack.

For facilities upgrading the operator interface layer, the replacement OB781-D is fully compatible with KEBA’s OP series operator panels and third-party HMI terminals connected via the KEBA operator bus. If the existing panel cable harness shows wear, a replacement KEBA panel communication cable should be sourced alongside the OB781-D to prevent intermittent panel dropouts after the board swap. Distributed I/O nodes connected via the operator bus — including k2-700-IO781 digital I/O expansion modules and analog signal conditioning boards — retain their existing node address assignments and do not require reconfiguration after the OB781-D replacement.

For sites planning a broader Kemro K2-700 lifecycle extension, the k2-700-CP781 communication processor board and PROFIBUS or CANopen gateway modules used for integration with upstream SCADA or MES systems remain unaffected by the OB781-D swap, preserving existing plant-level data collection and remote monitoring configurations.

Retrofit Guidance FAQ

Q: Does replacing the k2-700-OB781-D require any changes to the machine’s PLC program or motion parameters?
A: No. The OB781-D is a hardware interface module. The K2-700 controller’s motion programs, axis parameters, and I/O mappings are stored in the NC781 and controller memory, not on the OB781-D itself. A direct board replacement restores communication without any software modification.

Q: Is the wiring to the operator panel and I/O nodes affected by the replacement?
A: No field wiring changes are required. The OB781-D connects to the operator panel and distributed I/O nodes via the K2-700 backplane bus and dedicated panel cable connectors. All existing cable harnesses remain in place.

Q: What communication protocol does the OB781-D use, and is it compatible with third-party HMI terminals?
A: The OB781-D uses KEBA’s proprietary operator bus protocol. It is designed for use with KEBA OP series panels and KEBA-compatible HMI terminals. Third-party HMI integration via PROFIBUS or CANopen is handled by separate gateway modules, not the OB781-D.

Q: How much physical space does the replacement module require in the control cabinet?
A: The replacement k2-700-OB781-D uses the identical K2-700 standard module form factor and slots directly into the existing rack position. No cabinet modifications, additional DIN rail space, or mounting hardware changes are required.

Q: Can the replacement OB781-D be used in a system running a different firmware version?
A: The replacement board is compatible with the standard K2-700 firmware baseline. If your system is running a non-standard or heavily customized firmware build, please contact our technical team with your firmware version details prior to ordering.

Q: What is the recommended commissioning procedure after installation?
A: After seating the replacement OB781-D in the rack, power up the K2-700 system and verify operator panel communication status via the controller’s diagnostic menu. Confirm all I/O node addresses are recognized and that panel event routing is functioning normally before resuming production. No DIP switch changes are required if the replacement board is installed in the same rack slot as the original.

Warranty Assurance

Every KEBA k2-700-OB781-D replacement board shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point functional inspection covering bus communication integrity, connector condition, component-level visual inspection, and power-on self-test verification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the fault and the customer’s preference. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period. Typical order processing time is 1–3 business days, with express shipping options available for urgent breakdown situations. All units are securely packaged in anti-static ESD shielding bags and foam-lined cartons to prevent transit damage.

For B2B procurement teams, we can provide product test reports, packing lists, and commercial invoices suitable for customs clearance and internal purchasing documentation. Volume pricing is available for orders of 2 or more units.
