Kawasaki 50999-2728 Replacement for D/E/F Series

Product Overview

Kawasaki 50999-2728 Replacement for D/E/F Series: Seamless Transition & Compatibility Upgrade

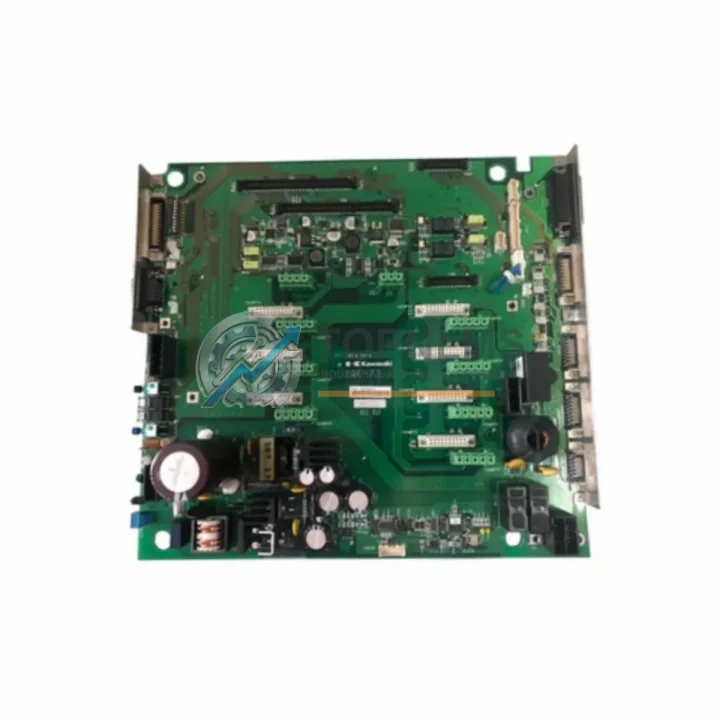

The Kawasaki 50999-2728 Controller Base Board — also referenced under part numbers 1QE-73, 1QE-13, and 1QE-83 — is the central backplane assembly for Kawasaki D-Series, E-Series, and F-Series robot controllers. As these controller generations approach or exceed their published service life, procurement teams and maintenance engineers face increasing pressure to source verified replacement boards before unplanned downtime forces a full controller swap. TOPNLMS stocks this board as a direct drop-in replacement, fully tested and ready to ship from Xiamen with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A base board replacement rarely happens in isolation. When migrating a Kawasaki D-Series or E-Series controller to a refurbished or upgraded configuration, the 50999-2728 base board is typically replaced alongside several interconnected components. The Kawasaki E-Series teach pendant and its cable assembly are often worn or damaged by the time the base board fails, making simultaneous replacement a practical decision. Similarly, the Kawasaki D-Series servo amplifier module — which interfaces directly with the base board’s drive bus — should be inspected and replaced if any axis faults persist after the base board swap.

For F-Series installations, engineers frequently pair this base board replacement with an upgrade to the Kawasaki F-Series CPU board and the associated Kawasaki F-Series I/O interface board, since the base board’s connector integrity directly affects I/O signal reliability across all installed modules. If the controller cabinet also houses a Kawasaki robot controller power supply unit (PSU), verifying its output rails before commissioning the new base board is strongly recommended — a degraded PSU is a common root cause of repeated base board failures.

Communication-intensive lines running DeviceNet or Ethernet/IP fieldbus cards in the D/E/F controller rack should also have their Kawasaki communication option boards inspected during the retrofit. The base board’s internal bus arbitration directly affects how these option boards enumerate at startup. Where the existing Kawasaki programming cable (KCwin/KRterm interface) is used for backup and restore operations, confirming cable continuity before and after the swap prevents data loss during the re-commissioning phase. Finally, for lines where the robot controller interfaces with a Kawasaki DX200-compatible I/O terminal block or third-party signal isolation relay module, verifying terminal wiring against the original I/O map is a mandatory step before returning the cell to production.

Retrofit Guidance FAQ

Q: Is wiring modification required when replacing the 50999-2728 base board?
A: No. The replacement board uses the identical connector layout and pinout as the OEM unit. All existing harnesses, servo drive cables, and I/O ribbon connectors re-seat without modification. Verify torque on all connector screws after installation.

Q: Do I need to reload the robot program after replacing the base board?
A: The base board does not store robot programs or system parameters — those reside on the CPU board and battery-backed memory. Provided the CPU board and memory modules are retained, no program reload is required. A full backup prior to any hardware swap is always recommended as a precaution.

Q: Will the replacement board affect communication with DeviceNet or Ethernet/IP option cards?
A: No. The internal bus interface on the replacement 50999-2728 is fully compatible with all standard D/E/F Series communication option boards. Node addresses and network parameters stored on the option boards are preserved.

Q: How much physical space does the replacement board require inside the controller cabinet?
A: The replacement board is dimensionally identical to the OEM 50999-2728. No cabinet modification, additional DIN rail, or bracket adaptation is needed. The board slides into the existing rack position and secures with the original fasteners.

Q: What commissioning checks are required after installation?
A: Power-on self-test (POST) should complete without error codes. Verify all axis servo ready signals, I/O module enumeration, and communication option board status via the teach pendant diagnostics screen before resuming automatic operation. A low-speed dry-run cycle is recommended before returning to full production speed.

Q: Can this board replace both the 1QE-73 and 1QE-83 variants?
A: Yes. The 50999-2728 is the master part number covering the 1QE-73, 1QE-13, and 1QE-83 sub-variants. All three designations refer to the same base board assembly used across the D, E, and F controller generations.

Warranty Assurance

Every Kawasaki 50999-2728 Controller Base Board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point functional test covering power rail integrity, bus communication continuity, connector condition, and visual inspection for component damage or corrosion. Units that do not pass all test criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial fault assessment and 72 hours for replacement dispatch. Customers are not required to return the defective unit before a replacement is dispatched for critical production downtime situations — contact us directly to arrange expedited handling.

We maintain buffer stock of the 50999-2728 and related D/E/F Series components to support rapid fulfillment. Standard lead time from order confirmation to dispatch is 1–3 business days. Express international shipping options are available for urgent requirements.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices in formats compatible with import customs requirements across major markets.
