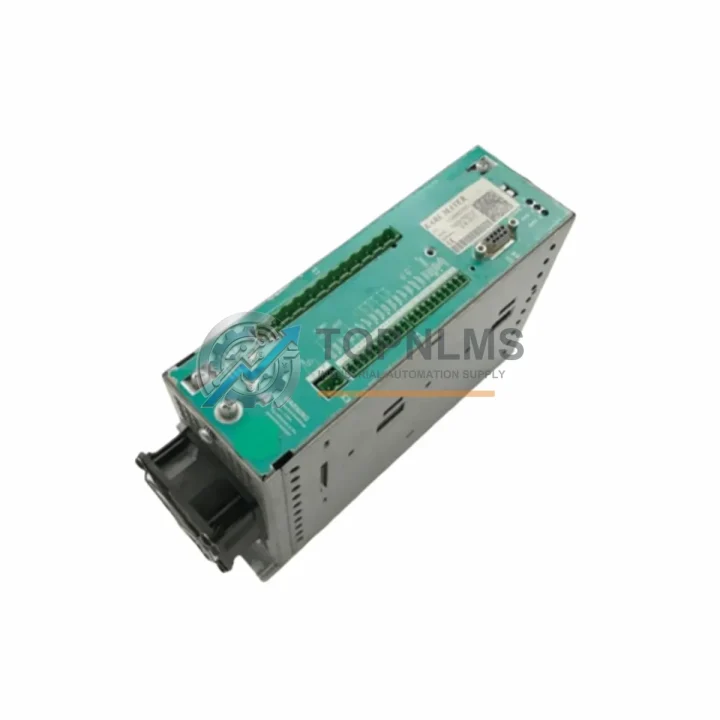

KARL MAYER CDB34.005C2.4-H36 Replacement/Upgrade Solution

Product Overview

KARL MAYER CDB34.005C2.4-H36 Replacement/Upgrade Solution: Seamless Transition from Legacy Servo Systems

The KARL MAYER CDB34.005C2.4-H36 is a high-performance AC Servo Drive from KARL MAYER’s CDB34 series, engineered for precision motion control in warp knitting machines, textile production lines, and industrial automation systems. As KARL MAYER continues to evolve its drive platform, many facilities operating legacy CDB34-series servo drives face the challenge of sourcing reliable replacements or planning a controlled upgrade path — without disrupting production schedules or incurring excessive downtime.

TOPNLMS specializes in exactly this scenario: supplying tested, verified CDB34.005C2.4-H36 units for direct replacement or as part of a broader servo system modernization. Whether your existing drive has failed, is approaching end-of-service life, or you are proactively building a spare-parts inventory, our stock is pre-inspected, function-tested, and ready to ship from Xiamen within 1–3 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CDB34.005C2.4-H36 retrofit rarely involves the servo drive in isolation. In practice, engineers upgrading or replacing this unit within a KARL MAYER warp knitting machine or multi-axis servo system will also need to evaluate several adjacent components to ensure the entire drive chain operates reliably after the swap.

On the motor feedback side, the H36 designation indicates a specific encoder interface variant. If the existing KARL MAYER servo motor — typically a synchronous AC servo motor matched to the CDB34 platform — has accumulated significant operating hours, it is prudent to inspect or replace the encoder simultaneously. Doing so avoids a secondary failure shortly after the drive replacement and eliminates the need for a second machine shutdown.

The CDB34.005C2.4-H36 operates within a coordinated multi-axis architecture. In KARL MAYER systems, multiple CDB34-series drives share a common DC bus, supplied by a central CDB34 regenerative power supply module or line filter unit. Before commissioning the replacement drive, verify that the shared DC bus voltage is within specification and that the power supply module — often a CDB34 infeed/regeneration unit — is functioning correctly. A degraded power supply module can cause the new drive to fault immediately upon startup, leading to misdiagnosis.

Communication integrity is equally critical. The CDB34 series typically communicates with the machine’s main controller via a PROFIBUS-DP interface module or KARL MAYER’s proprietary fieldbus. If the existing PROFIBUS connector, termination resistor, or DP cable segment serving the failed drive has been damaged — a common occurrence when a drive fails catastrophically — these should be replaced as part of the same maintenance window. Reusing a compromised bus segment can introduce intermittent communication faults that are difficult to trace after the machine returns to production.

For parameter backup and restoration, a KARL MAYER programming cable or service dongle compatible with the CDB34 platform is essential. Drive parameters — including axis gain settings, speed limits, torque curves, and homing offsets — must be restored precisely to match the machine’s original configuration. If the original parameter file is unavailable, TOPNLMS can assist in sourcing factory default parameter sets for the CDB34.005C2.4-H36 based on the machine model and production year.

In installations where the control cabinet also houses KARL MAYER I/O expansion modules or digital/analog signal conditioning cards, confirm that the I/O wiring routed through the failed drive’s terminal block has not been damaged by the fault event. Signal isolators or terminal relay modules may need replacement if the original drive failure involved an overcurrent or overvoltage condition that propagated upstream.

Finally, for facilities planning a phased modernization rather than a like-for-like replacement, the CDB34.005C2.4-H36 can serve as a stable interim solution while the broader control architecture — including the KARL MAYER machine controller, HMI panel, and fieldbus master — is evaluated for upgrade to a current-generation platform. This approach minimizes capital expenditure while restoring full production capability immediately.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness when replacing the CDB34.005C2.4-H36?
A: Yes. The H36 variant uses a standardized encoder and power connector layout consistent across the CDB34 series. The existing motor power cable, encoder feedback cable, and DC bus connections can be transferred directly to the replacement unit without modification, provided the connectors and cable insulation are in good condition.

Q: Do I need to reprogram the drive after installation?
A: The replacement drive ships without machine-specific parameters. You will need to restore the axis parameters using the KARL MAYER service software and a compatible programming interface. If you have a backup parameter file from the original drive, restoration takes approximately 15–30 minutes. If no backup exists, parameters must be re-entered manually from the machine documentation or re-tuned on-site.

Q: Is the CDB34.005C2.4-H36 compatible with PROFIBUS-DP networks?
A: Yes. The CDB34 series supports PROFIBUS-DP communication. The replacement drive will assume the same PROFIBUS node address as the original unit once configured. No changes to the PLC program or PROFIBUS master configuration are required, provided the node address and GSD file remain unchanged.

Q: Will the replacement drive fit in the existing control cabinet without modification?
A: The CDB34.005C2.4-H36 has the same physical dimensions and mounting pattern as other CDB34-series drives. No cabinet re-engineering, additional DIN rail space, or cooling modifications are required for a direct replacement.

Q: What should I check before powering up the replacement drive?
A: Before energizing, verify DC bus voltage is within the specified range, confirm all encoder and motor power connections are secure and correctly oriented, check that the PROFIBUS termination is intact, and ensure the drive’s node address is set correctly via the onboard DIP switches or software configuration. A pre-power insulation resistance check on the motor cable is also recommended if the machine has been idle for an extended period.

Q: Can the CDB34.005C2.4-H36 replace drives from adjacent CDB34 sub-variants?
A: Cross-variant compatibility within the CDB34 family depends on the specific current rating, encoder interface, and firmware version. The .005C2.4-H36 designation indicates a specific power class and encoder type. Substitution across sub-variants should be confirmed against the machine’s electrical schematic and KARL MAYER’s compatibility documentation before installation.

Warranty Assurance

Every KARL MAYER CDB34.005C2.4-H36 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment process includes functional power-on testing, visual inspection for physical damage, and verification of key electrical parameters. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement or repair process. Contact our technical team at [email protected] with your order number and a description of the fault. We will respond within 1 business day with a resolution path. Return shipping for confirmed warranty cases is coordinated by TOPNLMS.

For time-critical production environments, we recommend discussing advance replacement options at the time of purchase. We maintain buffer stock of high-demand CDB34-series components to support rapid response for customers with active service agreements.

Standard lead time for in-stock units is 1–3 business days from order confirmation to dispatch. International shipments are handled via DHL Express, FedEx International Priority, or equivalent carriers, with full tracking provided. Export documentation, including commercial invoice and packing list, is prepared in compliance with Chinese customs regulations and destination-country import requirements.
