JETTER JX6-BASIS-8 Ruggedized Backplane for Harsh Environments

Product Overview

JETTER JX6-BASIS-8 Ruggedized 8-Slot Backplane: Industrial Resilience for Harsh Environments

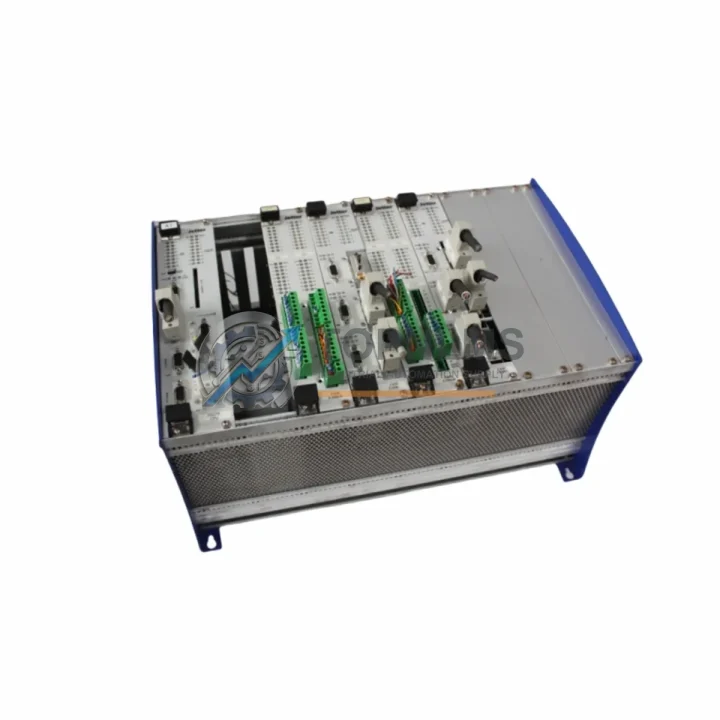

The JETTER JX6-BASIS-8 is an 8-slot modular backplane rack engineered for the JX6 series of programmable logic controllers. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this backplane forms the structural and electrical backbone of any JX6-based control system. Its robust mechanical construction and shielded bus architecture ensure uninterrupted signal integrity even in the presence of strong electromagnetic interference (EMI) generated by variable frequency drives, high-current contactors, and large motor starters commonly found in process industries.

In continuous production environments where downtime is measured in thousands of dollars per minute, the JX6-BASIS-8 provides the stable platform that keeps every inserted module — from CPU and I/O cards to communication and safety modules — operating within specification. Its passive backplane design eliminates active components that could fail under thermal stress, making it a preferred choice for long-lifecycle control cabinet installations in oil and gas, power generation, metallurgy, and chemical processing facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The JX6-BASIS-8 backplane is rarely deployed in isolation — it is the integration hub that unifies an entire JX6 control architecture. In a typical heavy-industry control cabinet, the backplane hosts the JX6-CPU central processing unit alongside multiple JX6-DIO digital I/O modules that interface directly with field sensors, limit switches, and solenoid valves operating in explosive or corrosive atmospheres. Analog process variables — temperature, pressure, and flow — are captured by JX6-AIO analog input/output modules seated in adjacent slots, delivering 16-bit resolution even under high-frequency electrical noise.

Communication integrity across the plant floor is maintained through JX6-COM communication modules supporting PROFIBUS-DP, CANopen, and Ethernet/IP protocols, enabling seamless data exchange with SCADA systems and distributed control system (DCS) supervisory layers. Where functional safety is mandated by IEC 61508 or IEC 62061, dedicated JX6 safety I/O modules can be integrated into the same backplane, consolidating safe and standard control within a single compact rack — a significant advantage in space-constrained offshore platforms or underground mining substations.

Power supply stability is equally critical. Industrial-grade JETTER 24 VDC power supply units with wide-range AC input and active power factor correction feed the backplane bus, ensuring clean, regulated voltage even when heavy motor loads cause significant line voltage fluctuations. Downstream, terminal block modules and marshalling panels distribute field wiring in an organized, maintainable layout that reduces commissioning time and simplifies fault isolation during planned maintenance shutdowns.

For applications requiring motion coordination, the JX6-BASIS-8 can host JX6 servo axis modules that synchronize multi-axis positioning with sub-millisecond cycle times — essential in automated welding lines, press brake systems, and precision packaging machinery where mechanical timing directly impacts product quality and throughput.

Application in Critical Infrastructure

In oil and gas upstream operations, the JX6-BASIS-8 is deployed in wellhead control panels and pipeline SCADA remote terminal units (RTUs) where ambient temperatures can swing from −20 °C in arctic fields to +50 °C in desert installations. Its passive bus design generates minimal self-heat, reducing the thermal load on the control enclosure and extending the service life of all installed modules.

In power generation and grid substations, the backplane supports protection relay interface modules and bay controller I/O cards that must maintain deterministic scan times during fault events. The EMC-hardened bus ensures that high-frequency transients from switching operations do not corrupt process data or trigger spurious outputs.

In mining and mineral processing, where conveyor drives, crushers, and ball mills generate continuous mechanical vibration and airborne conductive dust, the JX6-BASIS-8’s robust card-locking mechanism and sealed connector interface prevent intermittent contact failures — a leading cause of unplanned downtime in these environments. Similarly, in water and wastewater treatment facilities, the module’s resistance to condensation and chemical vapors makes it suitable for pump station control panels operating in partially enclosed, high-humidity structures.

In metallurgical and steel production plants, where induction furnaces and arc furnaces produce extreme electromagnetic fields, the shielded backplane bus maintains signal integrity for temperature control loops and casting speed regulation systems that directly govern product quality and worker safety.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the JETTER JX6-BASIS-8 datasheet. If a unit fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Contact [email protected] with your order number and a description of the fault to initiate a claim. Typical resolution time is 5–10 business days depending on logistics.

Q2: How is each unit tested before shipment?
Every JX6-BASIS-8 unit in our inventory undergoes a pre-shipment functional inspection that verifies bus connector integrity, slot alignment, and physical condition. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation. We do not ship units that show signs of physical damage, corrosion, or counterfeit markings. A quality inspection report is available upon request for critical infrastructure procurement.

Q3: Is the JX6-BASIS-8 compatible with all JX6 series modules, including newer firmware revisions?
The JX6-BASIS-8 passive backplane is hardware-compatible with all modules in the JETTER JX6 product family, including CPU, I/O, communication, and motion control cards across all firmware generations. Firmware compatibility between the CPU module and expansion cards is governed by the JETTER JX6 system software version, not the backplane hardware. We recommend consulting the JETTER JX6 system manual or contacting our technical team to confirm specific module pairing requirements for your application.

Q4: Can you guarantee long-term supply and support for discontinued or legacy JX6 components?
Yes. TOPNLMS specializes in maintaining stock of legacy and long-lifecycle industrial automation components, including the JX6 series, specifically to support customers with installed base systems that cannot be easily migrated to newer platforms. We maintain buffer stock of the JX6-BASIS-8 and related JX6 modules to support planned maintenance, emergency replacement, and system expansion projects. Customers with ongoing supply requirements are encouraged to discuss framework agreements to secure priority allocation.
