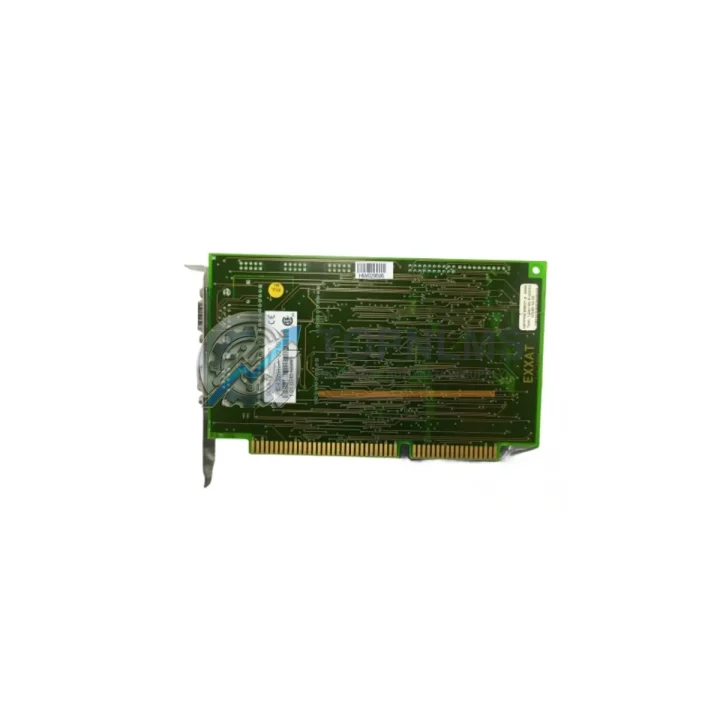

IXXAT IPC-I 320/ISA V2.10 Replacement Solution for IPC-I Series

Product Overview

IXXAT IPC-I 320/ISA V2.10 Replacement Solution for IPC-I Series: Smooth Transition & Legacy System Compatibility

The IXXAT IPC-I 320/ISA V2.10 is a high-performance CAN interface card designed for ISA bus industrial PCs, widely deployed in legacy automation architectures across automotive test benches, factory floor control systems, and distributed machine control networks. As production of this card has been discontinued, many facilities running older industrial PCs with ISA slots face an urgent need to source verified replacement units or plan a structured migration path to maintain system uptime and CAN network integrity.

At TOPNLMS, we maintain ready stock of the IXXAT IPC-I 320/ISA V2.10 to support your immediate replacement needs. Each unit is sourced from verified supply channels, fully tested prior to dispatch, and backed by a 12-month warranty. Whether you need a like-for-like swap to restore a downed system or are planning a phased migration away from ISA-based infrastructure, our team can support both scenarios with technical guidance and fast fulfillment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an ISA-based CAN interface architecture involves more than simply swapping the IPC-I 320/ISA V2.10 card. Depending on the age and configuration of your control cabinet, several adjacent components may require attention during the same maintenance window.

For systems where the host industrial PC still has available ISA slots, a direct replacement with a verified IPC-I 320/ISA V2.10 unit is the fastest path to restoring CAN network communication. However, for facilities planning a broader IPC modernization, the IXXAT USB-to-CAN V2 compact interface offers a practical bridge — it supports the same VCI driver stack and CAN 2.0A/B protocol, eliminating the ISA bus dependency while preserving compatibility with existing CANopen or DeviceNet network configurations.

In many legacy control cabinets, the CAN network connects to field devices such as servo drives, remote I/O nodes, and distributed sensor modules via CANopen. During a card replacement or IPC migration, it is advisable to inspect the CAN bus termination resistors and shielded twisted-pair cabling between nodes. Faulty termination is a common source of communication errors that can be mistakenly attributed to the interface card itself.

If your system architecture includes a Siemens S7-300 or S7-400 PLC communicating with CAN field devices through a gateway module, the replacement of the IPC-I 320/ISA V2.10 may also require reconfiguration of the CP 5611 or CP 5613 communication processor settings to re-establish the data exchange path. Similarly, systems using a Beckhoff CX series embedded controller with EtherCAT I/O terminals may need updated mapping tables if the CAN gateway address assignments change during the card swap.

For control cabinets that house both the IPC and associated power distribution, the Phoenix Contact QUINT power supply series is commonly used to provide stable 24VDC rail power to CAN field devices. Verifying that the power supply output remains within specification during the card replacement process helps prevent transient faults on the CAN bus during commissioning.

In applications where the IPC-I 320/ISA V2.10 interfaces with a Pilz PNOZmulti safety controller or a Murrelektronik fieldbus coupler, the node address and baud rate settings stored in the original card configuration must be documented before removal and replicated exactly on the replacement unit to avoid network initialization failures.

Signal isolation is another consideration in high-noise industrial environments. If the existing installation uses a Weidmüller or Phoenix Contact CAN signal isolator between the IPC card and the field bus trunk, these isolators should be retained and their isolation ratings verified against the new card’s electrical specifications.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the IPC-I 320/ISA V2.10?
Yes. The replacement unit uses the same DB9 CAN connector pinout. Your existing shielded CAN bus cable, termination resistors, and node wiring do not need to be modified.

Q: Will my existing VCI-based software work with the replacement card?
Yes, provided your host OS and VCI driver version are compatible. The IPC-I 320/ISA V2.10 uses IXXAT’s VCI (Virtual Communication Interface) driver stack. Confirm your driver version matches the card firmware before installation.

Q: What baud rates are supported?
The IPC-I 320/ISA V2.10 supports standard CAN baud rates from 10 kbit/s up to 1 Mbit/s, covering the full range used in CANopen and DeviceNet applications.

Q: My IPC no longer has ISA slots. What is the migration path?
For ISA-free industrial PCs, the IXXAT USB-to-CAN V2 or a PCIe-based CAN interface card provides a compatible upgrade path. The VCI driver stack is shared across the product family, minimizing software reconfiguration effort.

Q: How long does installation and commissioning typically take?
A like-for-like card swap in a prepared system typically takes 30–60 minutes, including driver reinstallation and CAN network verification. A full IPC migration with OS upgrade may require a planned maintenance window of 4–8 hours.

Q: Is the card compatible with DeviceNet in addition to CANopen?
Yes. The IPC-I 320/ISA V2.10 supports both CANopen and DeviceNet protocol stacks via the VCI interface, making it suitable for mixed-protocol CAN networks.

Warranty Assurance

Every IXXAT IPC-I 320/ISA V2.10 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each card undergoes functional testing to verify CAN channel operation, bus interface integrity, and driver compatibility. Units are shipped in anti-static packaging with full documentation.

In the event of a confirmed hardware fault within the warranty period, TOPNLMS provides replacement support with priority processing to minimize your system downtime. Our after-sales response team is reachable via email and phone to assist with technical verification, return authorization, and expedited replacement dispatch.

For procurement teams requiring documentation for incoming inspection, we can provide test reports and shipment records upon request. Bulk orders and long-term supply agreements for MRO (Maintenance, Repair & Operations) inventory are supported with lead time commitments and reserved stock arrangements.

We ship globally from our Xiamen warehouse, with standard export documentation including commercial invoice, packing list, and certificate of origin available for all international orders.
