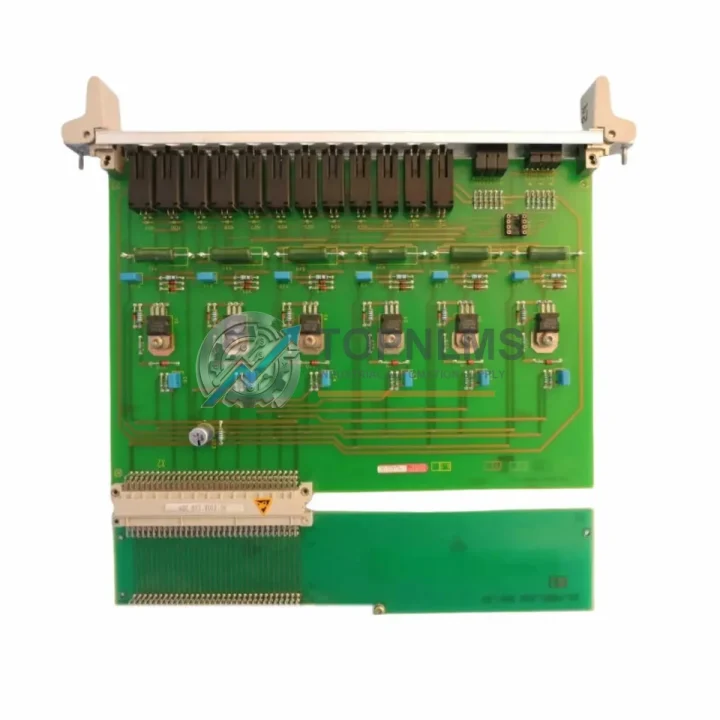

GE IS430SNUAH1A Ruggedized Analogue I/O Module for Harsh Environments

Product Overview

GE IS430SNUAH1A Ruggedized Analogue I/O Module for Harsh Environments

The GE IS430SNUAH1A is a high-integrity Universal Analogue I/O Module engineered for the GE Mark VI Turbine Control System — one of the most demanding distributed control architectures deployed across global critical infrastructure. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IS430SNUAH1A delivers the signal fidelity and channel isolation that safety-critical analogue loops demand.

In heavy industrial facilities — from gas turbine power plants and offshore platforms to petrochemical refineries and steel mills — analogue I/O integrity is non-negotiable. The IS430SNUAH1A provides multi-channel universal analogue input and output capability, accepting thermocouple, RTD, milliamp, and voltage signals without requiring separate signal conditioning hardware. This flexibility dramatically reduces panel wiring complexity and simplifies spare-parts inventory management for maintenance engineers responsible for keeping turbine control cabinets operational around the clock.

Within the Mark VI architecture, the IS430SNUAH1A interfaces directly with the GE IS200TBAAH1A terminal board, forming a tightly coupled signal acquisition layer that feeds the UCVEH and UCPEH controller boards with high-resolution process data. The module’s onboard signal processing compensates for cold-junction errors in thermocouple circuits and linearizes RTD readings, ensuring that temperature measurements in combustion chambers, exhaust stacks, and heat-recovery steam generators remain accurate even as ambient conditions inside the control enclosure shift. Paired with the GE IS200VSVOH1B servo driver and IS200TREGH1B regulation board, the IS430SNUAH1A forms a complete closed-loop control chain capable of governing fuel valves, inlet guide vanes, and cooling systems with millisecond-level response.

Electromagnetic compatibility is a persistent challenge in substations, motor control centers, and variable-frequency drive environments. The IS430SNUAH1A’s shielded signal paths and differential input architecture suppress common-mode noise introduced by nearby ABB ACS880 or Siemens SINAMICS S120 drives, preventing spurious trips and false alarms that can force unplanned shutdowns on continuous production lines. When installed alongside GE IS200EDIOH1A digital I/O modules and IS200EPCTG1A protection boards in a triple-redundant TMR configuration, the module contributes to a fault-tolerant control architecture that meets IEC 61511 SIL 2 requirements for process safety instrumented systems.

For facilities operating in classified hazardous areas — Zone 1 gas atmospheres or Class I Division 2 environments common in upstream oil and gas — the IS430SNUAH1A is typically installed in purged and pressurized enclosures or paired with certified Zener barriers and galvanic isolators to maintain intrinsic safety compliance. Its low power dissipation profile reduces thermal load inside sealed cabinets, extending the service life of adjacent components including the GE IS200PSYCH1A power supply module and backplane interconnects.

Replacement and lifecycle management are critical considerations for asset-intensive industries. The IS430SNUAH1A is a direct plug-in replacement for earlier Mark VI analogue I/O boards, requiring no firmware re-flashing or recalibration of the controller when swapping a failed unit during a planned outage window. TOPNLMS maintains verified stock of IS430SNUAH1A modules that have passed functional bench testing — including channel-by-channel signal injection, isolation resistance measurement, and communication handshake verification with a live Mark VI rack — before dispatch. Every unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS430SNUAH1A does not operate in isolation — it is one node in a tightly integrated control and protection architecture. In a typical Mark VI gas turbine control cabinet, it works alongside the GE IS200EDIOH1A digital I/O module to provide both analogue measurement and discrete contact monitoring for flame detectors, vibration probes, and speed pickups. The GE IS200TREGH1B regulation board processes the analogue setpoints generated by the IS430SNUAH1A to drive actuator commands, while the GE IS200VSVOH1B servo driver translates those commands into precise hydraulic valve positioning.

Power integrity for the entire I/O rack is maintained by the GE IS200PSYCH1A power supply module, which provides regulated 28 VDC to all I/O boards including the IS430SNUAH1A. Upstream, a Phoenix Contact QUINT-PS/1AC/24DC/20 DIN-rail power supply or equivalent industrial UPS ensures ride-through capability during grid disturbances. For communication redundancy, the IS430SNUAH1A’s IONet interface is backed by the GE IS200EPCTG1A protection board, which monitors I/O health and triggers safe-state outputs if a module fault is detected — a critical safeguard in continuous-process environments where an uncontrolled shutdown can cause equipment damage or personnel hazard.

In facilities that have integrated the Mark VI with a plant-wide DCS such as Emerson DeltaV or Honeywell Experion PKS, the IS430SNUAH1A’s analogue data is typically marshalled through GE IS200TBAAH1A terminal boards and forwarded via OPC-DA or Modbus TCP gateways, enabling unified process visualization without compromising the turbine control system’s deterministic scan cycle. Safety relay modules — such as the Pilz PNOZ X3 or Siemens 3SK1 series — are often wired in series with IS430SNUAH1A output channels to enforce hardware-level emergency stop logic independent of the software controller state.

Application in Critical Infrastructure

The IS430SNUAH1A has a proven deployment record across the most demanding sectors of global industrial infrastructure. In combined-cycle power generation, it monitors exhaust gas temperatures across multiple thermocouple zones on Frame 6B and Frame 7FA gas turbines, feeding real-time data to the Mark VI controller for combustion optimization and NOx emissions compliance. A single failed analogue I/O module in this context can force a turbine trip, costing operators tens of thousands of dollars per hour in lost generation revenue — making rapid spare availability and verified pre-tested replacements a procurement priority.

In upstream oil and gas applications — wellhead compression stations, FPSO vessels, and LNG liquefaction trains — the IS430SNUAH1A handles pressure transmitter and flow meter signals in environments where salt-laden air, H₂S exposure, and continuous mechanical vibration from reciprocating compressors challenge every electronic component. Its robust backplane connector and conformal-coated PCB construction resist corrosion and moisture ingress that would degrade unprotected boards within months.

For mining and mineral processing operations, the module is deployed in SAG mill drive control systems and conveyor protection panels, where coal dust, silica particulates, and high-voltage switching transients from large motor starters create a hostile electromagnetic environment. The IS430SNUAH1A’s differential signal architecture rejects the common-mode noise generated by these transients, maintaining measurement accuracy for load cells, torque sensors, and bearing temperature monitors that protect multi-million-dollar rotating assets.

In water and wastewater treatment facilities, the module monitors analogue signals from pH sensors, dissolved oxygen probes, and flow transmitters in pump stations and aeration basins — environments characterized by high humidity, chemical vapors, and 24/7 unattended operation. Its compatibility with the Mark VI’s redundant I/O architecture ensures that a single module failure does not interrupt process monitoring, with the controller automatically switching to a redundant channel while maintenance personnel schedule a planned replacement.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will provide a replacement unit after receiving the defective module for inspection. Warranty claims are processed within 5 business days of receipt. Contact [email protected] with your order number and a description of the fault to initiate a claim.

Q2: How is each IS430SNUAH1A tested before shipment?
Every unit undergoes a structured pre-shipment inspection protocol: (1) visual inspection for physical damage, corrosion, and connector integrity; (2) channel-by-channel signal injection testing across all analogue input types (thermocouple, RTD, mA, voltage); (3) isolation resistance measurement between signal channels and chassis ground; and (4) live communication handshake verification with a GE Mark VI test rack to confirm backplane recognition and I/O data exchange. Units that fail any stage are quarantined and not dispatched.

Q3: Is the IS430SNUAH1A compatible with both TMR and Simplex Mark VI configurations?
Yes. The IS430SNUAH1A is compatible with both Triple Modular Redundant (TMR) and Simplex Mark VI rack configurations. In TMR systems, three IS430SNUAH1A modules operate in parallel with voted outputs, providing SIL 2-capable fault tolerance. In Simplex configurations, the module operates as a single-channel I/O node. No hardware modification is required — the rack configuration is managed at the controller level. Always verify the specific Mark VI revision (e.g., Mark VIe) compatibility with your system integrator before installation.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance programs?
Yes. TOPNLMS specializes in lifecycle support for legacy and current-generation GE Mark VI components. We maintain ongoing stock of IS430SNUAH1A and related Mark VI I/O boards to support planned maintenance outages, emergency replacements, and multi-year spare-parts agreements. For volume procurement or scheduled delivery programs, contact our technical sales team at [email protected] or +86 18359293191 to discuss pricing, lead times, and consignment stock arrangements.
