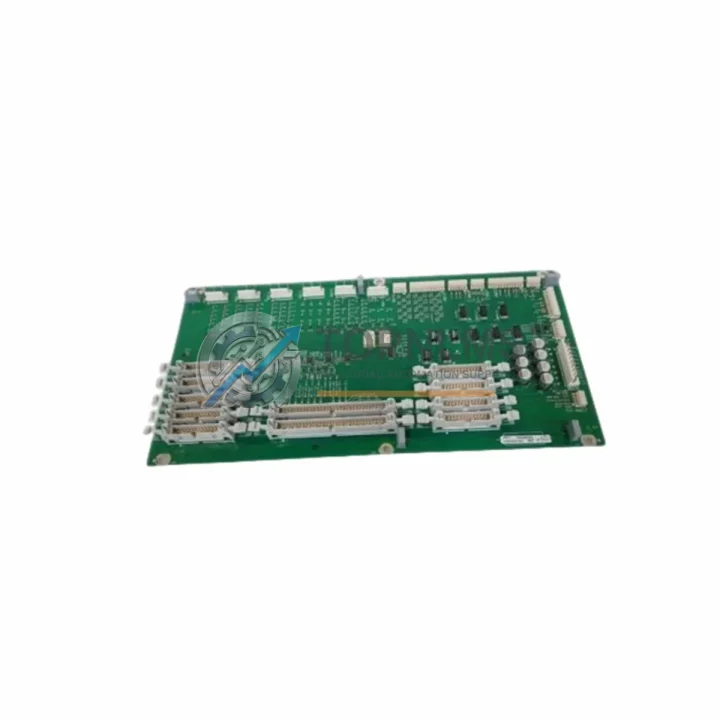

INPUT 3402062000 640-34020619XD-1FA: Seamless Replacement & Upgrade for 640 Series PLC Systems

Migrating away from a legacy or discontinued digital input module is one of the most critical—and often most disruptive—steps in any industrial control system modernization project. The INPUT 3402062000 / 640-34020619XD-1FA digital input PLC module is engineered to deliver a smooth, low-risk transition for facilities currently operating aging 640 Series control architectures. Whether your existing system relies on the 640-34020619XD-2FA variant or an earlier-generation input card from the same rack family, this module is designed to restore full I/O functionality with minimal rewiring, no PLC program restructuring, and no rack replacement.

Industrial plants running continuous processes—petrochemical, power generation, water treatment, or discrete manufacturing—cannot afford extended downtime during a module swap. The 3402062000 addresses this directly: its terminal block pinout mirrors the legacy 640 Series input card layout, allowing field wiring to be reconnected point-for-point without re-labeling or re-routing cable bundles. Engineers familiar with the original 640-34020619XD-1FA installation will find the physical form factor, DIN rail mounting footprint, and backplane connector geometry unchanged, making it a true drop-in replacement within the existing control cabinet.

On the software side, the module’s channel addressing and I/O mapping remain consistent with the 640 Series rack configuration. PLC programs written for the original input card—whether using ladder logic, function block diagrams, or structured text—do not require modification. The module registers identically on the backplane, preserving all existing tag assignments, force tables, and diagnostic routines. This is particularly valuable in facilities where the original program documentation is incomplete or where re-commissioning a modified program would require a full functional safety review.

Communication protocol compatibility is maintained across the board. The 3402062000 operates within the same backplane communication architecture as the rest of the 640 Series rack, ensuring seamless data exchange with the system’s CPU module, co-processor cards, and any installed 640 Series communication modules handling PROFIBUS, Modbus RTU, or proprietary fieldbus protocols. No gateway reconfiguration or protocol bridge is required.

Power supply compatibility is equally straightforward. The module draws from the rack’s existing 24 VDC backplane power rail, eliminating the need to resize or replace the 640 Series power supply module during the upgrade. Field-side input circuits accept the standard 24 VDC discrete signal range, compatible with existing proximity switches, limit switches, pushbuttons, and relay contacts already wired into the system.

For facilities undertaking a phased migration—replacing individual cards rather than performing a full system cutover—the 3402062000 can coexist in the same rack alongside legacy 640 Series analog input modules, output modules, and specialty function cards. This modularity supports a controlled, budget-managed upgrade path that minimizes capital expenditure while progressively retiring end-of-life hardware.

Procurement teams will note that the 3402062000 is stocked and available for immediate shipment from our Xiamen warehouse. Lead times for discontinued OEM modules from the original manufacturer can stretch to 16–26 weeks or longer; our inventory eliminates that risk. Each unit undergoes pre-shipment functional testing, and all modules are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 640 Series migration rarely involves a single module in isolation. In practice, the digital input card replacement is one node in a broader system refresh that typically encompasses several interdependent components. When the 640-34020619XD-1FA is installed as a replacement, field engineers frequently address adjacent hardware at the same time to maximize the value of the planned maintenance window.

The rack’s 640 Series digital output modules are often at a similar end-of-life stage and benefit from concurrent replacement, ensuring that both input and output channels are restored to full diagnostic capability simultaneously. Similarly, if the system includes 640 Series analog input modules handling 4–20 mA process signals from transmitters, these should be inspected and replaced as part of the same outage to avoid a second unplanned shutdown.

Communication infrastructure is another common upgrade target. Facilities running older 640 Series PROFIBUS DP communication modules or serial Modbus RTU interface cards may find that replacing the input module is an opportune moment to upgrade the fieldbus interface as well, particularly if the existing communication card is exhibiting intermittent faults or has reached its firmware support end-of-life. Pairing the new input module with a refreshed communication card ensures the entire data path—from field device to SCADA—is operating on supported, warrantied hardware.

On the power distribution side, aging 640 Series rack power supply modules that have been in continuous service for 10 or more years may no longer deliver stable voltage regulation under full rack load. Replacing the power supply in the same maintenance window as the input module eliminates a common root cause of intermittent I/O faults that are otherwise difficult to diagnose.

For facilities that use signal isolators or signal conditioners between field devices and the PLC input card—common in environments with long cable runs, high electrical noise, or intrinsically safe zone requirements—the module swap is also a good time to verify that the isolator output voltage and current specifications remain within the new module’s input threshold range. In most cases they are, but confirmation during commissioning prevents nuisance trips after restart.

Where the 640 Series rack interfaces with an HMI panel—whether a legacy operator panel or a modern touch-screen HMI running on an Ethernet or serial link—no HMI configuration changes are required, since the module’s I/O tags and addresses are preserved. However, if the HMI itself is also approaching end-of-life, coordinating its replacement with the input module swap reduces total system downtime across the project lifecycle.

Finally, facilities that use programming cables or USB-to-serial adapters for on-site PLC diagnostics should ensure their programming tools are compatible with the current CPU firmware version before beginning the swap. Having the programming cable and laptop on-site during the replacement allows immediate online verification of input channel status after the module is seated and powered.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the 640-34020619XD-2FA with the 3402062000?
A: No. The terminal block pinout is identical. Field wiring can be transferred point-for-point without re-labeling or re-routing. Confirm terminal torque specifications per your site’s maintenance procedure before re-energizing.

Q: Will my existing PLC program need to be modified?
A: No program modification is required. The 3402062000 registers on the backplane with the same I/O mapping as the original module. All existing tag assignments, rungs, and force tables remain valid.

Q: Is the module compatible with PROFIBUS DP and Modbus RTU communication architectures?
A: Yes. The module communicates via the 640 Series backplane bus, which is protocol-agnostic at the module level. The system’s communication module handles all fieldbus protocol translation, and no changes to that configuration are required.

Q: Will the replacement module fit in the existing rack slot without mechanical modification?
A: Yes. The 3402062000 shares the same physical form factor and backplane connector as the 640 Series rack. No rack modification, spacer, or adapter plate is required.

Q: What is the recommended procedure for commissioning the replacement module?
A: Power down the rack, remove the legacy module, seat the 3402062000 in the same slot, restore power, and verify input channel status online via the programming terminal. Force-test each input channel against the corresponding field device before returning the system to automatic mode.

Q: Can this module be used as a spare/backup unit alongside the original 640-34020619XD-2FA?
A: Yes. The module is fully interchangeable and can be held as a cold spare. Store in original anti-static packaging in a dry, temperature-controlled environment.

Warranty Assurance

Every INPUT 3402062000 / 640-34020619XD-1FA module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, component failures, and operational faults arising under normal industrial service conditions as defined in the module’s technical specification.

Prior to shipment, each unit undergoes a structured pre-delivery inspection that includes visual inspection, backplane connector integrity verification, and functional input channel testing. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 5 business days of claim confirmation. Defective units are returned via prepaid logistics at TOPNLMS’s expense. Our after-sales team responds to warranty inquiries within 24 business hours and provides technical support throughout the replacement process to minimize site downtime.

For procurement teams requiring documentation, we can supply a Certificate of Conformance, packing list, and commercial invoice with each shipment. Bulk orders and standing purchase agreements are supported with priority allocation from our Xiamen inventory.

Contact our technical sales team to confirm compatibility with your specific rack configuration, request a quotation, or arrange expedited shipment for urgent replacement requirements.
