IMADA DTX2-40B Original Industrial Spare DTX2 Compatible

Product Overview

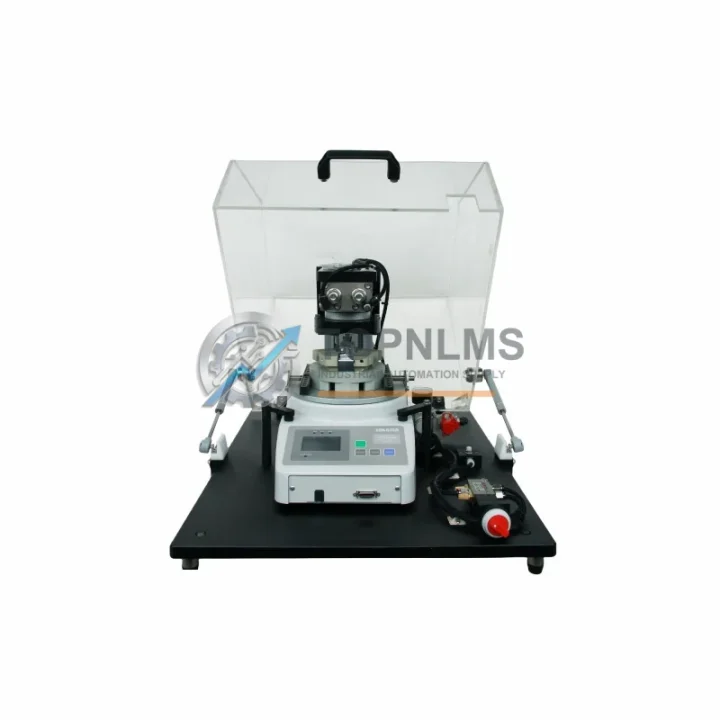

IMADA DTX2-40B Original Industrial Spare: System Stability & Torque Verification Reliability

The IMADA DTX2-40B is a precision bidirectional digital cap torque verification gauge from IMADA’s industry-trusted DTX2 Series. With a full-scale measurement range of 500 N·cm, this instrument is engineered for demanding quality control environments in pharmaceutical packaging, food & beverage production, cosmetics manufacturing, and general industrial assembly lines. As an original spare part sourced directly from authorized supply channels, the DTX2-40B ensures measurement traceability, calibration integrity, and long-term system compatibility — critical factors for facilities operating under ISO 9001, GMP, or HACCP compliance frameworks.

Maintaining a verified torque measurement instrument in your QC station is not optional — it is the backbone of cap-seal integrity, product safety, and regulatory compliance. When the DTX2-40B is part of your preventive maintenance inventory, your production line avoids unplanned downtime caused by failed torque verification, rejected batches, or instrument drift. Stocking this original spare ensures your QC workflow continues without interruption, even during peak production cycles or scheduled calibration rotations.

Critical Technical Specs

Preventive Maintenance Strategy

A torque verification gauge like the DTX2-40B does not operate in isolation — it is one node in a broader quality assurance and production control ecosystem. When scheduling preventive maintenance or planning a QC station overhaul, experienced maintenance engineers know that replacing or verifying one instrument often reveals adjacent components that are approaching end-of-life or require recalibration.

During a DTX2-40B inspection or replacement cycle, it is best practice to simultaneously audit the IMADA torque stand or fixture adapter that holds the gauge in position — worn fixtures introduce measurement error that no software correction can compensate for. If your facility uses an IMADA ZTA or ZTS series force gauge alongside the DTX2-40B for combined torque-and-force QC workflows, verify that both instruments share a synchronized calibration schedule to maintain cross-measurement traceability.

For lines using automated cap-tightening equipment, the DTX2-40B is typically paired with a programmable torque controller or servo driver that governs the tightening torque applied by the capping head. Inspecting the controller’s torque setpoint parameters and comparing them against DTX2-40B readings is a standard verification step — if drift is detected, both the controller parameters and the gauge should be reviewed together. Additionally, the USB or RS-232C data cable connecting the DTX2-40B to your data logging PC or SCADA system should be inspected for connector wear, as intermittent data loss is a common but overlooked failure mode in high-vibration production environments.

Facilities running IMADA DS2 or ZTA series digital force gauges in adjacent test stations benefit from consolidating spare instrument procurement — ordering the DTX2-40B alongside a DS2 series spare reduces per-shipment logistics costs and ensures both stations are covered under a single 12-month warranty cycle. If your QC station uses a dedicated torque measurement software package (such as IMADA’s own ForceRecorder or a third-party SPC system), confirm software driver compatibility with the DTX2-40B’s USB output before deployment.

For facilities with older DTX or HTG series cap torque gauges still in service, the DTX2-40B represents a direct upgrade path — it maintains compatibility with standard IMADA cap adapter sets while adding bidirectional measurement and digital peak-hold functionality. Stocking one DTX2-40B as a hot-swap spare alongside your primary instrument eliminates the 2–4 week lead time risk associated with emergency procurement, keeping your QC line operational during calibration rotations or unexpected instrument failure.

When conducting a full QC station audit, also review the condition of your calibration weight set or reference torque standard used to verify the DTX2-40B’s accuracy. Worn or uncertified reference standards are a leading cause of undetected gauge drift. Pair this with a review of your cap adapter set — adapters sized for 28mm, 38mm, and 48mm closures should be inspected for wear grooves that can introduce slip error during measurement.

Strategic Replacement Solutions

The IMADA DTX2-40B is the recommended replacement for legacy IMADA DTX-40B and HTG-40B cap torque gauges. Facilities still operating first-generation DTX series instruments face increasing risk of discontinued spare parts, unavailable repair services, and calibration certificate lapses — all of which create compliance exposure in regulated industries. The DTX2-40B resolves these risks by providing a fully supported, currently manufactured instrument with active IMADA factory support, available calibration certificates, and a documented upgrade path.

The transition from an older DTX or HTG gauge to the DTX2-40B requires no mechanical modification to existing torque stands or fixture mounts — the physical form factor and adapter interface are backward compatible. The digital display and USB data output of the DTX2-40B also enable direct integration with modern SPC and MES systems, replacing manual paper-based torque logging with automated digital records. This upgrade not only reduces downtime risk but also improves audit readiness and data integrity for ISO and GMP compliance reviews.

For multi-line facilities managing 5 or more capping stations, establishing a centralized spare instrument pool with 1–2 DTX2-40B units designated as hot-swap replacements is a proven strategy for eliminating QC-related line stoppages. Combined with a structured annual calibration rotation, this approach reduces the total cost of instrument ownership while maintaining continuous measurement capability across all production lines.

Support FAQ

Q1: Is the DTX2-40B covered by a warranty, and what does it include?
Yes. Every DTX2-40B unit shipped from TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing and is shipped with documentation confirming operational status.

Q2: How do I verify compatibility with my existing IMADA torque stand or fixture?
The DTX2-40B is compatible with standard IMADA DTX2 Series torque stands and the full range of IMADA cap adapter sets. If you are replacing a first-generation DTX-40B or HTG-40B, the mechanical interface is backward compatible. For non-standard fixtures or third-party stands, please contact us with your fixture model number for a compatibility confirmation before ordering.

Q3: What is the recommended spare parts lifecycle strategy for the DTX2-40B?
IMO best practice for regulated production environments is to maintain at least one hot-swap spare DTX2-40B per 3–5 active capping stations. Annual calibration is recommended, with a mid-year functional check using a certified reference torque standard. Plan procurement 60–90 days ahead of calibration due dates to avoid lead-time gaps.

Q4: Can the DTX2-40B output data to a PC or SCADA system for SPC logging?
Yes. The DTX2-40B is equipped with USB and RS-232C output interfaces, enabling real-time or peak-hold data transmission to a connected PC, data logger, or SCADA system. Compatible with IMADA ForceRecorder software and most third-party SPC data acquisition systems that support standard COM port or USB HID protocols.
