ICS Triplex T9451 Replacement/Upgrade Solution for T9xxx

Product Overview

ICS Triplex T9451 Replacement/Upgrade Solution for T9xxx: Smooth Transition from Legacy TMR Systems

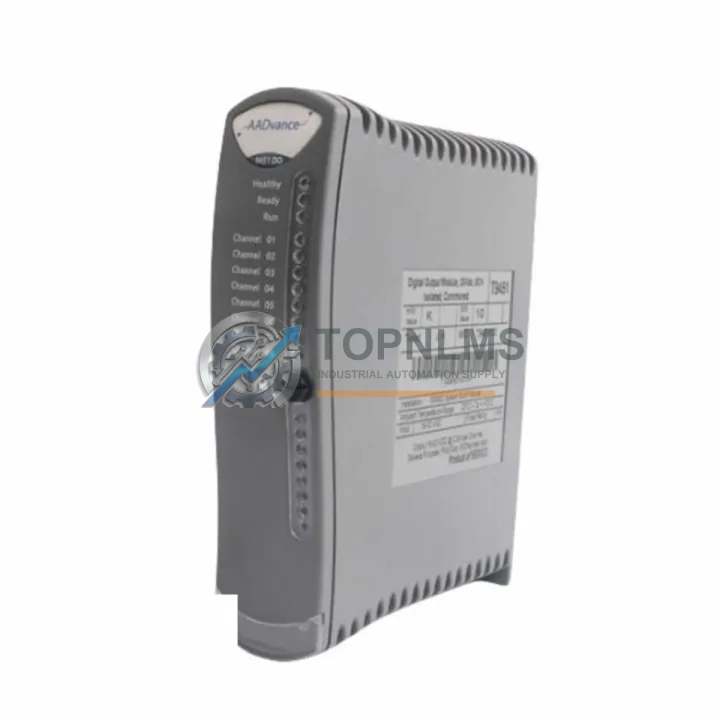

The ICS Triplex T9451 is a Triple Modular Redundancy (TMR) Digital Output Module designed for safety-critical process control environments. As aging T9xxx Series installations approach end-of-life or face discontinued spare-part availability, plant engineers and procurement teams are increasingly seeking a reliable, drop-in replacement strategy that minimizes engineering rework, preserves existing wiring infrastructure, and maintains SIL-rated system integrity. This page provides a comprehensive migration guide for facilities transitioning from legacy ICS Triplex T9xxx-based control architectures to the T9451 as a direct replacement or interim upgrade module.

The T9451 module operates within the ICS Triplex Trusted™ TMR platform, sharing the same backplane form factor and rack-mount dimensions as other T9xxx Series modules such as the T9431 Digital Input Module, T9110 Analog Input Module, and T9120 Analog Output Module. This physical compatibility means that in most retrofit scenarios, the T9451 can be installed into an existing Trusted™ chassis without mechanical modification, significantly reducing installation time and the risk of errors during a live-system changeover.

From a wiring perspective, the T9451 uses the same field termination assembly (FTA) connector pinout as its predecessor modules in the T9xxx family. Engineers migrating from an older T9450 or T9452 variant will find that existing field cables, marshalling panels, and junction box wiring can typically be reused without re-termination. This is a critical advantage in brownfield upgrades where rewiring costs and schedule risk are primary concerns. The module’s 24 VDC digital output channels are individually fused and diagnostically monitored, maintaining compatibility with existing solenoid valve banks, motor starters, and relay-driven actuators already wired to the legacy system.

Communication and system architecture compatibility is another key consideration. The T9451 integrates seamlessly with the Trusted™ TMR controller backplane, communicating over the proprietary Trusted™ inter-module bus. Facilities running ICS Triplex Trusted™ controllers such as the T8110 or T8120 processor modules will find that the T9451 is recognized natively by the Trusted™ ToolSuite engineering workstation software, requiring only a module configuration update rather than a full program rewrite. For sites using Modbus RTU or Modbus TCP/IP as the supervisory communication protocol to a DCS or SCADA host, the existing communication mapping remains valid, as the T9451 output channel addressing follows the same register structure as legacy T9xxx output modules.

Power supply compatibility is maintained through the standard Trusted™ backplane power distribution architecture. The T9451 draws power from the chassis power supply modules — typically the T9200 or T9210 Power Supply Module — and does not require a dedicated external supply. Sites with existing redundant power supply configurations can retain their current power architecture without modification, preserving the N+1 or 1oo2 power redundancy that is standard in safety-instrumented system (SIS) installations.

For facilities managing a phased migration — replacing modules one at a time rather than performing a full system cutover — the T9451 supports hot-swap insertion in a powered Trusted™ chassis. This capability is essential for maintaining process continuity in continuous-operation plants such as oil refineries, chemical processing facilities, LNG terminals, and power generation stations where unplanned shutdowns carry significant financial and safety consequences. The module’s built-in self-test (BIST) routines run automatically upon insertion, verifying output driver integrity before the module is brought online.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful T9451 migration rarely involves a single module in isolation. In practice, plant engineers undertaking a Trusted™ TMR system upgrade or emergency spare replacement will typically need to address several adjacent components to ensure a complete and reliable transition.

For sites replacing multiple output modules simultaneously, the T9431 TMR Digital Input Module is frequently ordered alongside the T9451 to refresh both the input and output layers of the safety loop in a single maintenance window. Similarly, facilities upgrading analog measurement points will often include the T9110 Analog Input Module or T9120 Analog Output Module to standardize the module generation across the chassis and eliminate mixed-vintage hardware risks.

The chassis backplane and rack infrastructure also warrant attention during a module migration. If the existing Trusted™ chassis is an older T9100 or T9200 Series rack, engineers should verify that the backplane firmware is compatible with the T9451 revision level. In some cases, a T9200 Power Supply Module replacement is recommended concurrently to ensure stable power delivery to the refreshed output module population, particularly in high-channel-count installations where inrush current during module initialization can stress aging power supplies.

Communication infrastructure upgrades are another common parallel workstream. Sites transitioning from serial Modbus RTU to Ethernet-based Modbus TCP/IP may require a communication gateway or protocol converter module to bridge the legacy field bus to the plant’s modern DCS network. Additionally, the Trusted™ ToolSuite programming cable and USB-to-serial adapter are essential tools for on-site engineers performing the module configuration update, and having a spare programming cable on hand is strongly recommended to avoid delays during commissioning.

For installations where the T9451 is being deployed as part of a broader control system modernization — for example, migrating from a legacy Triconex or Hima TMR platform to ICS Triplex Trusted™ — signal isolators and terminal block adapters may be required to interface existing field wiring with the Trusted™ FTA connector format. A DIN-rail-mounted signal isolator can bridge the voltage and impedance differences between old and new termination standards without requiring field cable replacement.

Finally, for sites managing a multi-phase migration over an extended outage schedule, maintaining a documented spare-parts inventory that includes the T9451, T9431, T9110, and T9200 modules ensures that any unplanned failures during the transition period can be addressed immediately from on-site stock rather than waiting for emergency procurement.

Retrofit Guidance FAQ

Q: Can I install the T9451 into an existing Trusted™ chassis without modifying the backplane?
A: Yes. The T9451 uses the standard Trusted™ TMR backplane interface and is physically compatible with all T9xxx Series chassis slots. No backplane modification is required.

Q: Do I need to rewrite my safety application program after replacing the module?
A: No full rewrite is necessary. The T9451 is recognized by Trusted™ ToolSuite as a compatible replacement. A module configuration update within the existing project file is typically sufficient. Always perform a full functional test after any module change in a safety-instrumented system.

Q: Is the field wiring compatible with the T9451’s FTA connector?
A: In most cases, yes. The T9451 uses the standard Trusted™ FTA connector pinout. Existing field cables terminated to a legacy T9450 or T9452 FTA can typically be reconnected to the T9451 FTA without re-termination. Verify against the specific FTA part number in your as-built documentation.

Q: What communication protocols does the T9451 support for SCADA/DCS integration?
A: The T9451 communicates over the Trusted™ TMR backplane bus to the controller, which then interfaces with the supervisory system via Modbus RTU or Modbus TCP/IP. Existing SCADA/DCS register mappings remain valid after module replacement.

Q: Can the T9451 be replaced while the system is powered and the process is running?
A: The Trusted™ TMR architecture supports hot-swap module replacement in a powered chassis. However, always follow your site’s management-of-change (MOC) and permit-to-work procedures before performing any live module swap in a safety-instrumented system.

Q: What physical space does the T9451 require in the control cabinet?
A: The T9451 occupies a single slot in a standard Trusted™ TMR chassis. No additional panel space or DIN-rail mounting is required beyond the existing chassis footprint.

Q: How do I verify the T9451 is functioning correctly after installation?
A: The module runs built-in self-test (BIST) routines automatically upon insertion. Status LEDs on the module front panel indicate pass/fail for each of the three TMR legs. Full channel-level diagnostics are accessible via Trusted™ ToolSuite.

Warranty Assurance

Every T9451 module shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional power-on testing. Modules that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment and three business days for resolution proposal. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen, China is supported via DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Typical transit time to major industrial hubs in Europe, the Middle East, and Southeast Asia is 3–7 business days by air.

To place an order, request a quotation, or discuss a multi-module migration procurement plan, contact our technical sales team directly.
