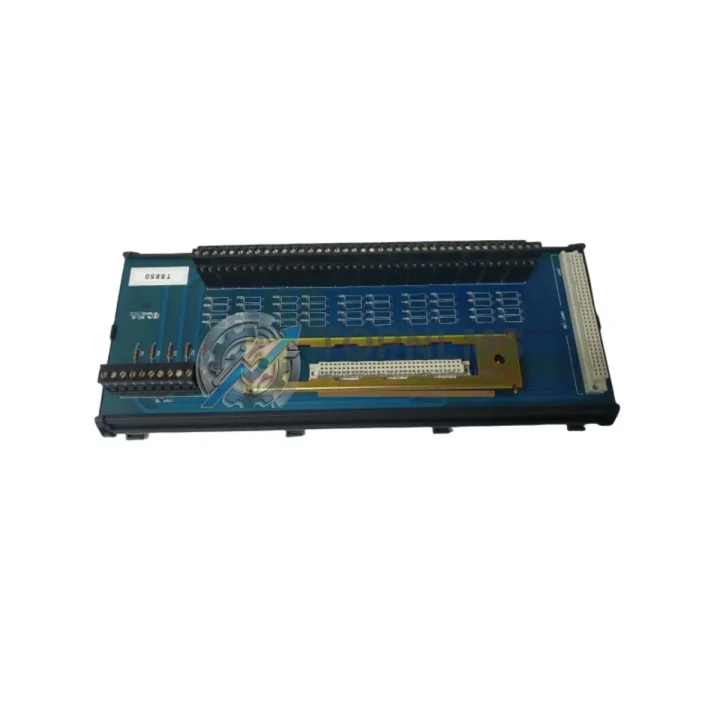

ICS Triplex T8850 Replacement Solution for Trusted TMR

Product Overview

ICS Triplex T8850 Replacement Solution for Trusted TMR: Seamless SIL 3 Safety System Upgrade

The ICS Triplex T8850 is a Triple Modular Redundancy (TMR) Digital Input Module designed for use within the Trusted safety system platform — one of the most widely deployed SIL 3-rated safety instrumented systems in the oil & gas, petrochemical, power generation, and offshore industries. As aging Trusted TMR installations approach end-of-life or face obsolescence challenges, the T8850 serves as a direct replacement or upgrade path for facilities seeking to maintain SIL 3 integrity without undertaking a full system overhaul.

The Trusted TMR architecture is built around fault-tolerant, triple-redundant processing. The T8850 Digital Input Module slots directly into the Trusted chassis backplane, accepting field-level discrete signals from process instrumentation such as pressure switches, level switches, emergency shutdown (ESD) pushbuttons, and valve position feedback sensors. Its TMR voting logic (2-out-of-3) ensures that a single channel failure does not compromise the safety function, making it a cornerstone component in Safety Instrumented Functions (SIFs) requiring the highest reliability.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating or maintaining a Trusted TMR safety system involves more than swapping a single module. A complete and reliable upgrade typically requires coordinating several interdependent components within the same chassis and control cabinet architecture.

The T8850 operates within the Trusted T8000 series chassis, which houses the TMR processor modules, power supply modules, and I/O cards in a unified backplane. When replacing the T8850, engineers should verify the firmware revision of the Trusted T8110 TMR Controller Module to ensure backward compatibility with the digital input configuration. In many retrofit projects, the T8100 Trusted TMR Processor is simultaneously upgraded to extend the operational lifecycle of the entire safety loop.

On the field wiring side, the T8850 interfaces with the marshalling cabinet through dedicated terminal assemblies. The T8830 Trusted TMR Analog Input Module is frequently replaced alongside the T8850 in mixed I/O upgrade projects, particularly in ESD systems where both discrete and analog process variables are monitored within the same SIF. Similarly, the T8851 TMR Digital Input Module (an adjacent variant) may be evaluated as an alternative if channel count or input voltage specifications differ from the installed base.

For facilities also upgrading their output-side safety functions, the T8890 Trusted TMR Digital Output Module and T8431 Trusted TMR Relay Output Module are common companion replacements. These modules share the same chassis backplane and are often procured together to minimize future maintenance windows.

Communication between the Trusted TMR system and the plant DCS or SCADA layer is typically handled via the T8910 Trusted TMR Communication Module, which supports Modbus RTU, PROFIBUS DP, and other industrial protocols. Ensuring this module is current is critical when integrating a replaced T8850 into a modernized control architecture.

Finally, for field engineers performing on-site commissioning and diagnostics, the Trusted System Configuration Tool (SCT) programming software and the associated Trusted programming cable are essential for verifying channel mapping, input filtering parameters, and SIL validation reports after module replacement.

Retrofit Guidance FAQ

Q: Can the T8850 be hot-swapped without shutting down the Trusted TMR system?
A: In most Trusted TMR installations, the architecture supports online module replacement (hot-swap) due to its triple-redundant design. The remaining two channels maintain the safety function while the faulty module is replaced. Always consult the site-specific Safety Requirements Specification (SRS) and obtain a Management of Change (MOC) approval before performing any live module swap.

Q: Is the field wiring compatible with the replacement T8850?
A: Yes. The T8850 uses the standard Trusted module connector and backplane interface. Existing field wiring routed through the marshalling cabinet and terminal blocks does not need to be modified. Verify terminal torque specifications and inspect for any corroded or loose connections during the replacement procedure.

Q: Does the T8850 require re-programming after replacement?
A: No application logic re-programming is required if the replacement module is the same hardware revision. The Trusted TMR controller retains the application program in its non-volatile memory. However, a functional test of all associated SIFs is strongly recommended post-replacement to confirm correct channel mapping and voting behavior.

Q: What communication protocols does the T8850 support?
A: The T8850 communicates exclusively over the Trusted TMR proprietary backplane bus. External protocol communication (Modbus, PROFIBUS, etc.) is managed by the dedicated communication module within the same chassis. No additional protocol configuration is needed for the DI module itself.

Q: What are the physical space requirements for installation?
A: The T8850 occupies a standard Trusted module slot within the T8000 series chassis. No additional panel space or DIN rail mounting is required. Confirm the target slot is designated for a digital input module in the chassis configuration documentation before insertion.

Q: How do I verify the T8850 is functioning correctly after installation?
A: Use the Trusted System Configuration Tool (SCT) to perform a channel-by-channel diagnostic check. Confirm that all 32 DI channels report correct status, that the TMR voting logic is active across all three redundant channels, and that no fault codes are present in the system event log.

Warranty Assurance

Every ICS Triplex T8850 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our quality assurance process includes pre-shipment functional testing, visual inspection for physical damage, and verification of firmware/hardware revision markings. Each unit is individually packaged with ESD-protective materials to prevent damage during international transit.

In the event of a warranty claim, TOPNLMS provides a rapid replacement dispatch process. Our technical support team responds to warranty inquiries within 24 business hours. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your system downtime. We maintain a dedicated inventory buffer of critical Trusted TMR modules specifically to support emergency replacement scenarios.

For procurement teams, we provide full documentation upon request: test reports, shipment photos, packing lists, and commercial invoices. We support T/T bank transfer, and can accommodate standard B2B purchase order workflows for approved accounts.

Contact our team for lead time confirmation, volume pricing, and technical pre-sales consultation.
