ICS Triplex T8461 Replacement for TMR Series DO Module

Product Overview

ICS Triplex T8461 Replacement for TMR Series DO Module: Smooth Transition & Legacy System Compatibility

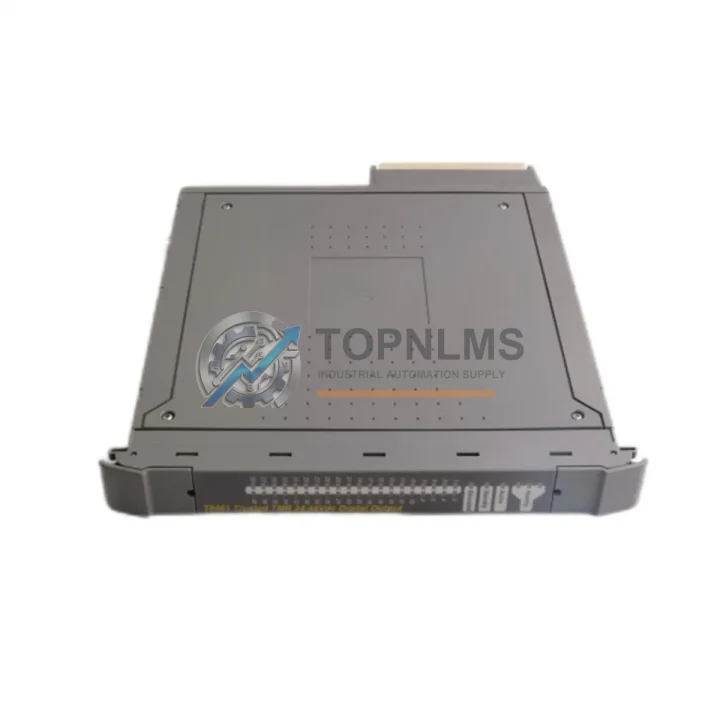

The ICS Triplex T8461 is a 24/48V DC Digital Output Module designed for the Trusted™ TMR (Triple Modular Redundancy) safety control platform. For facilities operating legacy Trusted™ controllers — including systems built around the T8110 Trusted™ Controller, T8151 Trusted™ Processor, or earlier T8100-series chassis — the T8461 represents a proven, field-validated upgrade path that preserves existing wiring infrastructure, rack geometry, and safety logic without requiring a full system redesign.

When a T8461 module reaches end-of-life or is flagged as discontinued in your spare-parts inventory, the primary concern for control engineers is minimizing unplanned downtime. This module slots directly into the standard Trusted™ I/O chassis backplane, maintaining the same 32-channel digital output configuration and the same 24V DC / 48V DC dual-voltage compatibility that field wiring was originally commissioned for. Terminal block assignments remain consistent with earlier DO module revisions, meaning no rewiring of field cables, junction boxes, or marshalling panels is required during a like-for-like swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful T8461 migration rarely involves a single module in isolation. In practice, control engineers upgrading a Trusted™ TMR system will simultaneously audit adjacent components to ensure the entire I/O subsystem remains coherent. The T8461 Digital Output Module typically operates alongside the T8431 Trusted™ Digital Input Module, which handles field sensor signals feeding into the same safety logic loop. Where analog process variables are involved, the T8451 Trusted™ Analog Input Module and T8481 Trusted™ Analog Output Module are common co-residents in the same I/O chassis, and their revision compatibility should be verified against the T8461 firmware baseline during any planned outage window.

Power integrity is equally critical in TMR architectures. The T8800 Trusted™ Power Supply Module provides the redundant 24V DC rail that the T8461’s output drivers depend on; if the power supply is approaching its own service interval, replacing it concurrently with the DO module eliminates a second maintenance window. Communication between the I/O chassis and the main controller travels through the T8150 Trusted™ Communication Module, and its firmware version must be confirmed compatible before commissioning the replacement T8461.

For sites migrating from an older, non-TMR PLC platform — such as a legacy Modicon Quantum rack or a Siemens S7-400H system — to the Trusted™ architecture, the transition also involves re-mapping signal lists and updating the Trusted™ ToolSuite project database. In these cross-platform migrations, signal isolators and marshalling components such as MTL5000-series Zener barriers or equivalent galvanic isolators are often retained in the field junction boxes, as they remain electrically compatible with the T8461’s 24V DC sourcing outputs. The T8110 Trusted™ Controller Baseplate and associated T8120 Trusted™ I/O Baseplate define the physical rack envelope; no mechanical modification is needed when inserting a T8461 into an existing populated chassis.

Where HMI visibility of the upgraded DO channels is required, existing Wonderware System Platform or Yokogawa CENTUM VP OPC DA/UA server connections continue to function without tag remapping, since the Trusted™ internal bus presents the same data object model regardless of the physical module revision installed.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when replacing with the T8461?
No. The T8461 uses the same terminal block pinout as previous TMR DO module revisions. Field cables, cable trays, and marshalling panels remain untouched.

Q: Is the T8461 compatible with my existing Trusted™ ToolSuite project?
Yes. The module is recognized by Trusted™ ToolSuite without requiring a project re-download in most revision combinations. Confirm the ToolSuite version against the T8461 release notes supplied with the unit.

Q: Can the T8461 be hot-swapped in a live TMR system?
The Trusted™ TMR architecture supports online module replacement under the TMR voting logic, allowing the remaining two legs to maintain safe output states during the swap. Always follow your site’s Management of Change (MOC) procedure before performing any live module exchange.

Q: What communication protocols does the T8461 support?
The T8461 communicates exclusively over the Trusted™ proprietary internal backplane bus. External fieldbus protocols (PROFIBUS, Modbus, HART) are handled at the controller or communication module level and are unaffected by a DO module replacement.

Q: How much physical space does the T8461 require?
The T8461 occupies a single standard Trusted™ I/O chassis slot — identical to the module it replaces. No chassis expansion or additional DIN rail space is needed.

Q: What if my system uses 48V DC field devices?
The T8461 supports both 24V DC and 48V DC output configurations. Verify the field device voltage requirement against the module’s output configuration jumper settings documented in the T8461 hardware manual.

Warranty Assurance

Every ICS Triplex T8461 module supplied by TOPNLMS is covered by a 12-month warranty from the confirmed shipment date. Prior to dispatch, each unit undergoes functional verification including backplane interface continuity checks, output channel activation tests, and visual inspection for physical integrity. Units are packed in anti-static shielding with foam-lined cartons rated for international air and sea freight.

Should a warranty claim arise, TOPNLMS provides a direct replacement dispatch within 5 business days of fault confirmation, with no requirement to return the defective unit before the replacement ships in most cases. Our technical support team — reachable at [email protected] or +86 18359293191 — can assist with installation verification, ToolSuite compatibility queries, and commissioning documentation during the warranty period.

Stock availability is maintained for immediate shipment from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight consolidation options available depending on urgency and destination. Lead time for in-stock units is typically 3–7 business days to most international destinations.

For procurement teams requiring formal documentation, we provide a commercial invoice, packing list, certificate of conformance, and country-of-origin declaration with every shipment. Bulk orders of 3 or more units qualify for priority allocation and dedicated account management.
