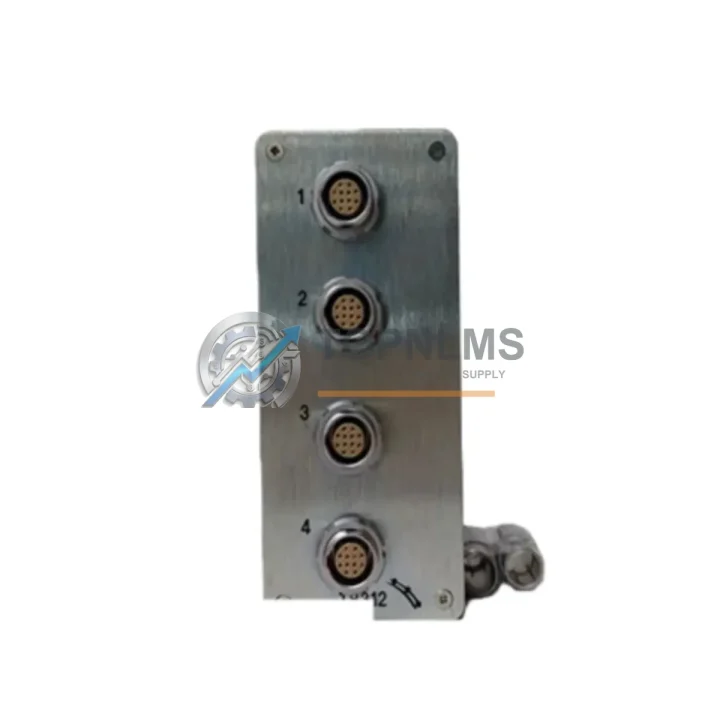

ICS Triplex T8312-7 Ruggedized TMR Interface Module

Product Overview

ICS Triplex T8312-7 Ruggedized TMR Interface Module: Industrial Resilience for Harsh Environments

The ICS Triplex T8312-7 is a Triple Modular Redundancy (TMR) Expander Interface Adapter belonging to the renowned Trusted Series safety platform. Engineered for mission-critical industrial automation environments, this module delivers uncompromising fault tolerance and continuous availability in applications where system failure is simply not an option. Whether deployed in high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, or vibration-intensive heavy manufacturing lines, the T8312-7 maintains deterministic, reliable performance across the full spectrum of industrial hazards.

As a core expansion interface within the Trusted Series architecture, the T8312-7 enables seamless communication between the primary TMR controller chassis and remote I/O expander racks, extending the safety system’s reach without compromising its triple-redundant integrity. Each data path is independently validated across three parallel channels, ensuring that any single-point failure — whether caused by electromagnetic interference, power transients, or component degradation — is automatically detected, isolated, and corrected without interrupting the controlled process.

Rugged Specifications Table

Comprehensive Protection Solutions

The T8312-7 does not operate in isolation — it is the connective backbone that holds a complete Trusted Series safety architecture together. In a typical SIL 3 safety instrumented system (SIS), the T8312-7 interfaces directly with the ICS Triplex T8110 Trusted TMR Controller, which serves as the central processing unit executing the safety logic. Alongside it, T8431 Analog Input Modules and T8461 Digital Output Modules populate the expander chassis, feeding real-time field signals — temperature, pressure, flow, and valve position — back through the T8312-7 interface to the main controller for continuous 2-out-of-3 voting evaluation.

In high-voltage switchgear and motor control center (MCC) environments, the T8312-7 works in concert with T8800 Power Supply Modules to ensure that redundant 24 VDC rail integrity is maintained even during utility power fluctuations or brownout conditions. The system’s inherent fault-tolerant design means that a failed power supply is flagged and isolated while the remaining redundant supply sustains full operation — a critical capability in continuous process industries where unplanned shutdowns carry enormous financial and safety consequences.

For facilities integrating legacy HART field devices or FOUNDATION Fieldbus instrumentation, the T8312-7 expander interface supports coexistence with T8310 Communication Interface Modules, enabling the Trusted Series platform to aggregate data from diverse field protocols without requiring a separate gateway or protocol converter. This reduces panel footprint, simplifies wiring within the control cabinet, and eliminates potential single points of failure introduced by third-party protocol bridges.

In safety relay and emergency shutdown (ESD) applications, the T8312-7 expander interface provides the high-integrity I/O path required to drive T8461 Digital Output Modules connected to solenoid valve actuators, motor contactors, and safety relay coils. The triple-redundant output voting ensures that spurious trips — a persistent concern in high-demand SIS applications — are minimized while genuine hazardous conditions trigger a fast, deterministic shutdown response.

System integrators working with ICS Triplex T8312 base interface adapters will find the T8312-7 variant specifically optimized for extended expander rack distances, making it the preferred choice for large-scale distributed control architectures where the expander chassis may be located in a remote marshalling cabinet or a separate field junction box up to several meters from the main controller rack.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the T8312-7 is deployed in wellhead control panels, pipeline emergency shutdown systems, and compressor station safety logic solvers. Its SIL 3 architecture satisfies the functional safety requirements of IEC 61511, the international standard governing safety instrumented systems in the process industry. Operators in offshore platforms and onshore gas processing terminals rely on the Trusted Series TMR platform — with the T8312-7 as its expander backbone — to maintain continuous protection of high-pressure hydrocarbon processes where a single control failure could result in catastrophic consequences.

In power generation and electrical utilities, the T8312-7 supports turbine protection systems, boiler management systems (BMS), and high-voltage substation automation. Its robust EMI shielding and compliance with IEC 61000 electromagnetic compatibility standards make it suitable for installation in close proximity to high-power switchgear, variable frequency drives (VFDs), and large transformer banks — environments notorious for generating conducted and radiated interference that can corrupt conventional PLC I/O signals.

In mining and mineral processing, where vibration from crushers, conveyors, and heavy rotating equipment is constant, the T8312-7’s mechanical robustness and rack-mount chassis design provide the structural integrity needed to maintain reliable backplane communication. Dust ingress, a persistent challenge in open-pit and underground mining environments, is managed through the sealed chassis design of the Trusted Series rack, protecting the T8312-7 and its companion modules from particulate contamination.

In water and wastewater treatment facilities, the T8312-7 enables safety-rated control of chemical dosing systems, high-lift pump stations, and UV disinfection processes. Its wide humidity tolerance and corrosion-resistant construction make it suitable for the damp, chemically aggressive atmospheres common in water treatment plant control rooms and pump houses.

In metallurgical and steel production environments, where furnace heat radiation, heavy electromagnetic interference from arc furnaces, and mechanical shock from rolling mills create extreme operating conditions, the T8312-7’s TMR architecture provides the fault-tolerant foundation required to maintain continuous, safe operation of critical process control loops.

Security & Quality FAQ

Q1: Does the T8312-7 come with a warranty, and what does it cover?
Yes. Every ICS Triplex T8312-7 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive functional test to verify communication integrity, backplane interface performance, and power rail stability. Our quality assurance process ensures that only fully operational, specification-compliant modules reach our customers.

Q2: How do you verify compatibility with my existing Trusted Series system?
The T8312-7 is designed exclusively for the ICS Triplex Trusted Series TMR platform. It is compatible with Trusted Series expander chassis and controller racks that use the standard Trusted Series backplane and expander bus architecture. If you provide your existing controller part number (e.g., T8110 or T8100 series) and chassis configuration, our technical team can confirm compatibility before you place an order. We recommend cross-referencing the ICS Triplex Trusted Series hardware manual for slot assignment and firmware revision requirements.

Q3: What is your shipping timeline, and do you support urgent replacement orders?
We maintain in-stock inventory of the T8312-7 and can typically ship within 1–3 business days from our Xiamen, China facility. For urgent plant breakdown situations requiring expedited delivery, please contact us directly at [email protected] or +86 18359293191 to discuss express shipping options. We understand that unplanned downtime in safety-critical facilities carries significant operational and financial impact, and we prioritize breakdown replacement orders accordingly.

Q4: Can the T8312-7 be used as a long-term spare part for an aging Trusted Series installation?
Absolutely. The T8312-7 is an ideal long-term spare for facilities operating legacy ICS Triplex Trusted Series safety systems that may no longer be supported by the original manufacturer’s standard supply chain. TOPNLMS specializes in sourcing, testing, and supplying obsolete and hard-to-find industrial automation components, ensuring that your existing safety architecture can be maintained and extended without requiring a costly full-system replacement. Our stock is regularly replenished and each unit is individually tested before dispatch.
