ICS Triplex T8100 Replacement for Trusted Controller Series

Product Overview

ICS Triplex T8100 Replacement for Trusted Controller Series: Seamless Migration & Upgrade Solution

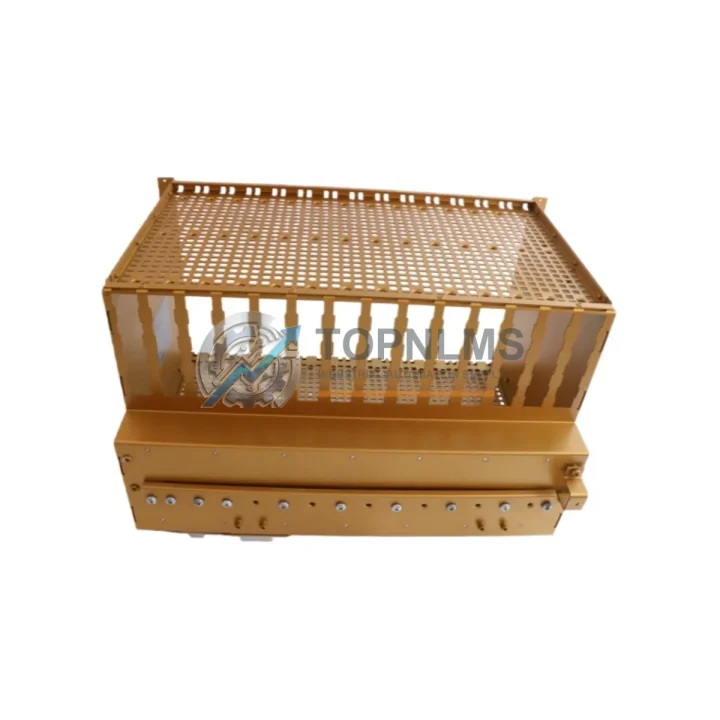

The ICS Triplex T8100 TMR (Triple Modular Redundant) Safety Controller Chassis is a cornerstone of SIL 3-certified safety instrumented systems deployed across oil & gas, petrochemical, power generation, and offshore platform environments. As aging Trusted Controller installations approach end-of-life or face obsolescence, engineering teams require a verified, drop-in replacement chassis that preserves existing wiring infrastructure, I/O module compatibility, and safety logic without forcing a full system redesign. TOPNLMS supplies the T8100 chassis as a direct replacement and upgrade solution, backed by pre-shipment functional testing, full documentation, and a 12-month warranty.

The T8100 chassis serves as the mechanical and electrical backbone of the ICS Triplex Trusted Controller platform. It houses the TMR processor modules, power supply modules, and I/O modules within a standardized rack form factor. When replacing a failed or end-of-life T8100 chassis, engineers can retain existing T8110 TMR Processor Modules, T8120 Power Supply Modules, and the full complement of T8190-series analog and digital I/O modules already installed in the field — dramatically reducing retrofit scope, engineering hours, and plant downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful T8100 chassis migration rarely involves the chassis alone. In practice, field engineers conducting a Trusted Controller system overhaul will simultaneously evaluate the condition of the T8110 TMR Processor Module — the computational core responsible for executing the safety application and managing the three independent processing legs. If the processor module shows signs of degradation or firmware incompatibility, it is replaced alongside the chassis to restore full TMR voting integrity.

Power continuity is equally critical. The T8120 and T8121 Power Supply Modules feed redundant power rails to the chassis backplane. During a chassis swap, it is standard practice to inspect and, where necessary, replace these modules to eliminate latent power faults that could compromise the new chassis installation. Similarly, the T8190 Analog Input Module and T8194 Digital Input Module — which interface directly with field sensors, pressure transmitters, and valve position feedback — are tested in-situ and replaced if calibration drift or contact wear is detected.

Communication continuity is maintained through the existing Modbus TCP or Modbus RTU network without requiring a protocol gateway or converter. However, if the site is migrating from a legacy serial Modbus RTU topology to an Ethernet-based SCADA architecture, a T8830 Communication Module or equivalent Ethernet interface card may be introduced into the chassis during the same maintenance window — a common practice in brownfield modernization projects that avoids a second planned outage.

For sites where the T8100 chassis is installed within a larger Trusted Controller rack assembly alongside a T8800 series Fieldbus Interface Module, the chassis replacement is coordinated with a rack-level inspection to verify backplane connector integrity and slot alignment. Control cabinet space constraints are rarely an issue given the T8100’s standardized form factor, but engineers should verify DIN rail mounting clearances and cable management routing before the replacement unit arrives on-site.

Where the legacy system also includes a T8480 Analog Output Module driving final control elements such as control valves or variable speed drives, output signal continuity testing is performed post-installation to confirm that the new chassis backplane correctly passes analog signals without offset or noise. This step is particularly important in SIL 3 loops where output accuracy directly affects safety function performance.

TOPNLMS maintains stock of the T8100 chassis and commonly associated Trusted Controller components, enabling consolidated procurement that reduces lead time, simplifies logistics, and supports a single-window warranty claim process across all supplied items.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the T8100 chassis?
A: No. The T8100 chassis replacement does not alter the field wiring interface. All field connections are made at the I/O module terminal level (T8190-series), which remains in place. The chassis swap is a backplane-level operation; field cables are disconnected only from the I/O modules if those modules are also being replaced.

Q: Will my existing SIL 3 safety application need to be reloaded or reprogrammed?
A: The safety application resides on the T8110 TMR Processor Module, not on the chassis itself. If the processor module is retained, the application logic is preserved. A reload from the engineering workstation is only required if the processor module is also replaced or if a firmware upgrade is performed during the same maintenance window.

Q: Is the Modbus TCP/RTU communication configuration affected by the chassis replacement?
A: No. Communication parameters are stored in the processor module and communication interface cards, not in the chassis backplane. After the chassis swap, the Modbus node address, baud rate, and register mapping remain unchanged, and the SCADA or DCS host system will reconnect without reconfiguration.

Q: How much physical space does the T8100 chassis require in the control cabinet?
A: The T8100 chassis dimensions are identical to the original unit. No cabinet modification, additional DIN rail space, or enclosure extension is required. Verify that existing cable management trays and conduit entries provide adequate clearance for the chassis removal and reinstallation procedure.

Q: Can the T8100 chassis be replaced while the plant is operating (hot swap)?
A: The T8100 chassis is not designed for energized hot-swap replacement. A planned shutdown of the associated safety loop is required. However, the TMR architecture allows the system to continue operating in degraded (2oo3 or 1oo3) voting mode during the maintenance window if the site’s safety management system permits, subject to a formal risk assessment and permit-to-work procedure.

Q: What testing is performed before shipment?
A: Each T8100 chassis supplied by TOPNLMS undergoes pre-shipment functional verification including backplane continuity testing, slot connector inspection, and power rail integrity checks. A test report is available upon request. Units are packed in anti-static, shock-protected packaging suitable for international air or sea freight.

Warranty Assurance

Every ICS Triplex T8100 chassis supplied by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. This warranty covers manufacturing defects, backplane failures, and functional non-conformance identified during incoming inspection at the customer’s facility. If a unit fails within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund, subject to a return material authorization (RMA) process.

Pre-shipment testing is conducted on every unit before dispatch. Customers receive a packing list, test confirmation, and — where available — original manufacturer documentation. Standard lead time from order confirmation to shipment is 3–7 business days for in-stock units, with express air freight options available for urgent plant shutdowns or emergency replacements.

TOPNLMS operates from Xiamen, China, with established logistics routes to customers in Southeast Asia, the Middle East, Europe, and the Americas. All export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared in compliance with international trade requirements. For time-critical orders, DHL Express and FedEx Priority services are available with typical transit times of 3–5 business days to major industrial hubs.

Our after-sales support team responds to technical inquiries within 24 hours on business days. For complex retrofit projects requiring compatibility verification, wiring diagram review, or multi-item procurement planning, our engineering support team is available to assist at no additional charge.
