ICS TRIPLEX T3480 Replacement Solution for Trusted TMR

Product Overview

ICS TRIPLEX T3480 Replacement Solution for Trusted TMR: Smooth Transition from Legacy Analog Output to Verified Spare

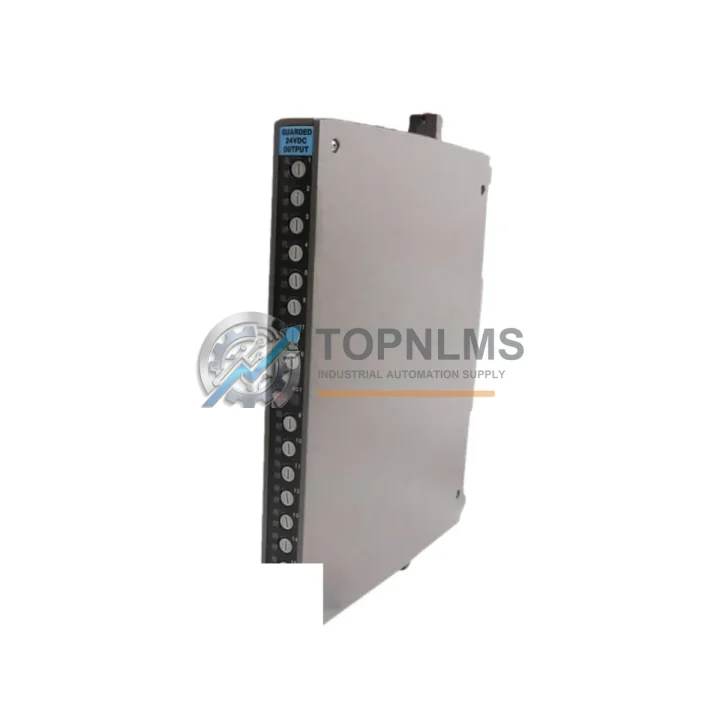

The ICS TRIPLEX T3480 is a Guarded Analog Output Module designed for operation within the Trusted™ Triple Modular Redundant (TMR) safety control platform. Deployed extensively in oil and gas processing, petrochemical refining, power generation, and offshore installations, the T3480 provides SIL-rated analog output channels used to drive final control elements — including control valves, positioners, and variable-speed drives — directly from the safety logic solver. For facilities managing aging Trusted™ TMR installations, sourcing a verified T3480 replacement is a critical step in maintaining both process safety and operational continuity.

At TOPNLMS, we maintain ready stock of the T3480 with pre-shipment functional testing, full traceability documentation, and worldwide dispatch from Xiamen. Every unit is covered by a 12-month warranty and can be shipped within 1–3 business days of order confirmation via DHL Express or FedEx International Priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing or upgrading the T3480 within a Trusted™ TMR installation is rarely a standalone action. Experienced control system engineers understand that a successful analog output module migration requires a coordinated review of the surrounding hardware and wiring infrastructure to ensure the replacement proceeds without introducing new failure modes or commissioning delays.

The T3480 interfaces directly with the Field Termination Assembly (FTA) specific to the Trusted™ analog output family. Before installing a replacement T3480, the FTA connector and terminal block integrity should be verified — corroded or loose terminals are a common source of post-replacement loop calibration errors that are incorrectly attributed to the new module.

The T8110B Safety Processor Module governs all output commands sent to the T3480 via the TMR backplane. When upgrading the T3480, it is advisable to confirm that the processor firmware revision is compatible with the replacement module’s hardware revision. Mismatched revisions can cause diagnostic suppression or output channel inhibit conditions that are difficult to trace without access to the Trusted™ engineering workstation.

Power delivery to the T3480 is routed through the T8800 series Power Supply Modules. A migration event is an ideal opportunity to verify that the power supply output voltage and load capacity remain within specification, particularly in chassis configurations where additional I/O modules have been added since the original system commissioning.

For facilities also managing analog input channels, the T3431 and T3451 Analog Input Modules share the same Trusted™ backplane architecture and FTA wiring conventions as the T3480. If the T3480 replacement is being performed as part of a broader I/O module refresh, scheduling the analog input module inspection concurrently reduces total chassis downtime and simplifies the loop testing phase.

The T3401 and T3403 Digital Output Modules installed in the same chassis should also be reviewed during a T3480 replacement event. Digital output channels driving solenoid valves and shutdown actuators operate in close coordination with the analog output channels, and a comprehensive output module audit during a planned maintenance window is more cost-effective than addressing each module type in separate maintenance events.

For systems communicating with a DCS or SCADA layer, the T8461 Communication Interface Module — supporting Modbus RTU, PROFIBUS DP, or OPC — should be checked for communication error accumulation and firmware compatibility with the current T8110B processor revision. Communication faults that develop during an I/O module replacement can mask genuine process alarms in the hours following recommissioning.

Finally, the Trusted™ programming and configuration cable used to connect the engineering workstation to the chassis diagnostic port should be verified before beginning any module replacement. A degraded cable can prevent the post-replacement loop test and channel verification steps from completing successfully, extending the commissioning window unnecessarily.

TOPNLMS can supply the T3480 alongside associated Trusted™ TMR components — including processor modules, power supplies, I/O modules, and communication interfaces — from a single source, simplifying procurement and reducing lead time risk for multi-component upgrade projects.

Retrofit Guidance FAQ

Q1: Does replacing the T3480 require field rewiring or changes to the existing termination assembly?
No. The T3480 uses the same Field Termination Assembly (FTA) as its predecessor revisions. A direct module swap does not require field rewiring, provided the FTA connectors and terminal blocks are in good condition. TOPNLMS recommends inspecting FTA connector integrity before installing the replacement module to avoid post-installation loop calibration issues.

Q2: Can the T3480 be replaced while the Trusted™ TMR system remains online?
Yes. The Trusted™ TMR architecture supports hot-swap replacement at the I/O module level. The affected output channels are inhibited via the engineering workstation, the module is extracted and replaced, and the new T3480 synchronizes with the TMR system automatically. Full output channel functionality is restored without a process trip. This procedure must be performed by a qualified Trusted™ system engineer following the ICS TRIPLEX maintenance manual.

Q3: How do I verify firmware and hardware revision compatibility between the replacement T3480 and my installed T8110B processor?
Compatibility is confirmed by cross-referencing the hardware revision label on the T3480 module with the Trusted™ system compatibility matrix for your installed T8110B firmware version. Contact TOPNLMS with your existing module revision information and T8110B firmware version, and we will confirm compatibility before shipment. We do not ship modules with known revision incompatibilities.

Q4: What physical space and chassis slot requirements apply to the T3480 replacement?
The T3480 occupies a standard Trusted™ T8100 series chassis slot. No chassis modification or slot reconfiguration is required for a direct replacement. The module dimensions and backplane connector are identical across T3480 hardware revisions, ensuring physical compatibility with all T8100 series chassis generations currently in service.

Warranty Assurance

Every T3480 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failure on arrival (DOA), and operational faults arising under normal installation and operating conditions consistent with the Trusted™ TMR platform specifications.

Pre-shipment testing is performed on every unit. Each T3480 is functionally verified prior to dispatch and shipped with an inspection report confirming test results. Export packaging is designed for international air freight, with anti-static protection and shock-resistant outer packaging to ensure the module arrives in field-ready condition.

In the event of a warranty claim, contact [email protected] with your order reference number and a description of the fault. Warranty claims are acknowledged within 24 hours and resolved — by replacement or refund — within 5 business days of fault confirmation. TOPNLMS maintains replacement stock specifically to support warranty exchange requests without extended lead times.

For urgent replacement requirements, TOPNLMS offers priority dispatch with DHL Express and FedEx International Priority, with standard lead time from order confirmation to dispatch of 1–3 business days. Volume procurement and strategic buffer stock orders are supported with dedicated account management and site-specific spare parts quotations.
