GE IC600BF841 Ruggedized Analog Input Module Harsh Environments

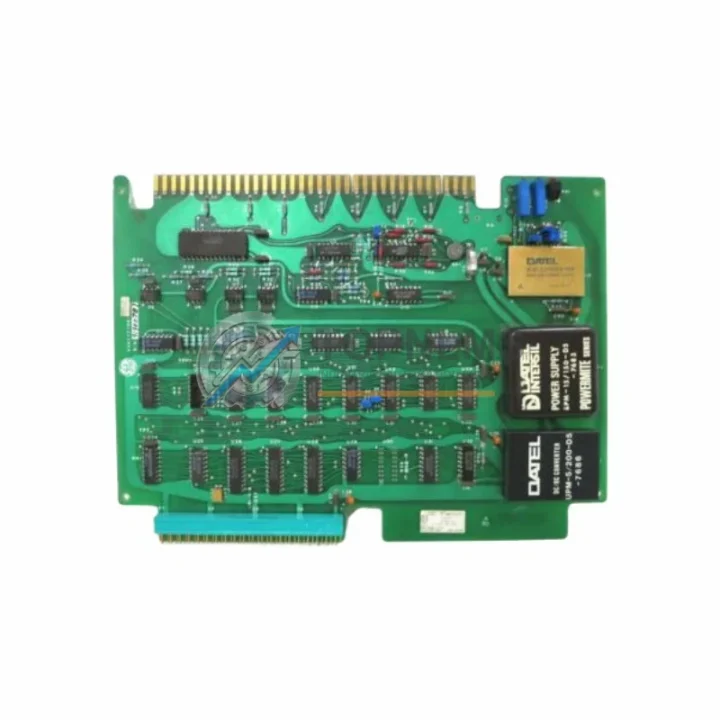

The GE Fanuc IC600BF841 is a 12-bit analog input module engineered for the GE Series Six programmable logic controller platform — one of the most field-proven PLC architectures deployed across heavy industry worldwide. Designed to deliver precise, noise-immune analog signal acquisition in environments where most electronics fail, the IC600BF841 continues to serve as a mission-critical I/O component in oil and gas processing plants, power generation facilities, water treatment stations, metallurgical operations, and continuous manufacturing lines.

Industrial automation systems operating in harsh environments face a relentless combination of threats: ambient temperatures that swing from sub-zero cold starts to sustained high-heat operation near furnaces or compressors; pervasive electromagnetic interference generated by variable frequency drives, large motor starters, and high-current bus bars; mechanical vibration transmitted through steel structures and rotating machinery; airborne particulates including metal dust, coal fines, and chemical aerosols; and high-humidity or condensation-prone atmospheres in coastal, underground, or process-wet installations. The IC600BF841 is built to withstand all of these conditions simultaneously, maintaining signal integrity and scan-cycle reliability without requiring derating or special enclosure treatment beyond standard IP54 or NEMA 12 control cabinet practices.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC600BF841 does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical Series Six installation, the module shares a rack with the GE IC600CP640 CPU module, which handles ladder logic execution and coordinates all I/O scan cycles. Discrete field signals are managed by companion modules such as the IC600BF900 digital input module and the IC600BF910 digital output module, while process control loops requiring analog output drive are handled by the IC600BF831 analog output module. Together, these modules form a complete closed-loop control system capable of managing complex multi-variable processes.

Power integrity is foundational to analog accuracy. The IC600BF841’s 12-bit resolution is only as reliable as the power supply feeding the rack. GE Series Six installations typically rely on the IC600PM500 power supply module to deliver clean, regulated DC power to the backplane, suppressing ripple that would otherwise introduce noise into low-level analog measurements. In high-vibration environments such as compressor stations or rolling mills, the power supply and all I/O modules benefit from proper DIN-rail mounting with vibration-damping hardware inside the control cabinet.

For facilities that have migrated portions of their control architecture to newer GE platforms, the IC600BF841 frequently coexists with GE RX3i PACSystems components through gateway communication modules. The IC695CMM002 communications module or similar serial interface cards can bridge legacy Series Six racks to modern Ethernet-based supervisory systems, preserving the investment in proven analog I/O hardware while enabling integration with SCADA, historian, and MES layers. In safety-instrumented system (SIS) architectures, the analog inputs from the IC600BF841 feed into safety relay modules and emergency shutdown (ESD) logic, where signal accuracy directly determines whether a process trip is triggered correctly or suppressed inappropriately.

Terminal block assemblies and field wiring accessories — including shielded twisted-pair cables, ferrite cores, and surge protection terminal modules — are essential companions to the IC600BF841 in EMI-intensive environments. Proper cable segregation, grounding of cable shields at a single point, and the use of isolated signal conditioners between field transmitters and the module inputs are standard practices that preserve the module’s native noise immunity and extend its service life in chemically aggressive or high-humidity atmospheres.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the IC600BF841 monitors pressure transmitters, flow meters, and temperature sensors across wellhead control panels, compressor skids, and pipeline SCADA outstations. Its optical isolation prevents ground loops that are endemic in geographically distributed field installations, and its wide operating temperature range accommodates both arctic pipeline environments and desert processing facilities.

In electric power generation and substation automation, the module acquires analog signals from current transformers, voltage transducers, and generator excitation feedback circuits. The 12-bit resolution provides sufficient granularity for power quality monitoring and automatic voltage regulation (AVR) feedback loops, where a 0.025% full-scale resolution translates directly into tighter voltage control bands and reduced wear on tap-changer mechanisms.

In mining and mineral processing, the IC600BF841 is deployed in conveyor belt tension monitoring systems, flotation cell level control, and crusher load management. These environments combine extreme vibration, conductive dust, and high-current motor interference — precisely the conditions the module’s ruggedized design addresses. Replacement cycles in mining are driven by production schedules rather than module failure, making the availability of tested, warranted spare units a critical procurement consideration.

In water and wastewater treatment, the module interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and pump flow transmitters. Municipal utilities operating 24/7 continuous processes depend on the long-term availability of legacy PLC spare parts to avoid costly control system migrations during active treatment operations. The IC600BF841’s continued availability as a stocked spare part directly supports plant uptime and regulatory compliance.

In steel and metallurgical plants, the module operates in the presence of intense electromagnetic fields from arc furnaces and induction heaters, as well as thermal radiation from casting and rolling operations. Its EMI immunity and thermal tolerance make it one of the few legacy analog input solutions that can be deployed without additional signal conditioning in these environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the GE Series Six hardware reference manual. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order number and a description of the failure mode. Return shipping instructions are provided within one business day.

Q2: How is each IC600BF841 unit tested before shipment?
Every unit undergoes functional verification on a live Series Six rack prior to dispatch. Testing includes channel-by-channel analog input accuracy checks across the full input range (0–10 V, 4–20 mA), backplane communication handshake verification, and visual inspection for physical damage, corroded contacts, or compromised conformal coating. Units that do not pass all test criteria are quarantined and not offered for sale.

Q3: Is the IC600BF841 compatible with all GE Series Six rack configurations?
Yes. The IC600BF841 is compatible with all standard GE Series Six CPU racks and remote I/O expansion racks that support the Series Six parallel backplane bus. It is slot-position independent within the rack and does not require special configuration beyond the standard I/O address assignment in the CPU’s configuration table. Compatibility with specific CPU firmware revisions should be confirmed against the GE Series Six hardware compatibility matrix for installations using very early or very late firmware versions.

Q4: Can TOPNLMS support long-term or recurring supply of the IC600BF841 for maintenance contracts?
Yes. TOPNLMS maintains ongoing sourcing relationships for GE Fanuc Series Six components and can support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. For facilities managing multi-year maintenance contracts or plant turnaround schedules, we recommend contacting our team in advance to reserve stock allocation. Long-term supply agreements are available for qualified industrial buyers.
