Hypertherm PCI-4 AXIS MCC 3.3V Replacement for EDGE Pro

Product Overview

Hypertherm PCI-4 AXIS MCC 3.3V Replacement for EDGE Pro: Smooth Transition & Legacy System Compatibility

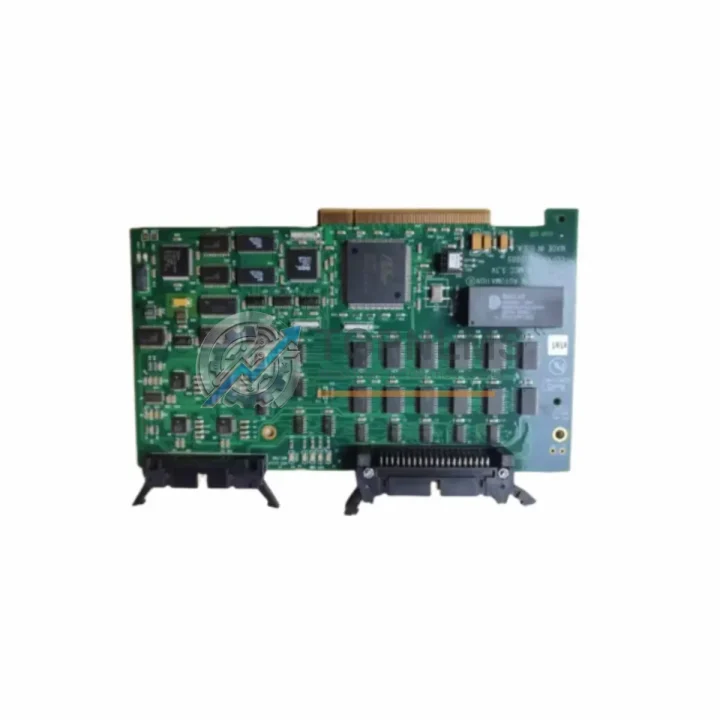

The Hypertherm PCI-4 AXIS MCC 3.3V is the core motion control card used in Hypertherm EDGE Pro CNC plasma cutting systems. As this card reaches end-of-life and becomes increasingly difficult to source through standard distribution channels, many plasma cutting operations face unplanned downtime when the original card fails or degrades. TOPNLMS supplies verified replacement and upgrade units of the PCI-4 AXIS MCC 3.3V, enabling your EDGE Pro system to resume full 4-axis coordinated motion without requiring a full controller replacement or software migration.

This replacement card is designed to slot directly into the existing PCI slot of the EDGE Pro controller chassis. The 3.3V PCI bus interface is electrically compatible with the original EDGE Pro motherboard, and the axis output signals — Step/Direction for X, Y, Z, and A axes — maintain the same pinout and signal levels as the factory-installed card. Engineers performing the swap do not need to re-terminate field wiring at the drive interface or reconfigure axis parameters in the EDGE Pro software, significantly reducing retrofit labor and commissioning time.

In many EDGE Pro installations, the PCI-4 AXIS MCC 3.3V works alongside the Hypertherm EDGE Pro THC (Torch Height Control) module, which manages the Z-axis lifter and arc voltage feedback independently of the motion card. When replacing the MCC, it is important to verify that the THC module’s serial or analog interface to the EDGE Pro controller remains intact. In most cases, the THC wiring and configuration survive the MCC swap without modification, allowing the torch height control loop to resume normal operation immediately after the replacement card is seated and the system is powered on.

For systems that also use the Hypertherm EDGE Pro I/O expansion board to manage plasma start signals, limit switch inputs, and auxiliary relay outputs, the replacement MCC card communicates with the I/O board through the same internal bus architecture. No re-mapping of I/O addresses is required when the replacement card is installed in the same PCI slot as the original. Operators should confirm that the EDGE Pro software version installed on the controller PC is compatible with the replacement card’s firmware revision — in most cases, EDGE Pro software versions 8.x and later are fully compatible.

Many facilities running older EDGE Pro systems also have Hypertherm Powermax plasma power supplies — such as the Powermax 65, Powermax 85, or Powermax 105 — connected via the CPC port or RS-485 interface. The motion control card replacement does not affect the communication path between the EDGE Pro controller and the Powermax unit, as that interface is managed by the EDGE Pro software and the serial communication port on the controller PC, not by the MCC card itself. After the MCC replacement, plasma start, stop, and fault signals should be verified at the I/O board level before resuming production cuts.

In retrofit scenarios where the EDGE Pro controller PC is also being upgraded — for example, migrating from a legacy Windows XP or Windows 7 industrial PC to a newer platform — the PCI-4 AXIS MCC 3.3V replacement card must be installed in a system that provides a physical 3.3V-compatible PCI slot. Modern industrial PCs with PCIe-only slots are not directly compatible. In such cases, a PCI-to-PCIe bridge adapter may be required, or the upgrade path may involve transitioning to a newer Hypertherm controller platform such as the EDGE Connect, which uses a different motion architecture. TOPNLMS can advise on the appropriate migration path based on your existing hardware configuration.

For multi-table or multi-zone cutting facilities running several EDGE Pro systems, maintaining a spare PCI-4 AXIS MCC 3.3V card in inventory is a standard best practice. A single card failure can halt an entire cutting table, and lead times for sourcing original Hypertherm spare parts through authorized channels can extend to several weeks. TOPNLMS maintains stock of tested replacement units and can ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, or UPS Worldwide Expedited options available to minimize total downtime.

Each replacement PCI-4 AXIS MCC 3.3V unit supplied by TOPNLMS undergoes functional verification prior to shipment, including axis signal output testing and PCI bus enumeration checks. Units are shipped in anti-static packaging with inspection documentation. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides advance replacement support to minimize production interruption — a replacement unit is dispatched before the defective unit is returned, subject to deposit arrangement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EDGE Pro motion control card replacement rarely involves the MCC card alone. In most field retrofit scenarios, engineers also inspect and — where necessary — replace adjacent components to ensure the upgraded system operates reliably. The Hypertherm EDGE Pro THC (Torch Height Control) module is the most commonly co-replaced component, as it shares the controller chassis and is subject to the same environmental stresses — heat cycling, vibration, and plasma arc interference — that degrade the MCC card over time.

The EDGE Pro I/O expansion board manages all discrete signal interfaces between the CNC controller and the cutting table: limit switches, home sensors, plasma start relays, and auxiliary outputs. When performing an MCC replacement, it is good practice to inspect the I/O board’s terminal blocks and ribbon cable connectors for corrosion or loose terminations, as these are common sources of intermittent faults that can be misdiagnosed as motion card failures.

For facilities upgrading the controller PC at the same time as the MCC card, the EDGE Pro software dongle and license must be transferred to the new PC. The Hypertherm EDGE Pro software installation package, combined with the replacement MCC card, allows the new PC to assume full control of the cutting table without re-teaching axis parameters from scratch — provided the machine configuration file is backed up from the original system before decommissioning.

In systems where the A-axis is used to drive a bevel cutting head or a rotary tube cutting attachment, the Step/Direction signals from the MCC card feed into a dedicated servo drive or stepper driver for the rotary axis. After the MCC replacement, the A-axis drive parameters — including step resolution, direction polarity, and acceleration ramp — should be verified against the original machine configuration to ensure bevel angle accuracy is maintained.

Facilities that operate Hypertherm Powermax 65, Powermax 85, Powermax 105, or Powermax 125 plasma power supplies connected to the EDGE Pro system should verify the CPC (Computer Port Connector) cable integrity after the MCC swap. While the CPC interface is independent of the motion card, the physical disturbance of opening the controller chassis and reseating cards can occasionally dislodge the CPC cable connector at the controller PC’s serial port bracket. A quick continuity check on the CPC cable before resuming production prevents nuisance faults.

For operations that are simultaneously upgrading their cutting software from EDGE Pro to a newer platform such as Hypertherm ProNest or a third-party CAM/nesting solution, the PCI-4 AXIS MCC 3.3V replacement card provides a cost-effective bridge: it restores the existing EDGE Pro system to full operation while the software migration is planned and tested in parallel, avoiding the pressure of performing both hardware and software changes simultaneously under production downtime constraints.

Retrofit Guidance FAQ

Q: Do I need to re-terminate any field wiring when replacing the PCI-4 AXIS MCC 3.3V?
A: No. The replacement card uses the same Step/Direction output pinout as the original. All axis drive cables connected to the EDGE Pro controller’s breakout terminals remain in place. Only the internal PCI card is swapped.

Q: Will my EDGE Pro software settings and machine configuration be preserved?
A: Yes. Machine configuration parameters — axis scaling, acceleration, soft limits, and I/O mapping — are stored in the EDGE Pro software installation on the controller PC, not on the MCC card itself. Replacing the card does not erase these settings. It is still recommended to back up the machine configuration file before performing any hardware maintenance.

Q: Is the replacement card compatible with all EDGE Pro software versions?
A: The replacement PCI-4 AXIS MCC 3.3V is compatible with EDGE Pro software versions 8.x and later. If your system runs an earlier version, contact TOPNLMS before ordering to confirm compatibility with your specific software revision.

Q: Can I use this card in a PCIe-only industrial PC?
A: The PCI-4 AXIS MCC 3.3V requires a physical 3.3V PCI slot. It is not directly compatible with PCIe slots. If your replacement controller PC does not have a PCI slot, a PCI-to-PCIe adapter card may be required. TOPNLMS can advise on tested adapter options for EDGE Pro applications.

Q: How long does installation and commissioning typically take?
A: For an experienced CNC technician familiar with the EDGE Pro system, the physical card swap takes approximately 30–60 minutes. Axis verification and test cuts typically add another 1–2 hours. Total downtime for a straightforward replacement is generally under half a shift.

Q: What if the replacement card does not resolve the motion fault?
A: If axis faults persist after the MCC replacement, the issue may lie in the servo or stepper drives, the breakout terminal board, or the axis motor feedback wiring rather than the motion card itself. TOPNLMS technical support can assist with fault isolation guidance. If the replacement card is confirmed non-defective and the fault is traced to another component, the card remains eligible for return under our warranty policy.

Warranty Assurance

Every PCI-4 AXIS MCC 3.3V replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failures and manufacturing defects under normal operating conditions in industrial CNC environments.

Pre-shipment testing: Each unit undergoes PCI bus enumeration verification and axis signal output testing before packaging. A test report is available upon request.

Packaging: Units are shipped in anti-static bags with foam cushioning inside double-wall cartons, suitable for international air freight handling.

Advance replacement support: For customers with active production requirements, TOPNLMS offers advance replacement — a verified unit is dispatched before the defective unit is returned, subject to a refundable deposit. This minimizes the total downtime window to the shipping transit time rather than the full round-trip warranty cycle.

After-sales response: Warranty claims and technical inquiries are responded to within 1 business day. TOPNLMS maintains English and Chinese-language technical support for international customers.

Shipping options: DHL Express (2–4 days), FedEx International Priority (2–5 days), and UPS Worldwide Expedited (3–5 days) are available from Xiamen, China. Tracking numbers are provided on the day of shipment.

Purchasing assurance: TOPNLMS accepts T/T bank transfer, PayPal, and Western Union. Proforma invoices are issued for all orders. Customs documentation including commercial invoice, packing list, and certificate of origin is provided for all international shipments.
